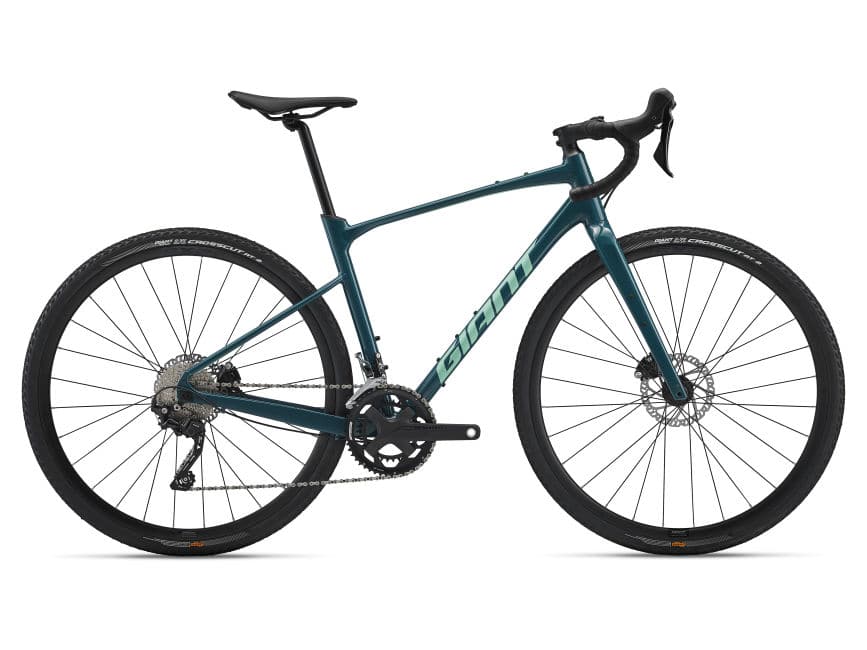

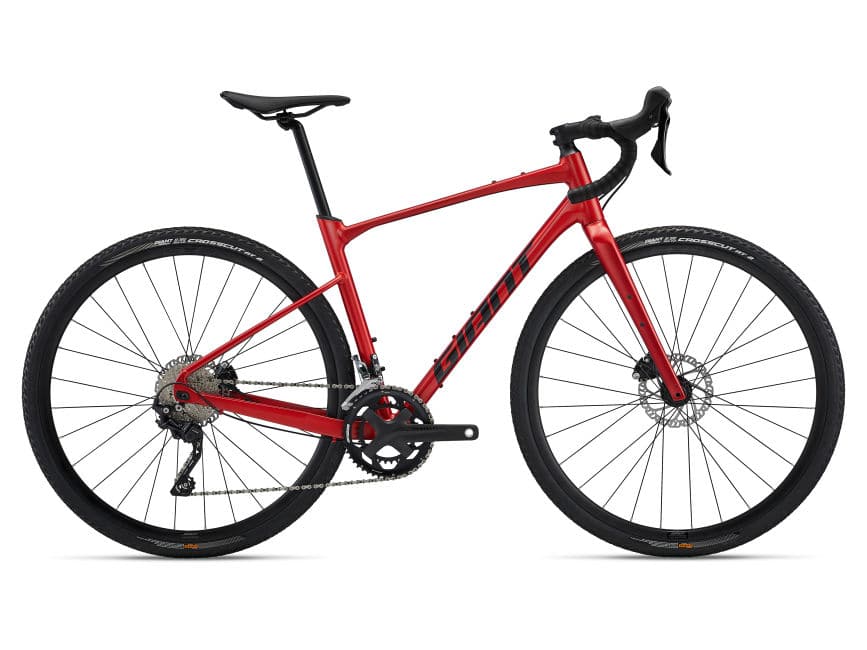

Giant Revolt 1
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability
- Sku: 2202004124
- Available: Instock
- Collections: Bikes, Giant, Gravel & Adventure Bikes, Gravel Bikes
- Type: Gravel Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Pairs well with
Giant Revolt 1 is made for rides where you want a dependable gravel bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frame Material: ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout, Shifters: Shimano GRX-RX400 HRD, and Front Derailleur: Shimano Tiagra. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable gravel bike
- Brand: Giant
- Category: Gravel Bikes
- Frame Material: ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
- Shifters: Shimano GRX-RX400 HRD
- Front Derailleur: Shimano Tiagra
- Rear Derailleur: Shimano GRX RX-400
- Brakes: Shimano BR-RX400 HRD
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frame Material | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout |
|---|---|
| Fork | Advanced-Grade Composite, Full-Composite OverDrive one Steerer, 12x100mm thru-axle, flat mount disc |
| Shifters | Shimano GRX-RX400 HRD |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano GRX RX-400 |
| Brakes | Shimano BR-RX400 HRD |
| Crankset | FSA Omega Adventure, 32/48 |
| Rims | Giant S-X2 Disc 700C wheelset Front / Rear thru axle |
| Component | Specification | Frame size(s) |
|---|---|---|
| Sizes | S,M,L | |
| Colours | Deep Lake,Grenadine | |
| Frame Material | ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout | |
| Tire | Giant CrossCut AT 2 Tubeless, 700x38C | |
| Tire Size | 700C | |
| Tire Size - Measuring Unit | MM | |
| Gear | 20 | |
| Fork | Advanced-Grade Composite, Full-Composite OverDrive one Steerer, 12x100mm thru-axle, flat mount disc | |
| Stem | Giant Contact, 8 Degree | |
| Headset | A66ACML H=15.7 wo LG | |
| Front Derailleur | Shimano Tiagra | |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm | |
| Seatpost | Giant D-Fuse Composite Offset 14mm | |
| Shifters | Shimano GRX-RX400 HRD | |
| Rear Derailleur | Shimano GRX RX-400 | |
| Grip | Cork Tape w/ Gel VLT-001G | |
| Crankset | FSA Omega Adventure, 32/48 | |
| Saddle | GIANT Approach with GIANT patented UniClip & ParticleFlow technology | |
| Pedals | GA,Pan-Eu: no pedal, GU,GV,GJ:Platform pedal Rest GSC :Pedal w/Toe clip and strape | |
| Brakes | Shimano BR-RX400 HRD | |
| Hubs | Giant S-X2 Disc 700C wheelset Front / Rear thru axle | |
| Cassette | Shimano HG500, 11x34 | |
| Brake levers | Shimano BR-RX400 HRD | |
| Spoke | Giant S-X2 Disc 700C wheelset Front / Rear thru axle | |
| Chain | KMC X10 with Missing Link | |
| Rims | Giant S-X2 Disc 700C wheelset Front / Rear thru axle | |
| Bottom Bracket | FSA Mega EXA | |
| Domestic Warranty | 1 | |
| Domestic Warranty - Measuring Unit | Year | |
| International Warranty | 1 | |
| International Warranty - Measuring Unit | Year | |
| Sales Package | Cycle | |
| Ideal For | All Cycling Enthusiast |
| Size | Rider height |
|---|---|
| XS | 155-166 cm |
| S | 159-171 cm |
| M | 169-181 cm |
| ML | 174-186 cm |
| L | 179-191 cm |
| XL | 189-200 cm |
| Measurement | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 430 | 450 | 470 | 490 | 510 | 530 |
| B Seat Tube Angle (degrees) | 74° | 73.5° | 73.5° | 73° | 73° | 73° |
| C Top Tube Length (mm) (inch) | 540 | 550 | 560 | 575 | 585 | 600 |
| D Head Tube Length (mm) (inch) | 125 | 135 | 150 | 165 | 180 | 195 |
| E Head Tube Angle (degrees) | 70° | 71° | 71.5° | 72° | 72° | 72° |
| F Fork Rake (mm) (inch) | 50 | 50 | 50 | 50 | 50 | 50 |
| G Trail (mm) (inch) | 78 | 82 | 72 | 75 | 68 | 72 | 65 | 68 | 65 | 68 | 65 | 68 |
| H Wheelbase (mm) (inch) | 1029 | 1039 | 1025 | 1035 | 1030 | 1040 | 1035 | 1045 | 1045 | 1055 | 1061 | 1071 |
| I Chain Stay Length (mm) (inch) | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 | 430 | 440 |
| J Bottom Bracket Drop (mm) (inch) | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 | 80 | 81 |
| K Stack (mm) (inch) | 556 | 570 | 586 | 602 | 616 | 630 |
| L Reach (mm) (inch) | 381 | 381 | 387 | 391 | 397 | 407 |
| M Stand Over Height (mm) (inch) | 717 | 724 | 734 | 741 | 752 | 759 | 769 | 776 | 786 | 793 | 801 | 810 |
| N Handlebar Width (mm) (inch) | 420 | 420 | 440 | 440 | 460 | 460 |
| O Stem Length (mm) (inch) | 70 | 80 | 90 | 100 | 100 | 110 |
| P Crank Length (mm) (inch) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q Wheel Size | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C | 700x 42C | 50C |
