Marin DSX 2
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability
- Sku: 732423001
- Available: Instock
- Collections: Bikes, Gravel & Adventure Bikes, Hybrid Bikes, Marin
- Type: Hybrid Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Pairs well with
Marin DSX 2 is made for rides where you want a dependable hybrid bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets, Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring, and Cassette: Shimano Deore, CS-M6100, 12-Speed, 10-51T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable hybrid bike
- Brand: Marin
- Category: Hybrid Bikes
- Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
- Cassette: Shimano Deore, CS-M6100, 12-Speed, 10-51T
- Brake Front: Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
- Brake Rear: Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

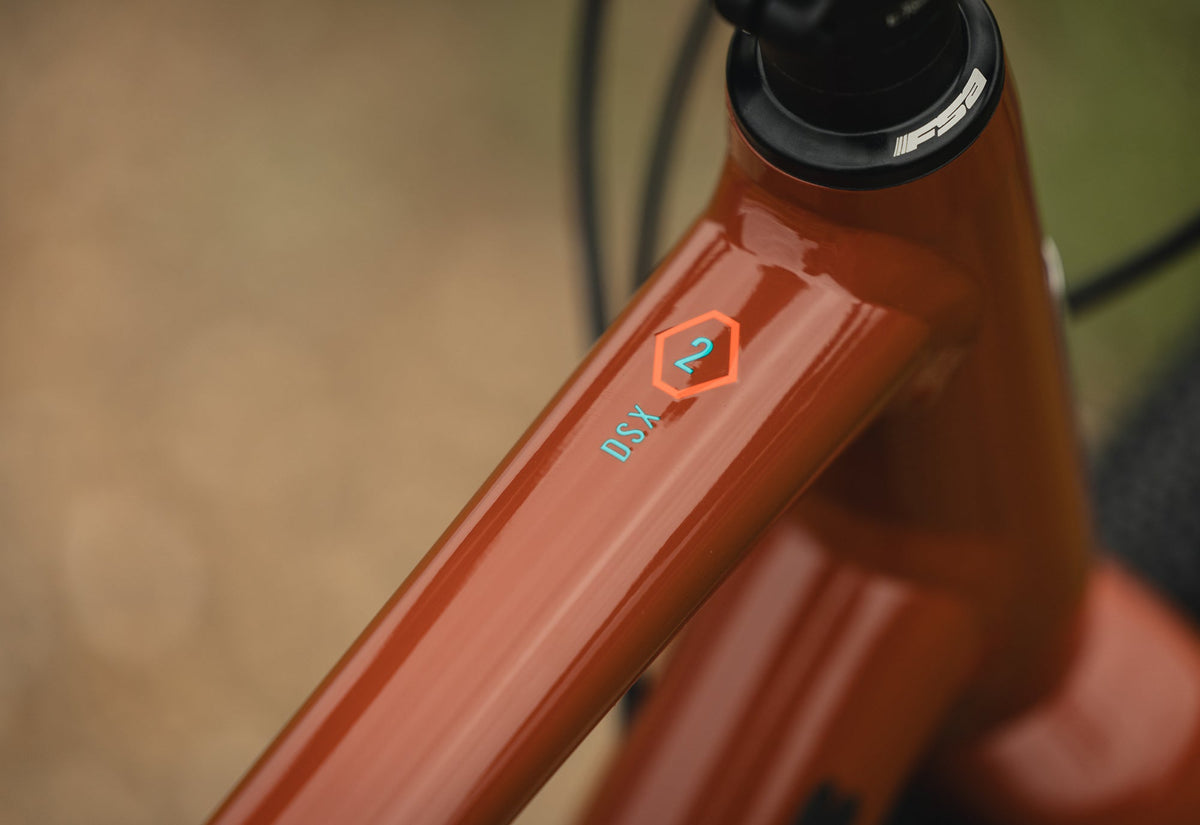

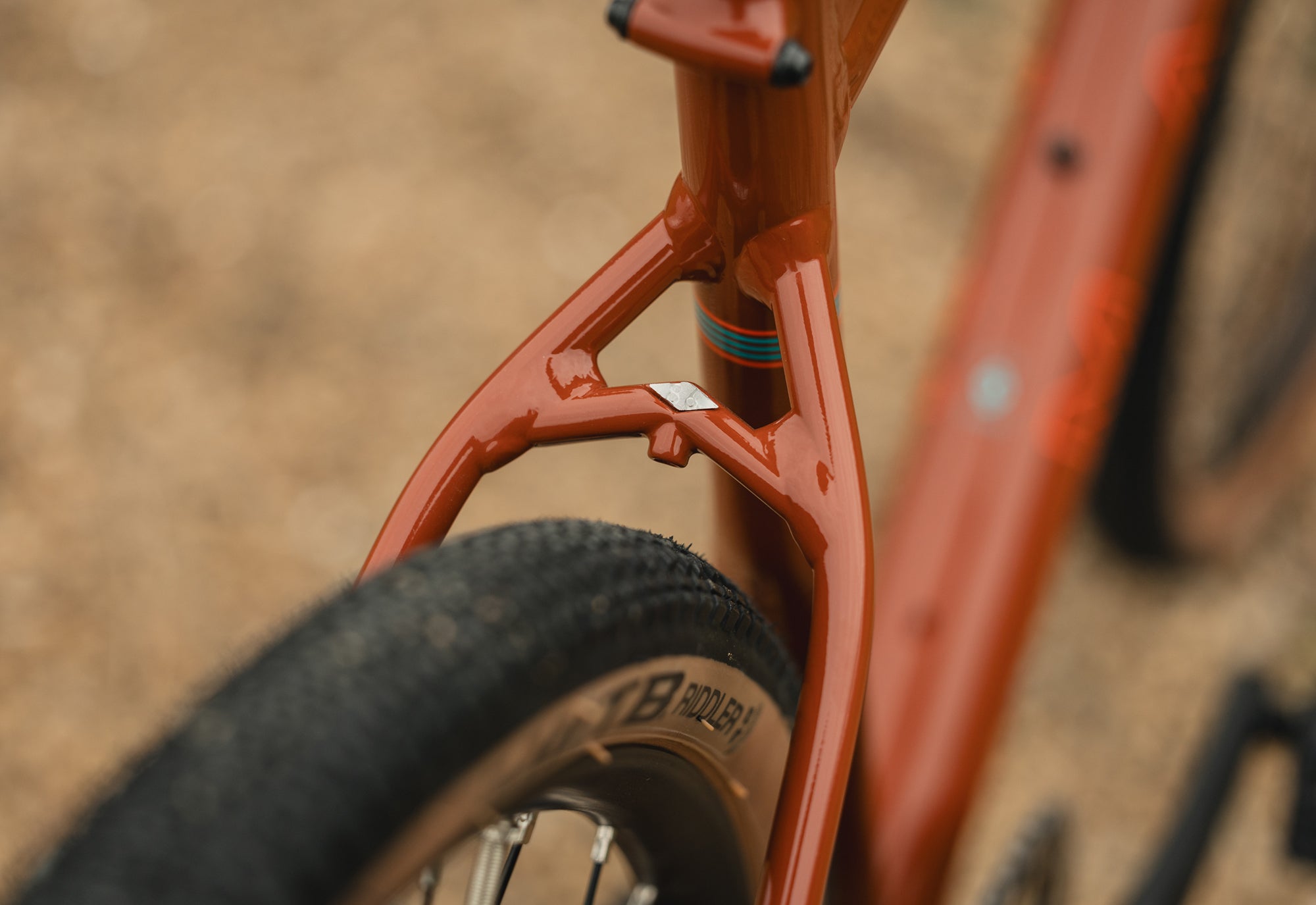

| Frame | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|

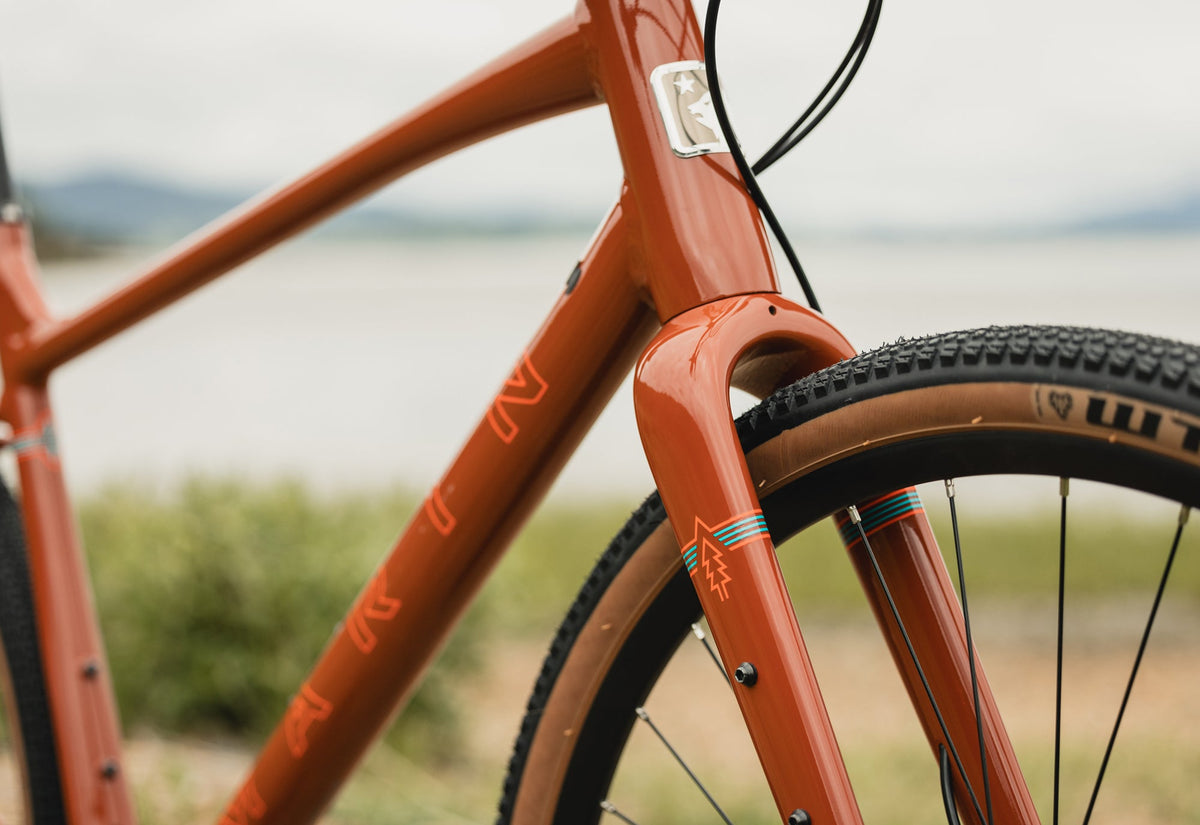

| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring |

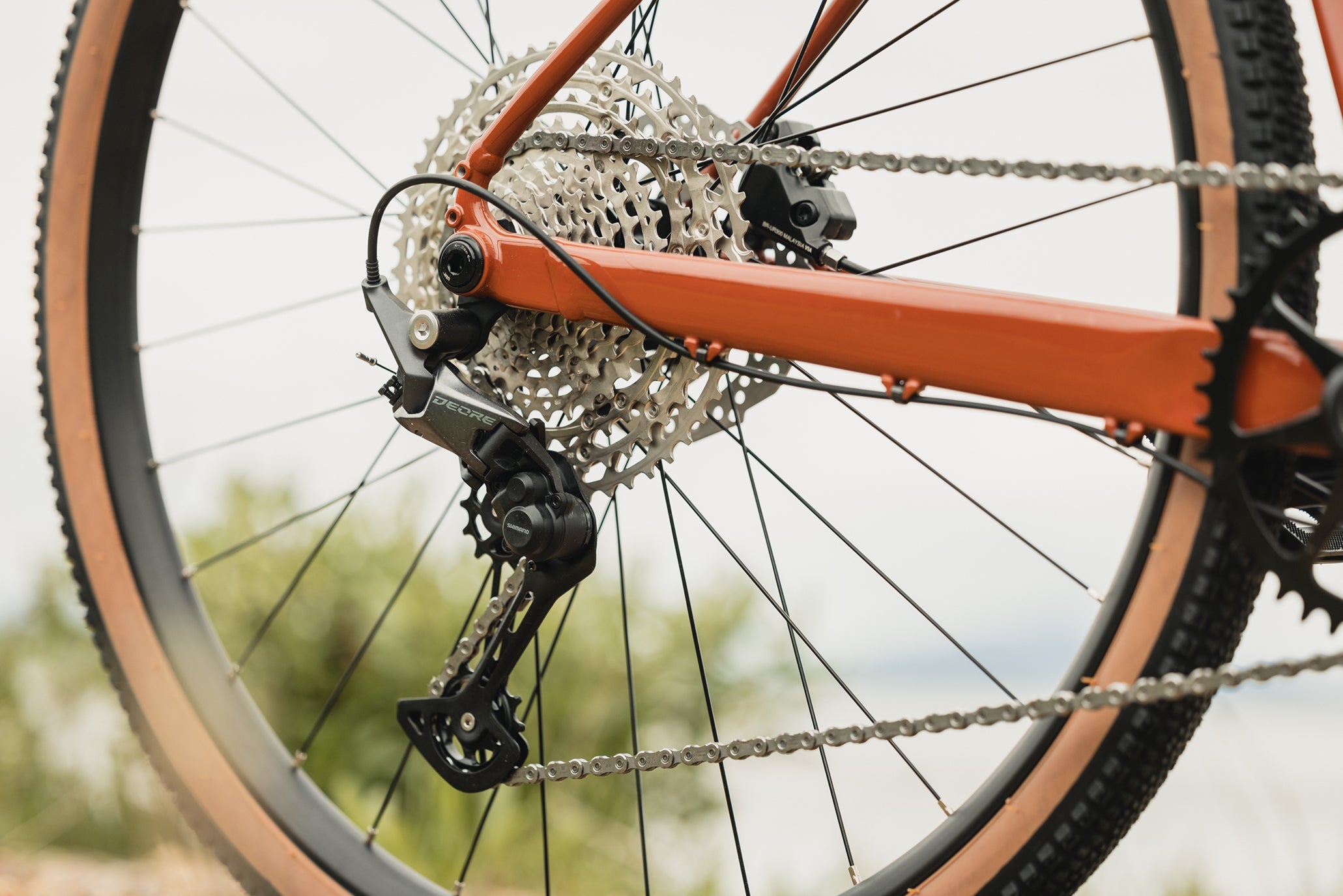

| Cassette | Shimano Deore, CS-M6100, 12-Speed, 10-51T |
| Brake Front | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Brake Rear | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Component | Specification | Frame size(s) |
|---|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets | |
| Frame | Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle | |
| Rim | Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible | |
| Hub Rear | Forged Aluminum, 142x12mm, Disc Specific, 32H | |
| Hub Front | Forged Aluminum, 100x12mm, Disc Specific, 32H | |
| Crankset | Forged Aluminum, 42T Steel Narrow Wide Chainring | |
| Cassette | Shimano Deore, CS-M6100, 12-Speed, 10-51T | |
| Brakes Front | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor | |
| Brakes Rear | Shimano BR-MT201/R300, Hydraulic, Flat Mount, 160mm Rotor |
| Size | Rider height |
|---|---|
| S | 165-173 cm |
| M | 175-190 cm |
| XL | 193-193 cm |
| Measurement | Small | Medium | Large | XLarge |
|---|---|---|---|---|
| A Stack | 544.4 | 572.5 | 600.6 | 628.7 |
| B Reach | 380 | 405 | 420 | 435 |
| C Headtube angle | 69.5° | 69.5° | 69.5° | 69.5° |
| D Headtube length | 120 | 150 | 180 | 210 |
| E Seattube length | 430 | 480 | 520 | 558 |
| F Seattube angle | 74° | 74° | 74° | 74° |
| G Toptube effective | 536.1 | 569.2 | 592.2 | 615.3 |
| H Bb height | 279.5 | 279.5 | 279.5 | 279.5 |
| I Bb drop | 80 | 80 | 80 | 80 |
| J Chainstay | 425 | 425 | 425 | 425 |
| K Wheelbase | 1024.42 | 1060 | 1085.4 | 1110.9 |
| L Standover height | 658.76 | 700.51 | 730.39 | 758.5 |
| M Fork offset | 50 | 50 | 50 | 50 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 640 | 680 | 680 | 680 |
