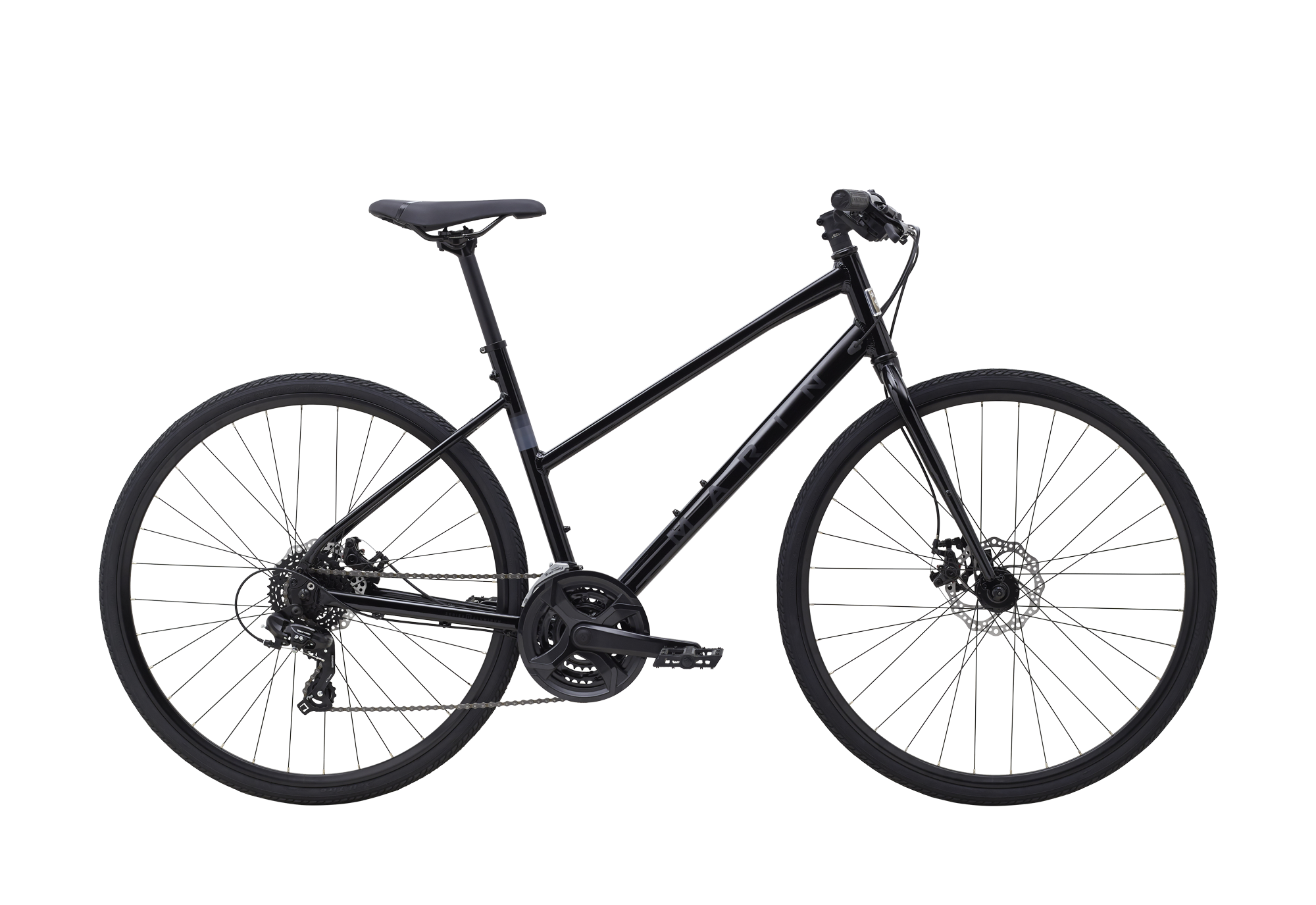

Marin Fairfax 1 ST
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability
- Sku: 733954001
- Available: Instock
- Collections: Bikes, Fitness Bikes, Hybrid Bikes, Marin
- Type: Hybrid Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Pairs well with
Marin Fairfax 1 ST is made for rides where you want a dependable hybrid bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Fork: Cr-Mo Steel, Straight Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets, Shift Lever: Shimano Shifter/Brake Lever Combo, 3x7-Speed, and Crankset: Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable hybrid bike
- Brand: Marin
- Category: Hybrid Bikes
- Fork: Cr-Mo Steel, Straight Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets
- Shift Lever: Shimano Shifter/Brake Lever Combo, 3x7-Speed
- Crankset: Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
- Brake Front: Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Brake Rear: Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frame | Series 1 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts |
|---|---|
| Fork | Cr-Mo Steel, Straight Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets |
| Shift Lever | Shimano Shifter/Brake Lever Combo, 3x7-Speed |
| Crankset | Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard |
| Brake Front | Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Brake Rear | Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| Component | Specification | Frame size(s) |
|---|---|---|
| Fork | Cr-Mo Steel, Straight Blade, Disc Mount, QR Dropouts, Fender and Rack Eyelets | |
| Frame | Series 1 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts | |
| Rim | Marin Aluminum Double Wall, Disc Specific | |
| Shift Lever | Shimano Shifter/Brake Lever Combo, 3x7-Speed | |
| Crankset | Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard | |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper | |
| Brakes Front | Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor | |
| Brakes Rear | Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor | |
| Handlebar | Marin Alloy Flat, 31.8mm | |
| Seatpost | Marin Alloy, 27.2mm |
| Size | Rider height |
|---|---|
| XS | 155-163 cm |
| S | 165-170 cm |
| M | 173-178 cm |
| L | 180-188 cm |
| XL | 190-190 cm |
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| A Stack | 557 | 571.3 | 590 | 609 |
| B Reach | 385 | 400 | 420 | 440 |
| C Headtube angle | 70.5° | 70.5° | 70.5° | 70.5° |
| D Headtube length | 140 | 155 | 175 | 195 |
| E Seattube length | 380 | 430 | 480 | 520 |
| F Seattube angle | 73.5° | 73.5° | 73.5° | 73.5° |
| G Toptube effective | 550 | 569.2 | 594.8 | 620.4 |
| H Bb height | 283.5 | 283.5 | 283.5 | 283.5 |
| I Bb drop | 70 | 70 | 70 | 70 |
| J Chainstay | 445 | 445 | 445 | 445 |
| K Wheelbase | 1050.01 | 1070 | 1096.7 | 1123.4 |
| L Standover height | 536 | 567.3 | 607.7 | 628 |
| M Fork offset | 50 | 50 | 50 | 50 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 640 | 640 | 680 | 680 |
| P Stem length | 70 | 70 | 70 | 70 |
| Q Crank length | 170 | 170 | 175 | 175 |
