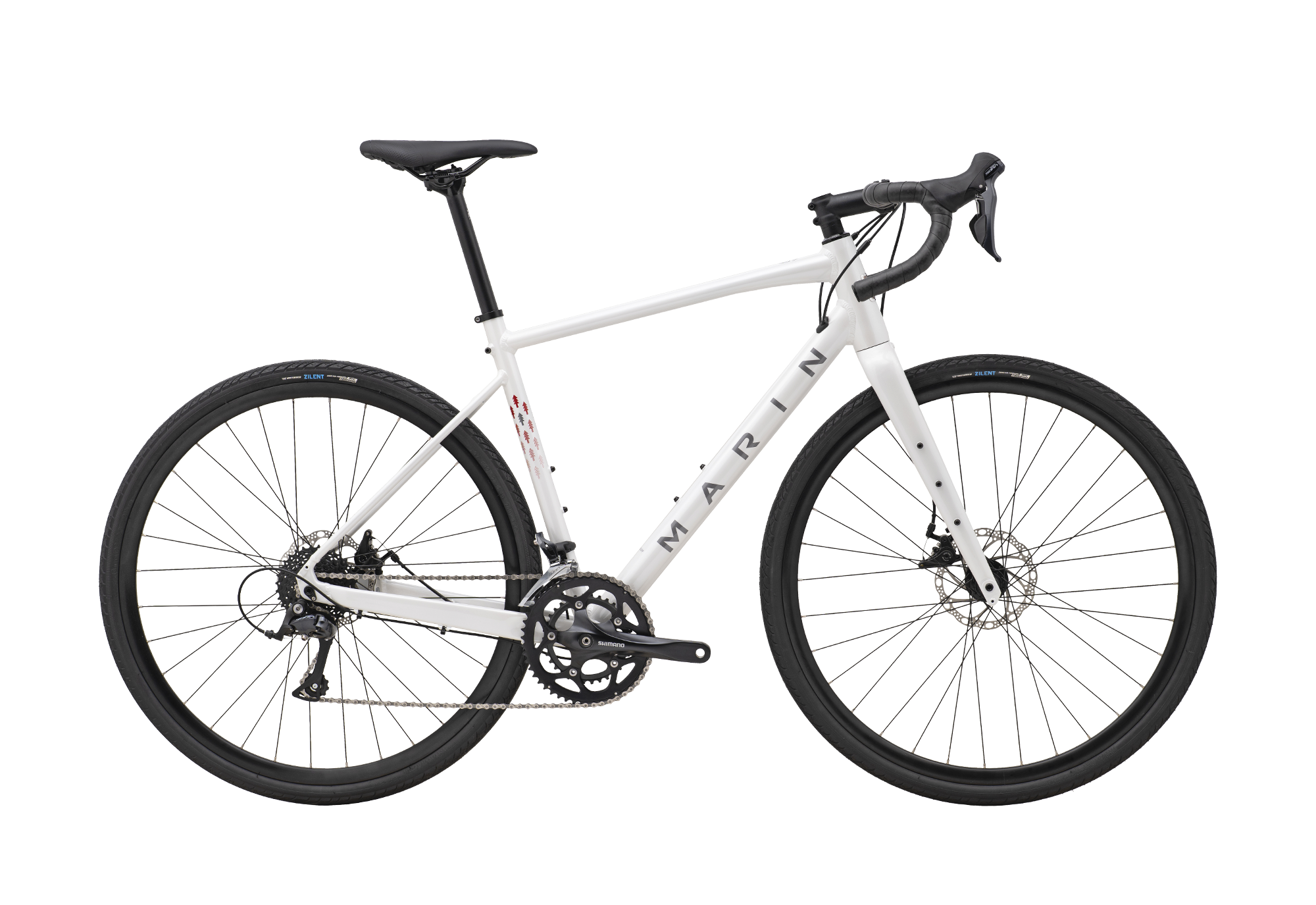

Marin Gestalt 1
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability
- Sku: 735960001
- Available: Instock
- Collections: Bikes, Gravel & Adventure Bikes, Gravel Bikes, Marin
- Type: Gravel Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Pairs well with
Marin Gestalt 1 is made for rides where you want a dependable gravel bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets, Crankset: Shimano R345 Octalink Compact, 50/34T, and Brake Front: Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable gravel bike
- Brand: Marin
- Category: Gravel Bikes
- Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
- Crankset: Shimano R345 Octalink Compact, 50/34T
- Brake Front: Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor

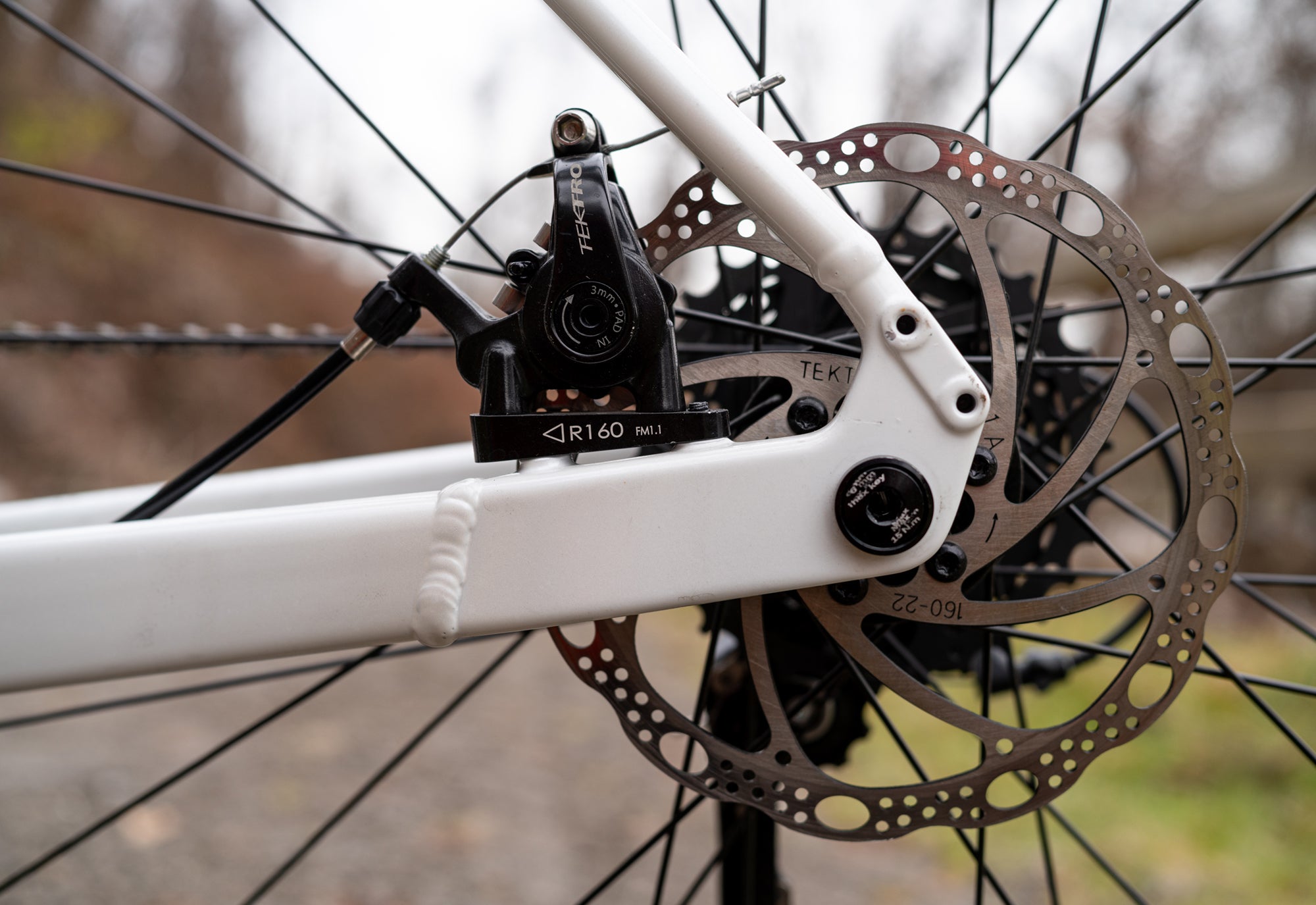

- Brake Rear: Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor
- Rim: Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

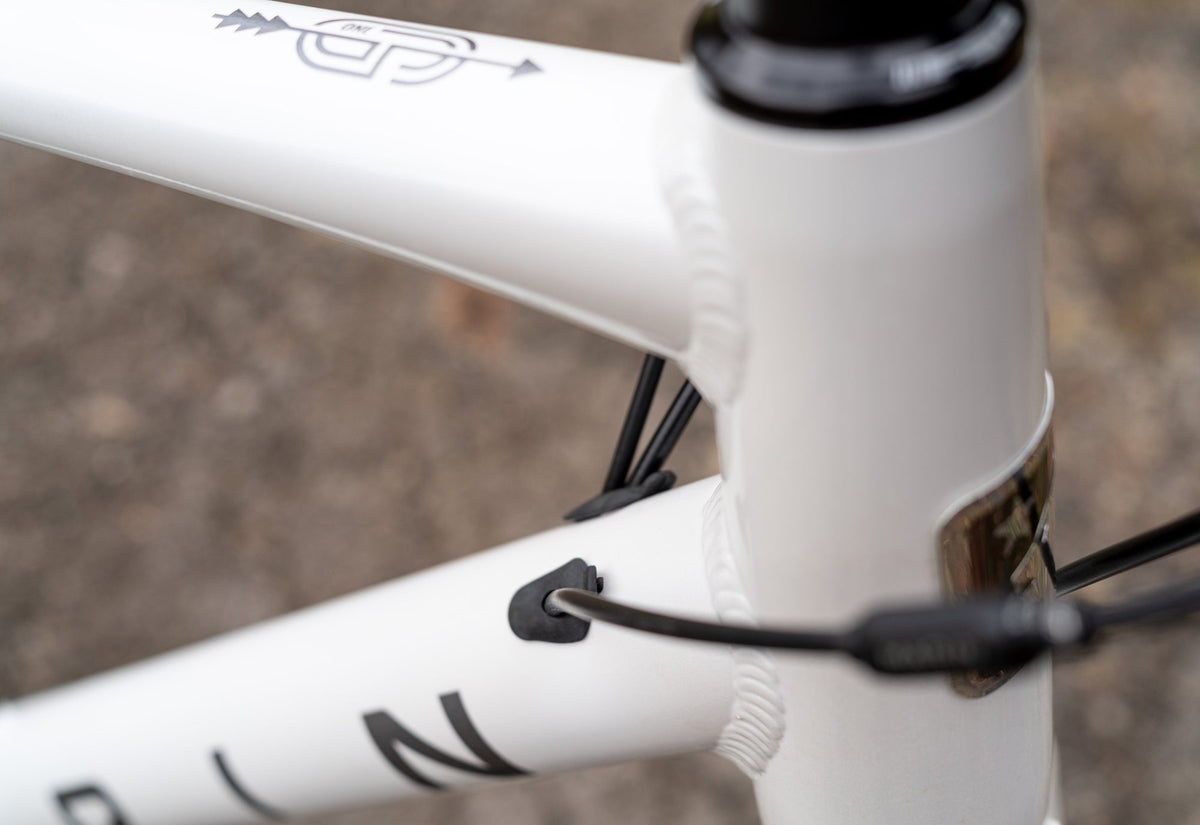

| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Crankset | Shimano R345 Octalink Compact, 50/34T |
| Brake Front | Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Brake Rear | Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Component | Specification | Frame size(s) |
|---|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets | |
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle | |
| Rim | Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible | |
| Hub Rear | Forged Aluminum Alloy, 6-Bolt Disc, 32H | |
| Hub Front | Forged Aluminum Alloy, 6-Bolt Disc, 32H | |
| Crankset | Shimano R345 Octalink Compact, 50/34T | |
| Brakes Front | Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor | |
| Brakes Rear | Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor | |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop | |
| Headset | FSA No 42ACB, 1 1/8" x 1 1/2” | |
| Seatpost | Marin Alloy, 27.2mm |
| Size | Rider height |
|---|---|
| 50 | 157-163 cm |
| 52 | 165-173 cm |
| 54 | 175-178 cm |
| 56 | 180-185 cm |
| 58 | 188-190 cm |
| 60 | 193-193 cm |
| Measurement | 50 | 52 | 54 | 56 | 58 | 60 |
|---|---|---|---|---|---|---|
| A Stack | 552 | 568 | 582 | 601 | 620 | 641 |
| B Reach | 367 | 372 | 377 | 387 | 402 | 404 |
| C Headtube angle | 71° | 71.5° | 71.5° | 71.5° | 71.5° | 71.5° |
| D Headtube length | 120 | 135 | 150 | 170 | 190 | 210 |
| E Seattube length | 460 | 480 | 500 | 520 | 540 | 560 |
| F Seattube angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| G Toptube effective | 520 | 535 | 550 | 565 | 585 | 600 |
| H Bb height | 276 | 276 | 276 | 276 | 276 | 276 |
| I Bb drop | 78 | 78 | 78 | 78 | 78 | 78 |
| J Chainstay | 432 | 432 | 432 | 432 | 432 | 432 |
| K Wheelbase | 1008 | 1014 | 1024 | 1040 | 1060 | 1070 |
| L Standover height | 714 | 732 | 755 | 775 | 794 | 814 |
| M Fork offset | 50 | 50 | 50 | 50 | 50 | 50 |
| N Seatpost diameter | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| O Handlebar width | 420 | 420 | 440 | 440 | 460 | 460 |
| P Stem length | 70 | 70 | 90 | 90 | 110 | 110 |
| Q Crank length | 170 | 170 | 175 | 175 | 175 | 175 |
