Marin San Quentin 1
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability
- Sku: N/A
- Available: Instock
- Collections: Bikes, Marin, Mountain Bikes, Trail Mountain Bikes
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Pairs well with
Marin San Quentin 1 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Derailleur Rear: MicroShift RD-M9195M, 9 Speed, With Clutch, Shift Lever: MicroShift SL-M9195-R, 1x9 with Bearings, and Crankset: Marin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Marin
- Category: Mountain Bikes
- Derailleur Rear: MicroShift RD-M9195M, 9 Speed, With Clutch
- Shift Lever: MicroShift SL-M9195-R, 1x9 with Bearings

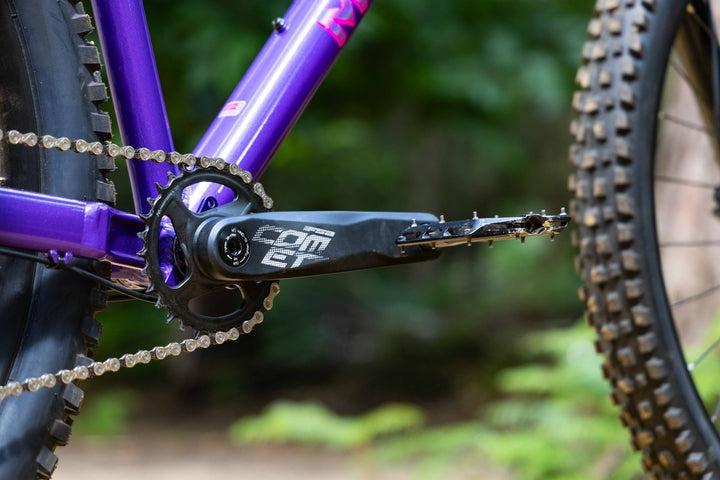

- Crankset: Marin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing
- Brake Front: Tektro M275 Hydraulic, 180mm Rotor
- Rim: Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

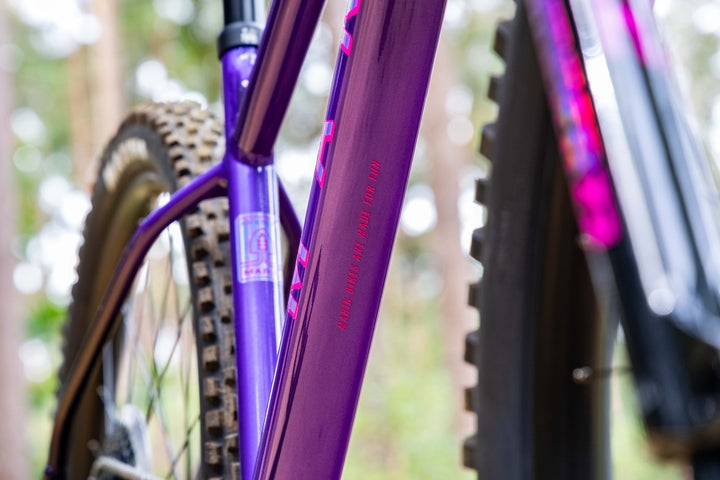

| Frame | Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB |
|---|---|
| Front Suspension | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle |
| Derailleur Rear | MicroShift RD-M9195M, 9 Speed, With Clutch |
| Shift Lever | MicroShift SL-M9195-R, 1x9 with Bearings |
| Crankset | Marin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing |
| Brake Front | Tektro M275 Hydraulic, 180mm Rotor |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frame | Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB | |
| Front Suspension | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle | |
| Rim | Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible | |
| Hub Rear | Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, 32H, Shimano Standard Freehub Body | |
| Hub Front | Forged Alloy, 110x15mm, Sealed Cartridge Bearing, 32H | |
| Tires | Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless | |
| Derailleur Rear | MicroShift RD-M9195M, 9 Speed, With Clutch | |
| Shift Lever | MicroShift SL-M9195-R, 1x9 with Bearings | |
| Crankset | Marin Forged Alloy, Integrated Steel 32t Narrow Wide Changing, Boost Spacing | |
| Bottom Bracket | Sealed Cartridge Bearing, Square Taper | |
| Brakes Front | Tektro M275 Hydraulic, 180mm Rotor | |
| Brakes Rear | Tektro M275 Hydraulic, 180mm Rotor | |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back | |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” | |
| Seatpost | Marin Alloy, 30.9mm |
| Size | Rider height |
|---|---|
| XS | 155-160 cm |
| S | 163-170 cm |
| M | 173-178 cm |
| L | 180-190 cm |
| XL | 193-193 cm |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| A Stack | 618 | 622.5 | 645 | 650 |
| B Reach | 422 | 450 | 470 | 500 |
| C Headtube angle | 64° | 64° | 64° | 64° |
| D Headtube length | 110 | 115 | 125 | 130 |
| E Seattube length | 310 | 340 | 410 | 420 |
| F Seattube angle | 77° | 77° | 77° | 77° |
| G Toptube effective | 564.7 | 593.7 | 619 | 650 |
| H Bb height | 316 | 316 | 327 | 327 |
| I Bb drop | 50 | 50 | 50 | 50 |
| J Chainstay | 425 | 425 | 430 | 430 |
| K Wheelbase | 1173.4 | 1203.6 | 1236 | 1268 |
| L Standover height | 627.7 | 656.4 | 688 | 695 |
| M Fork offset | 37 | 37 | 44 | 44 |
| N Seatpost diameter | 30.9 | 30.9 | 30.9 | 30.9 |
| O Handlebar width | 780 | 780 | 780 | 780 |
| P Stem length | 35 | 35 | 35 | 35 |
| Q Crank length | 170 | 170 | 170 | 170 |
