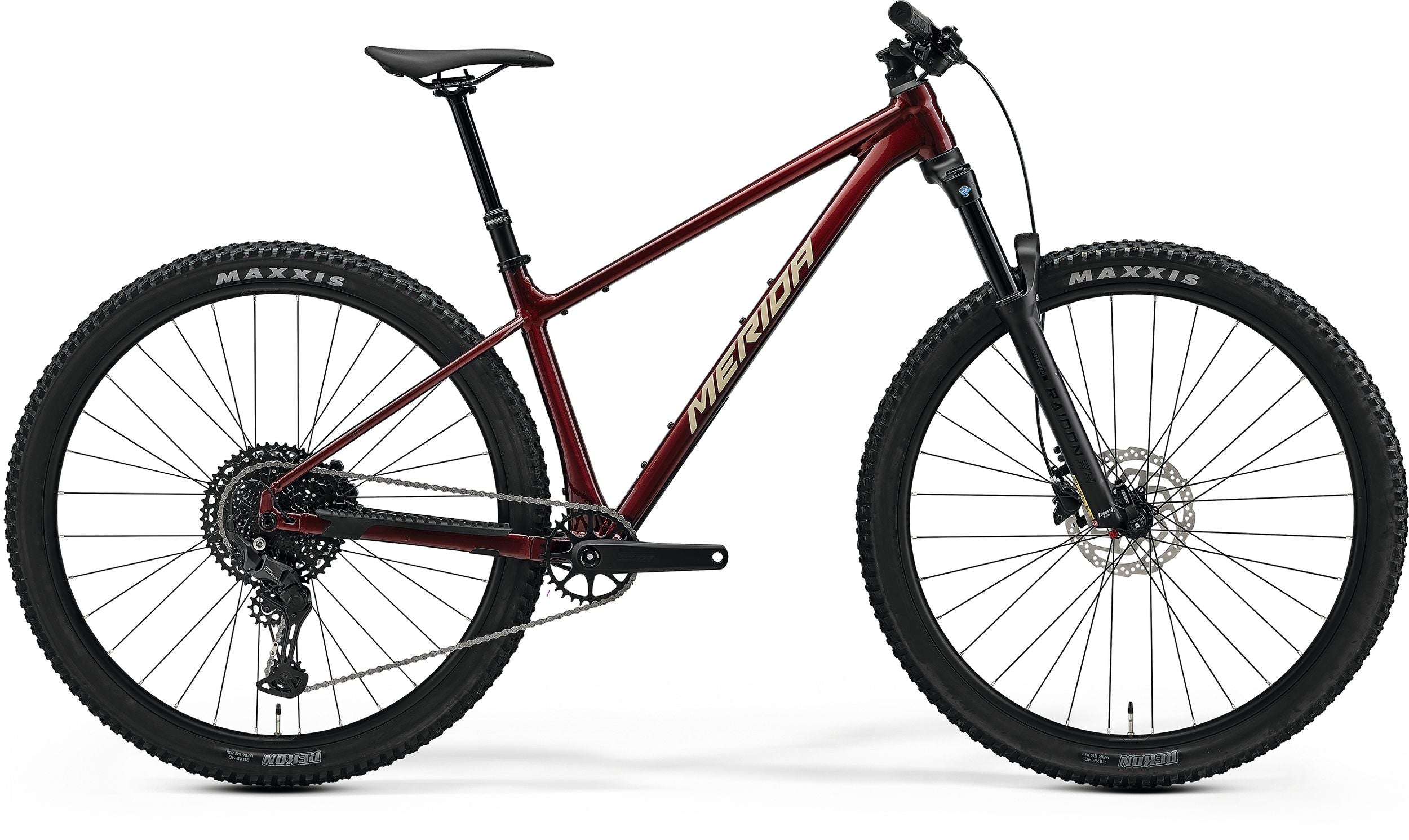

Merida BIG.NINE TR 600
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: N/A
- Available: Instock
- Collections: Bikes, Merida, Mountain Bikes
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Merida BIG.NINE TR 600 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frame: BIG.NINE TR LITE III, Fork: SR Suntour Raidon 34 2CR, and Brakes: Shimano MT200. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Merida
- Category: Mountain Bikes
- Frame: BIG.NINE TR LITE III
- Fork: SR Suntour Raidon 34 2CR
- Brakes: Shimano MT200
- Derailleur (R): Shimano CUES U6000
- Shifters: Shimano CUES U6000
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frame | BIG.NINE TR LITE III |
|---|---|
| Fork | SR Suntour Raidon 34 2CR |
| Brakes | Shimano MT200 |
| Derailleur (R) | Shimano CUES U6000 |
| Shifters | Shimano CUES U6000 |
| Crank | MERIDA Expert TR II |
| Freewheel | SunRace 10-50t CS-UX400 EA5 |
| Rim | MERIDA COMP CC II |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frame | BIG.NINE TR LITE III. material: aluminium 29x2.4" max. wheelsize 148x12mm axle standard BSA bottom bracket standard | |
| Frame Size | S, M, L, XL, XXL | |
| Color | GLITTER CHERRY (SILVER) | |
| Fork | SR Suntour Raidon 34 2CR. Air 120mm suspension travel Tapered platform 46 mm fork offset | |
| Brakes | Shimano MT200. 2 piston | |
| Rotors | Shimano RT10. 180mm | |
| Headset | Acros ICR MERIDA EXTERNAL neck. Upper and lower IPS sealing | |
| Handlebar | MERIDA EXPERT CC. material: aluminium 760mm width 10mm rise | |
| Handlebar Stem | MERIDA TEAM CC III. material: aluminium 31.8mm diameter -6° stem angle 60mm | |
| Grip | MERIDA COMP TR | |
| Derailleur (R) | Shimano CUES U6000. GS | |
| Shifters | Shimano CUES U6000 | |
| Seat Post | MERIDA COMP TR. 30.9mm diameter 0mm setback travel seatpost S: 125mm, M/L: 150mm, XL/XXL 175mm | |
| Seat Clamp | MERIDA EXPERT | |
| Saddle | MERIDA COMP SL. 25% recycled material V-mount | |
| Chain | KMC xGlide | |
| Crank | MERIDA Expert TR II. 32 teeth 170 mm for all sizes | |
| Freewheel | SunRace 10-50t CS-UX400 EA5. 10-50 teeth 11 speed Linkglide | |
| Bottom Bracket | Samox BSA 24mm EB2401 | |
| Hubs | Shimano TC500-B / Shimano TC500-HM-B. 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 32 spoke holes Centerlock | |
| Rim | MERIDA COMP CC II. 25mm inner width material: aluminium tubeless ready | |
| Tyre Front | Maxxis Rekon. 29x2.4" wire | |
| Tyre Rear | Maxxis Rekon. 29x2.4" wire | |
| Axles | MERIDA EXPERT TR. including removeable lever, 6/4mm allen key | |
| Spokes | Black stainless | |
| Max. Weight | 135 kg |
| Size |
|---|
| S |
| M |
| L |
| XL |
| XXL |
| Measurement | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 380 | 410 | 440 | 470 | 500 |
| TT top tube [mm] | 594 | 614 | 637 | 659 | 681 |
| CS chain stay length [mm] | 430 | 430 | 430 | 430 | 430 |
| HTA head tube angle [°] | 66.9 | 66.9 | 66.9 | 66.9 | 66.9 |
| STA seat tube angle [°] | 74.2 | 74.2 | 74.2 | 74.2 | 74.2 |
| BD bottom bracket drop [mm] | 57 | 57 | 57 | 57 | 57 |
| HT head tube [mm] | 95 | 95 | 105 | 115 | 125 |
| FL fork length [mm] | 530 | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 | 500 |
| S stack [mm] | 614 | 614 | 624 | 633 | 643 |
| WB wheel base [mm] | 1132 | 1152 | 1176 | 1199 | 1223 |
| SH stand over height [mm] | 712 | 713 | 715 | 723 | 758 |
