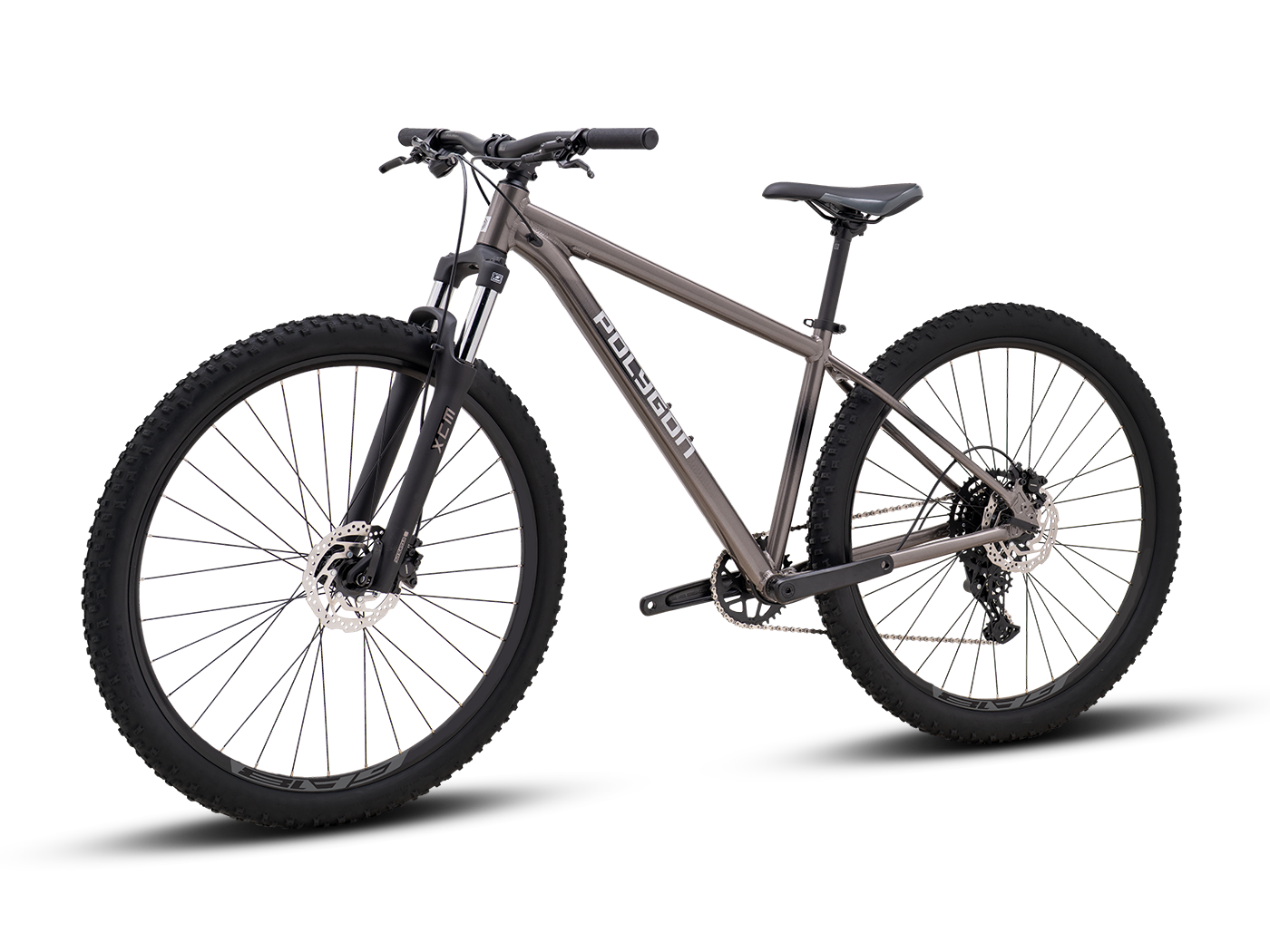

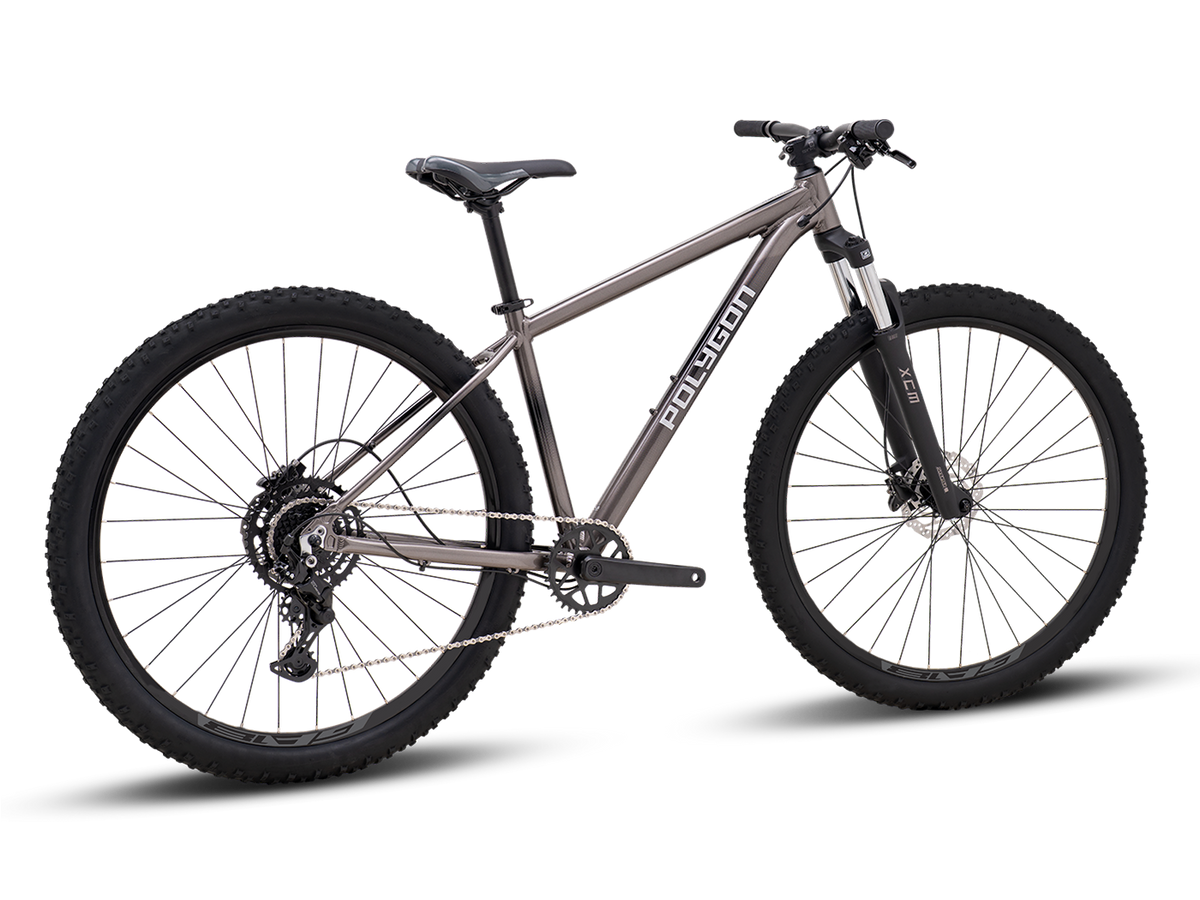

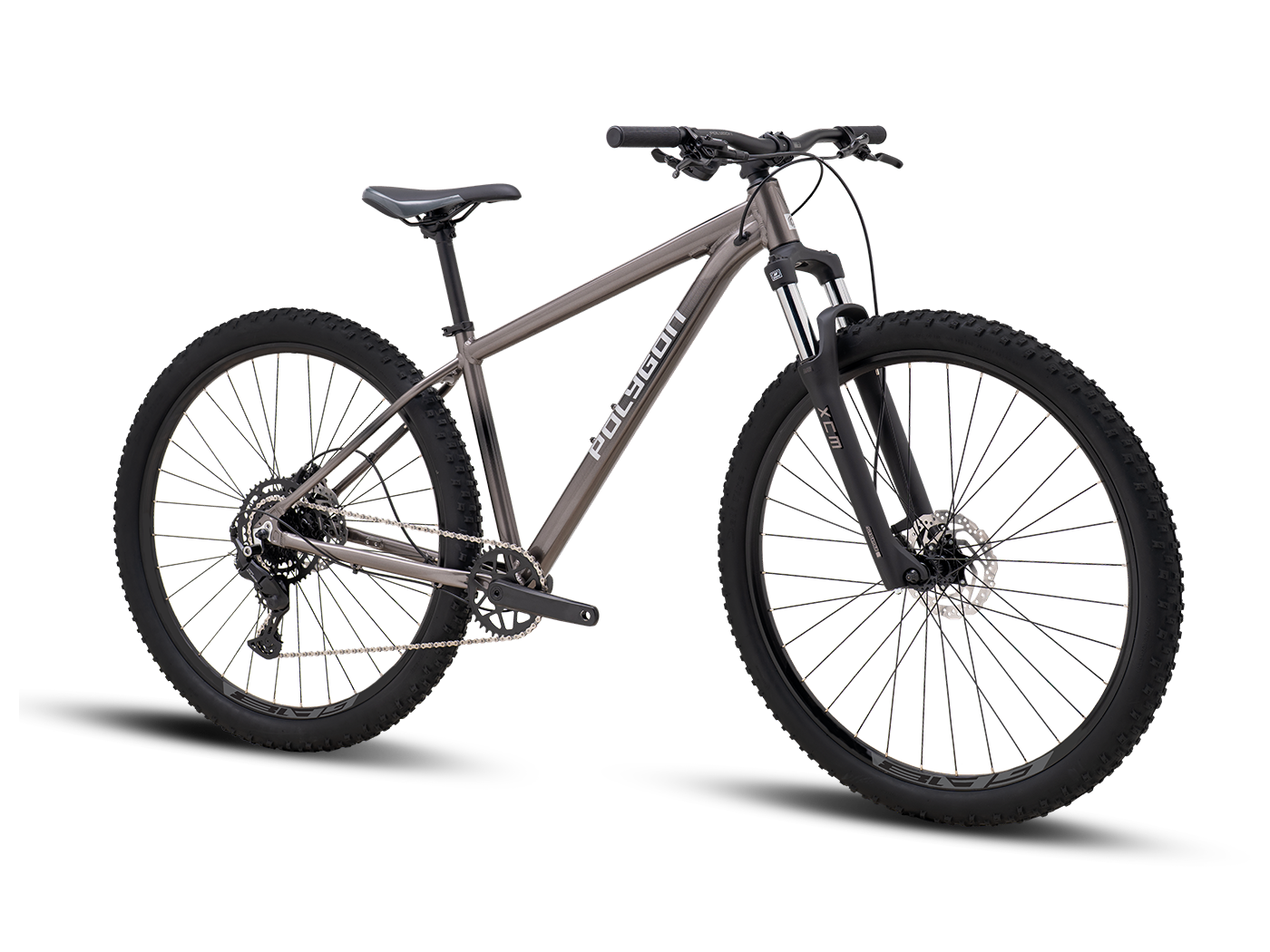

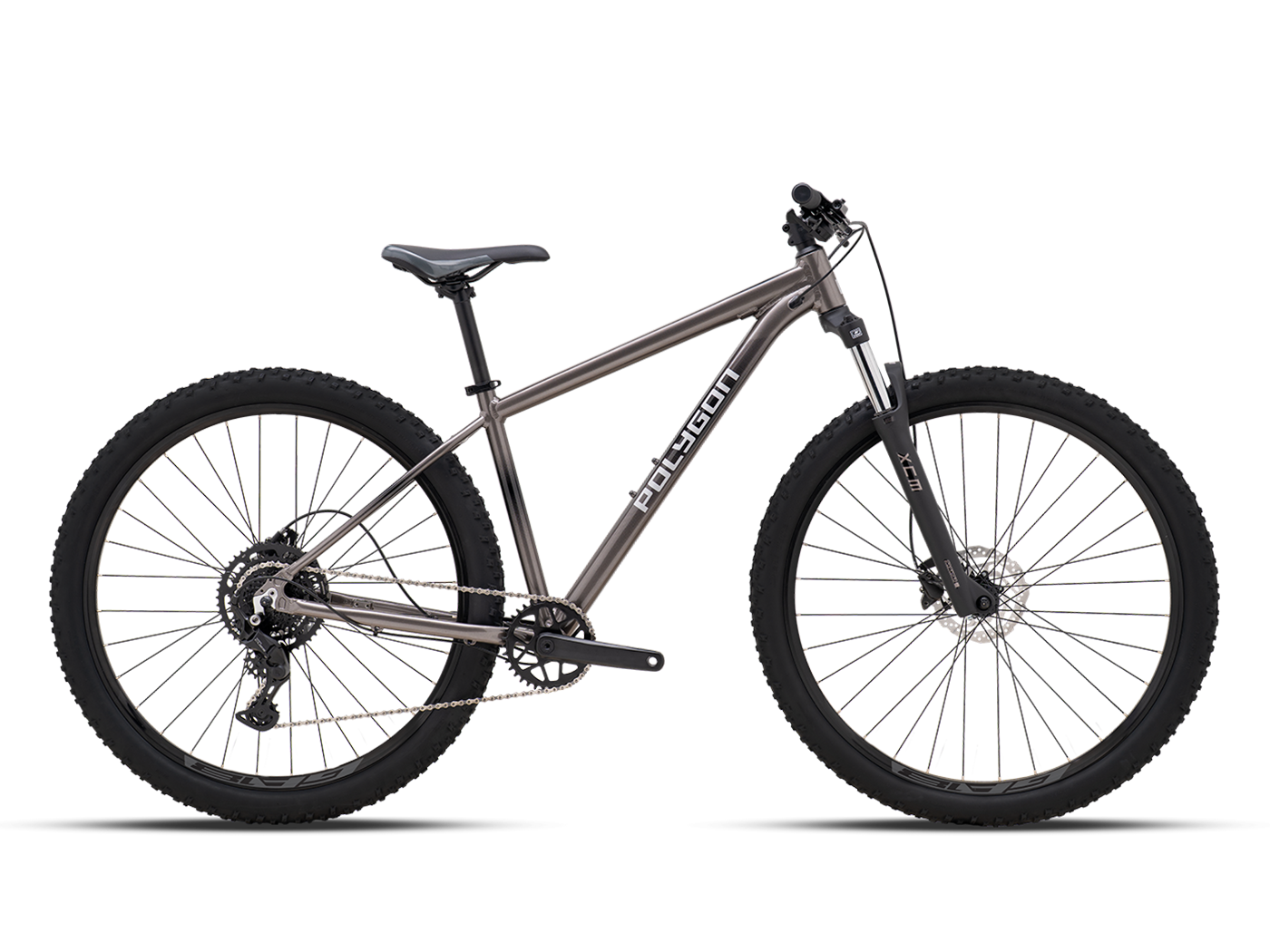

Polygon CASCADE 4
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 503442004
- Available: Instock
- Collections: Bikes, Mountain Bikes, Polygon
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon CASCADE 4 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ALX XC SPORT FRAME, Fork: SUNTOUR XCM 32 100MM TRAVEL, and Crank: PROWHEEL C10Y-NW, 36T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Polygon
- Category: Mountain Bikes
- Frameset: ALX XC SPORT FRAME
- Fork: SUNTOUR XCM 32 100MM TRAVEL
- Crank: PROWHEEL C10Y-NW, 36T
- Cassette: SHIMANO CUES CS-LG300, 11-46T
- Rear Derailleur: SHIMANO CUES RD-U4000GS
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ALX XC SPORT FRAME |
|---|---|
| Fork | SUNTOUR XCM 32 100MM TRAVEL |
| Crank | PROWHEEL C10Y-NW, 36T |
| Cassette | SHIMANO CUES CS-LG300, 11-46T |
| Rear Derailleur | SHIMANO CUES RD-U4000GS |
| Shifter | SHIMANO CUES SL-U4010, 1x9-RAPID FIRE |
| Brake Lever | SHIMANO MT200 |
| Brake Caliper | SHIMANO MT200 |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ALX XC SPORT FRAME | |
| Fork | SUNTOUR XCM 32 100MM TRAVEL | |
| Frame Color | CHARCOAL CHROME | |
| Decal Color | WHITE - BLACK | |
| Shifter | SHIMANO CUES SL-U4010, 1x9-RAPID FIRE | |
| Crank | PROWHEEL C10Y-NW, 36T | |
| Cassette | SHIMANO CUES CS-LG300, 11-46T | |
| Rear Derailleur | SHIMANO CUES RD-U4000GS | |
| BB | SQUARE BB, 68mm | |
| Chain | KMC X-GLIDE | |
| Pedal | ONE PIECE PP BODY | |
| Saddle | BLACK STEEL ø7mm | |
| Seatpost | POLYGON SPORT 27.2 x 350mm | |
| Handlebar | POLYGON SPORT W: 700MM, B: 31.8MM, R/D: 20MM | |
| Handlestem | POLYGON SPORT E: 40MM, B: 31.8MM, R/D: 7 | |
| Headset | ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 44/30 | |
| Wheel Set | ALLOY DOUBLE WALL | |
| Wheel Size | 27.5"/29" | |
| Tire | DELI 27.5" / 29"x2.25" | |
| Rim | ALLOY DOUBLE WALL | |
| Hub | F: ALLOY, 100mm 32H QR / R: ALLOY, 135mm 32H QR | |
| Spokes | 27.5" F: 14G STAINLESS NDS:270mm / DS:272mm / R: : 14G STAINLESS NDS:270mm / DS:272mm / 29" F: 14G STAINLESS NDS:290mm / DS:292, 12mm NIPPLE BRASS / R: 14G STAINLESS NDS:290mm / DS:292, 12mm NIPPLE BRASS | |
| Brake Lever | SHIMANO MT200 | |
| Brake Caliper | SHIMANO MT200 | |
| Rotor | SHIMANO SM-RT10, 160mm |
| Size | Rider height (cm) |
|---|---|
| XS (27.5") | 145-155 |
| S (27.5") | 155-165 |
| M (27.5") | 165-175 |
| L (27.5") | 175-185 |
| S (29") | 155-165 |
| M (29") | 165-175 |
| L (29") | 175-185 |
| Measurement | XS (27.5") | S (27.5") | M (27.5") | L (27.5") | S (29") | M (29") | L (29") |
|---|---|---|---|---|---|---|---|
| Height (cm) | 145-155 | 155-165 | 165-175 | 175-185 | 155-165 | 165-175 | 175-185 |
| A Seat Tube Length | 360 | 390 | 430 | 460 | 390 | 430 | 460 |
| B Seat Tube Angle | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
| C Effective Seat Tube Angle | 75 | 74 | 74 | 74 | 75 | 75 | 74 |
| D Head Tube Length | 110 | 115 | 120 | 125 | 90 | 95 | 100 |
| E Head Tube Angle | 68 | 67 | 68 | 68 | 67 | 68 | 68 |
| F Effective Top Tube | 538 | 561 | 582 | 603 | 566 | 585 | 604 |
| G Bb Height | 310 | 310 | 310 | 310 | 304 | 303 | 303 |
| H Bb Offset | -45 | -45 | -45 | -45 | -69 | -69 | -69 |
| I Chainstay Length | 440 | 439 | 439 | 439 | 455 | 454 | 454 |
| J Wheelbase | 1085 | 1108 | 1129 | 1151 | 1122 | 1142 | 1161 |
| K Frame Reach | 380 | 400 | 420 | 440 | 400 | 420 | 440 |
| L Frame Stack | 596 | 601 | 606 | 610 | 620 | 624 | 629 |
| M Standover Height | 684 | 703 | 734 | 755 | 709 | 736 | 759 |
