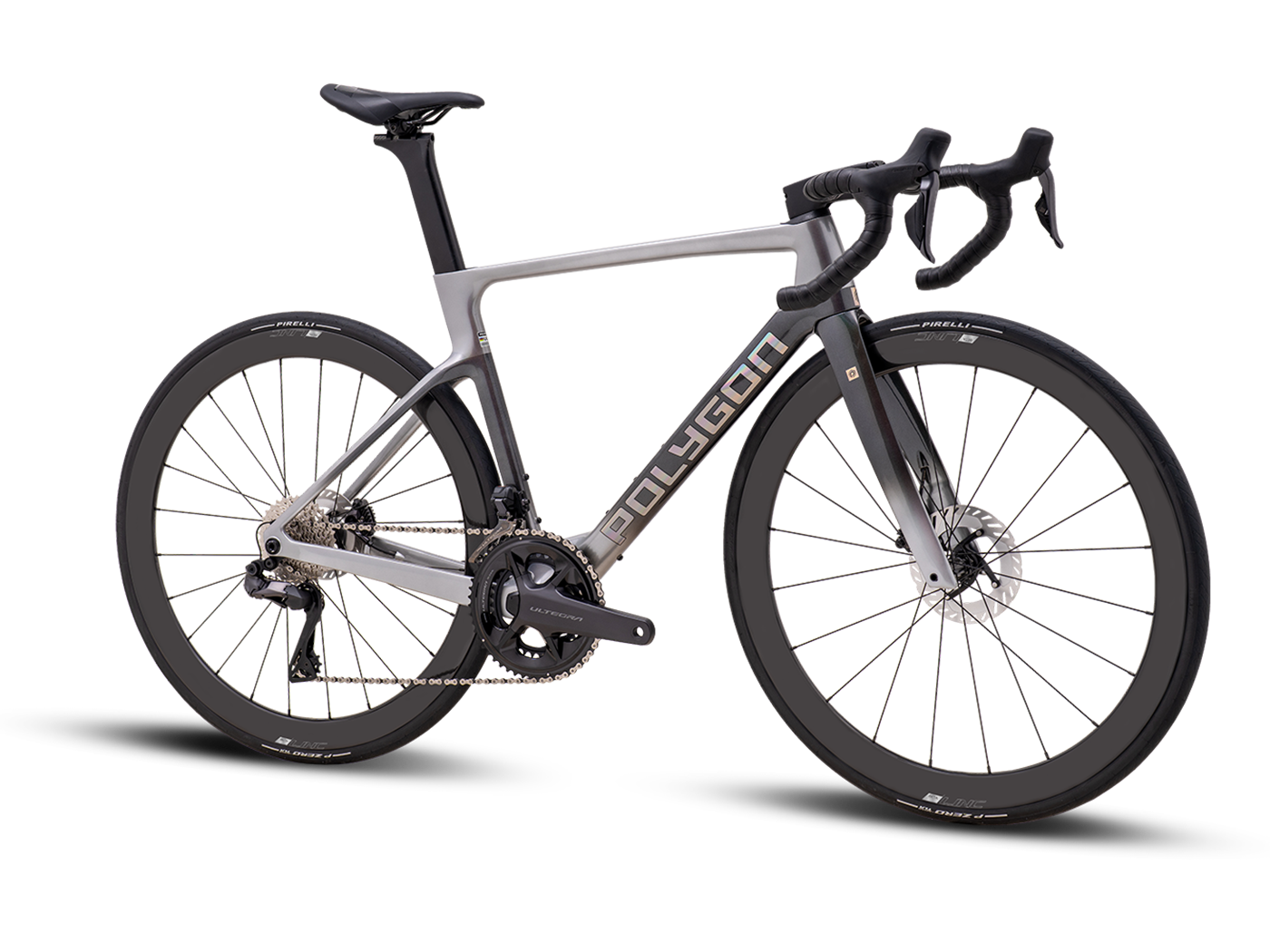

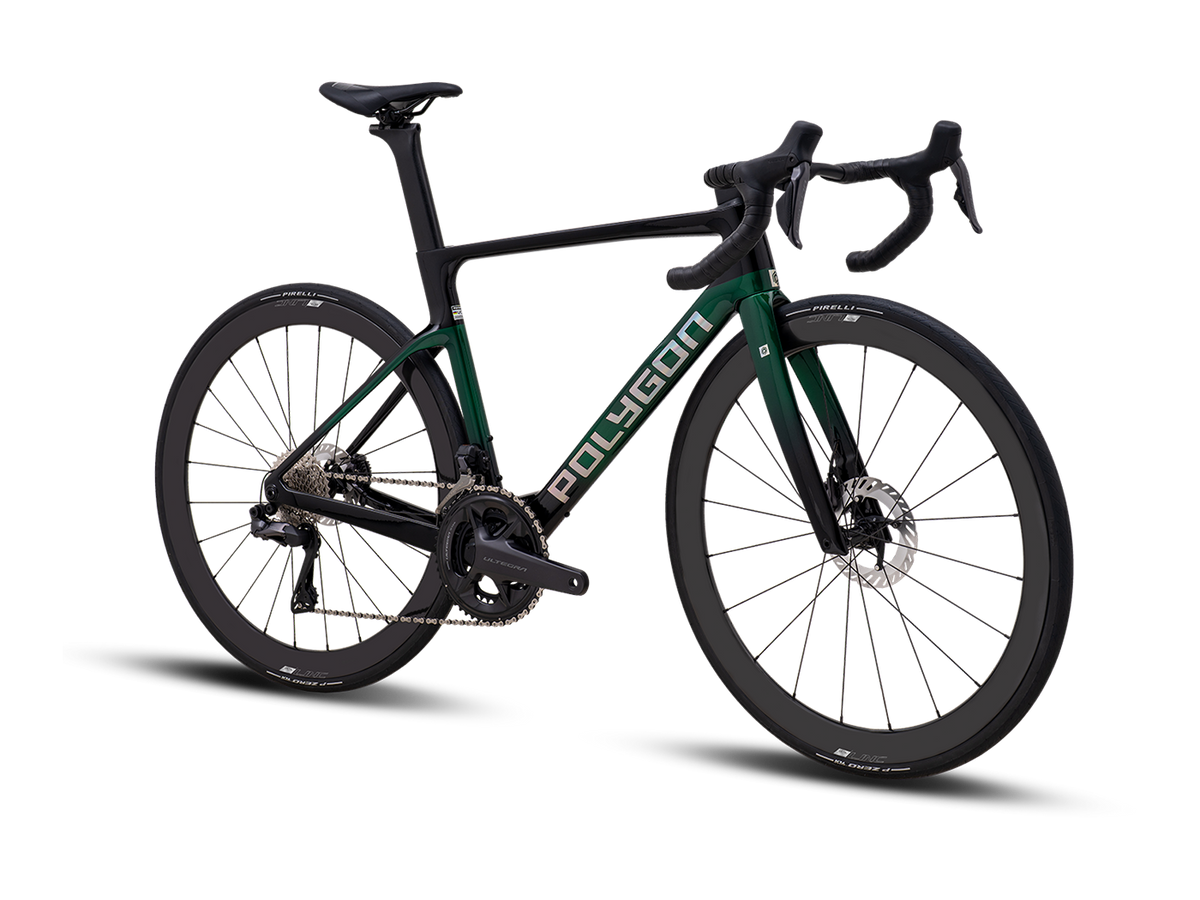

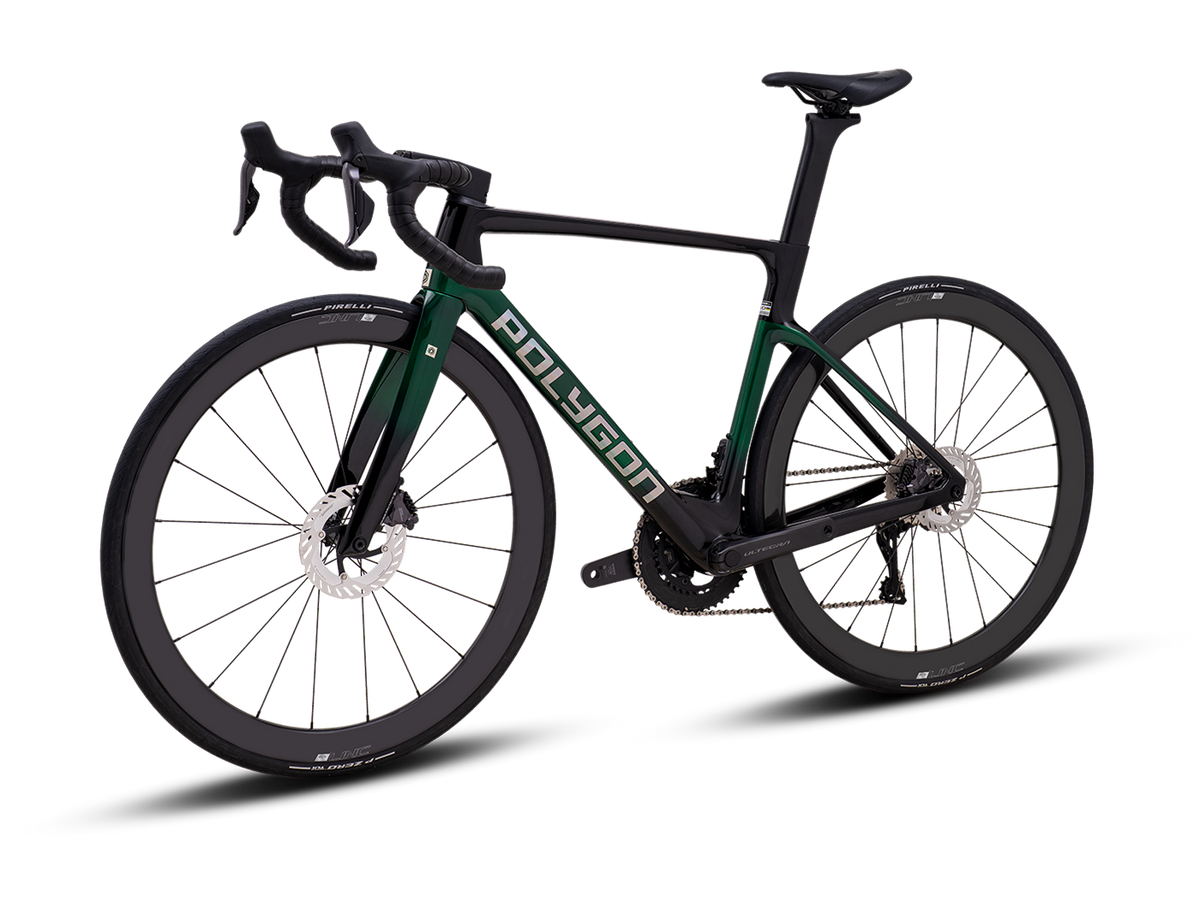

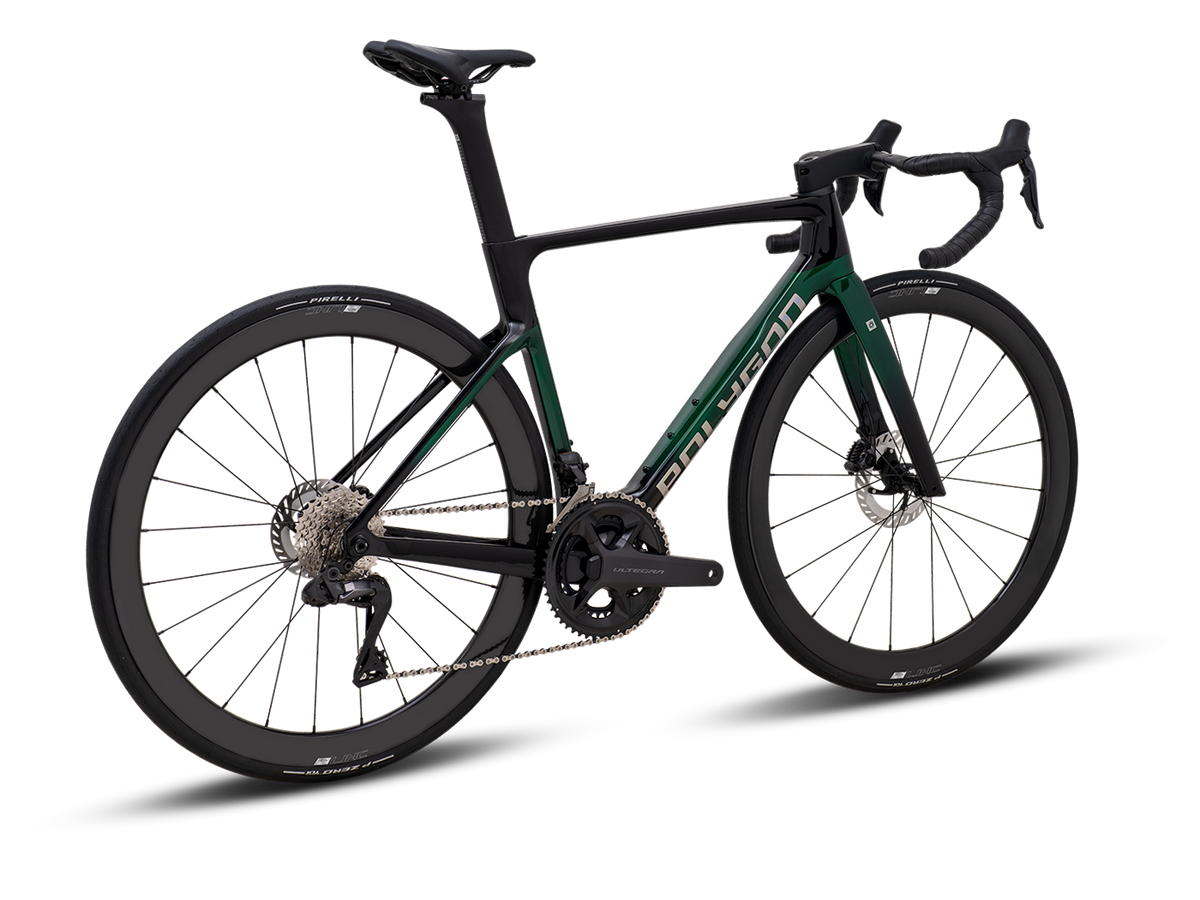

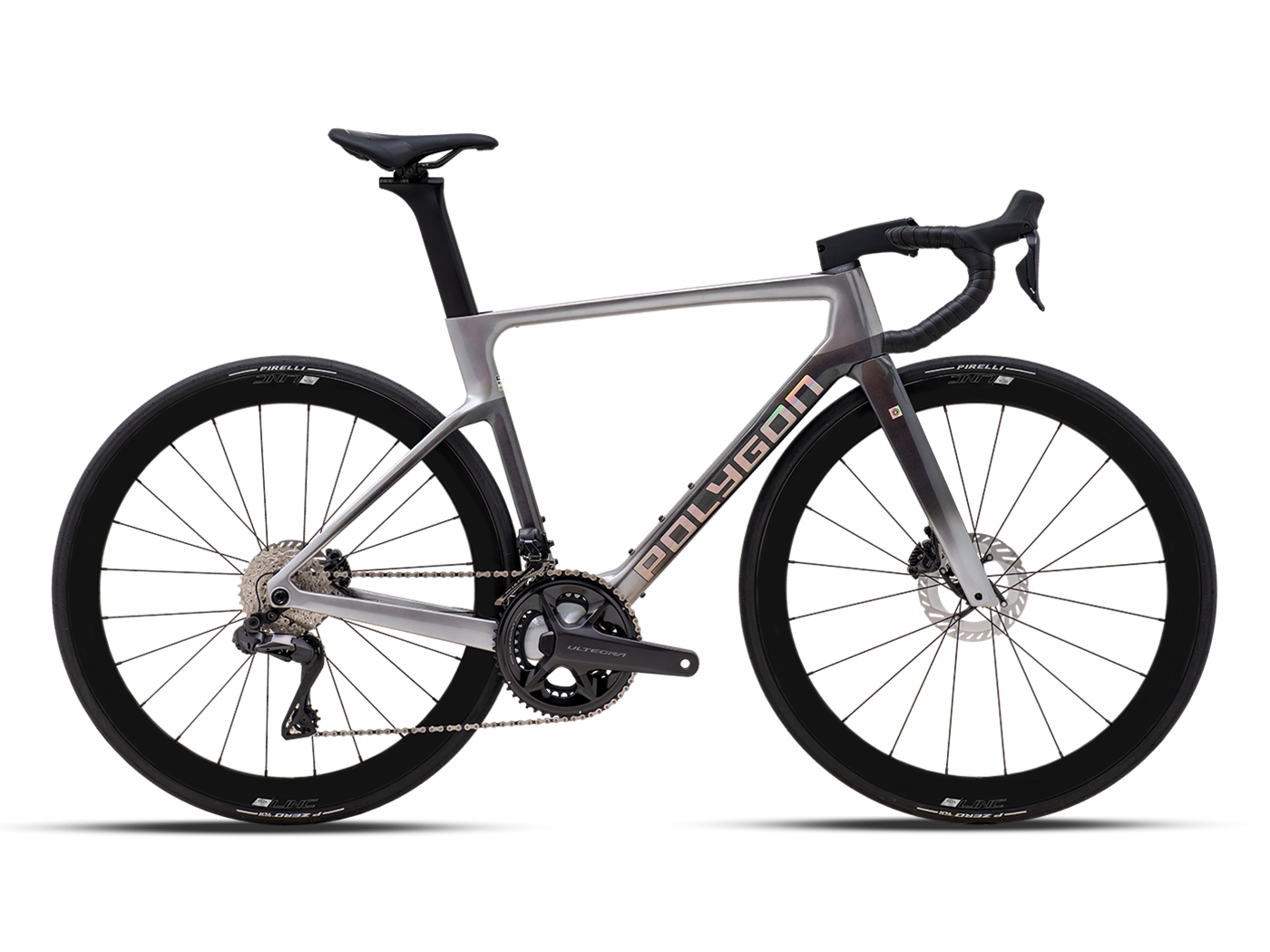

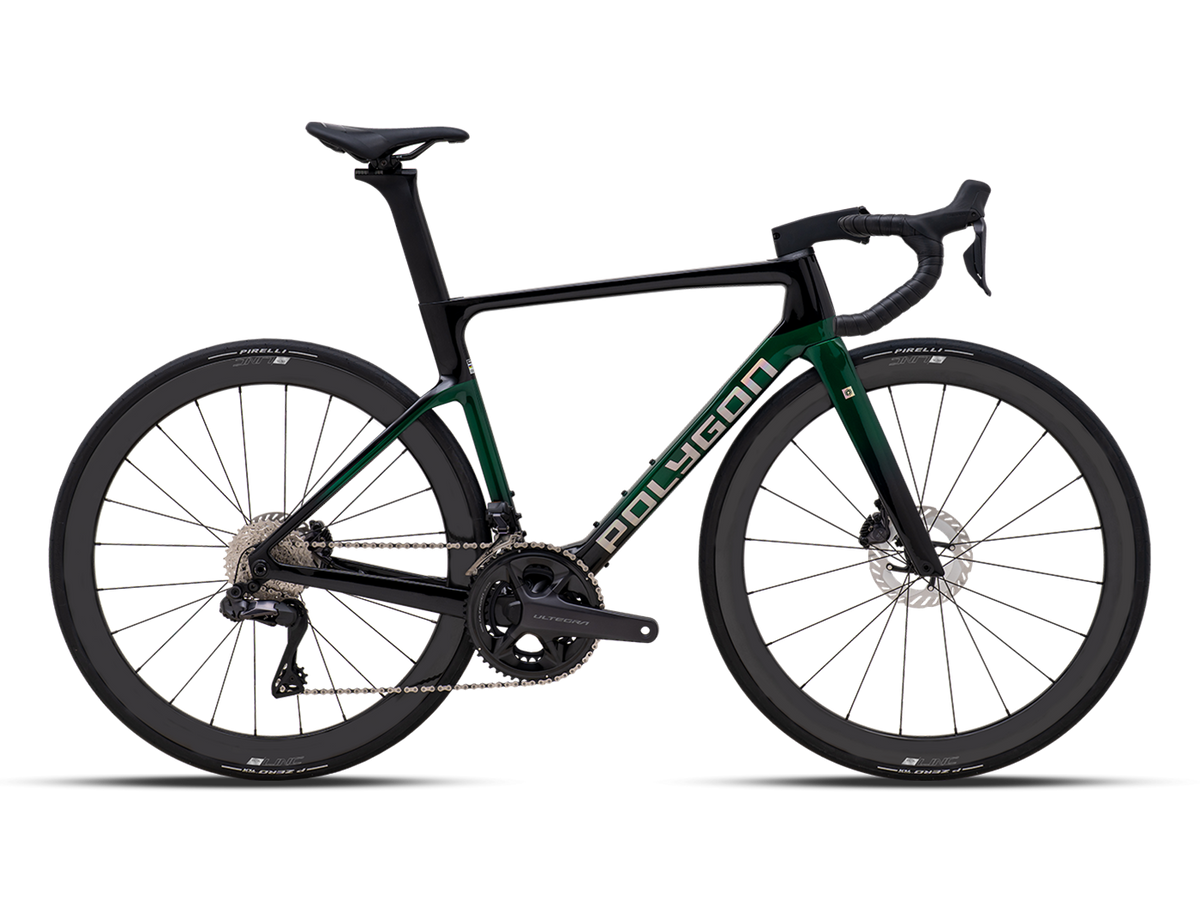

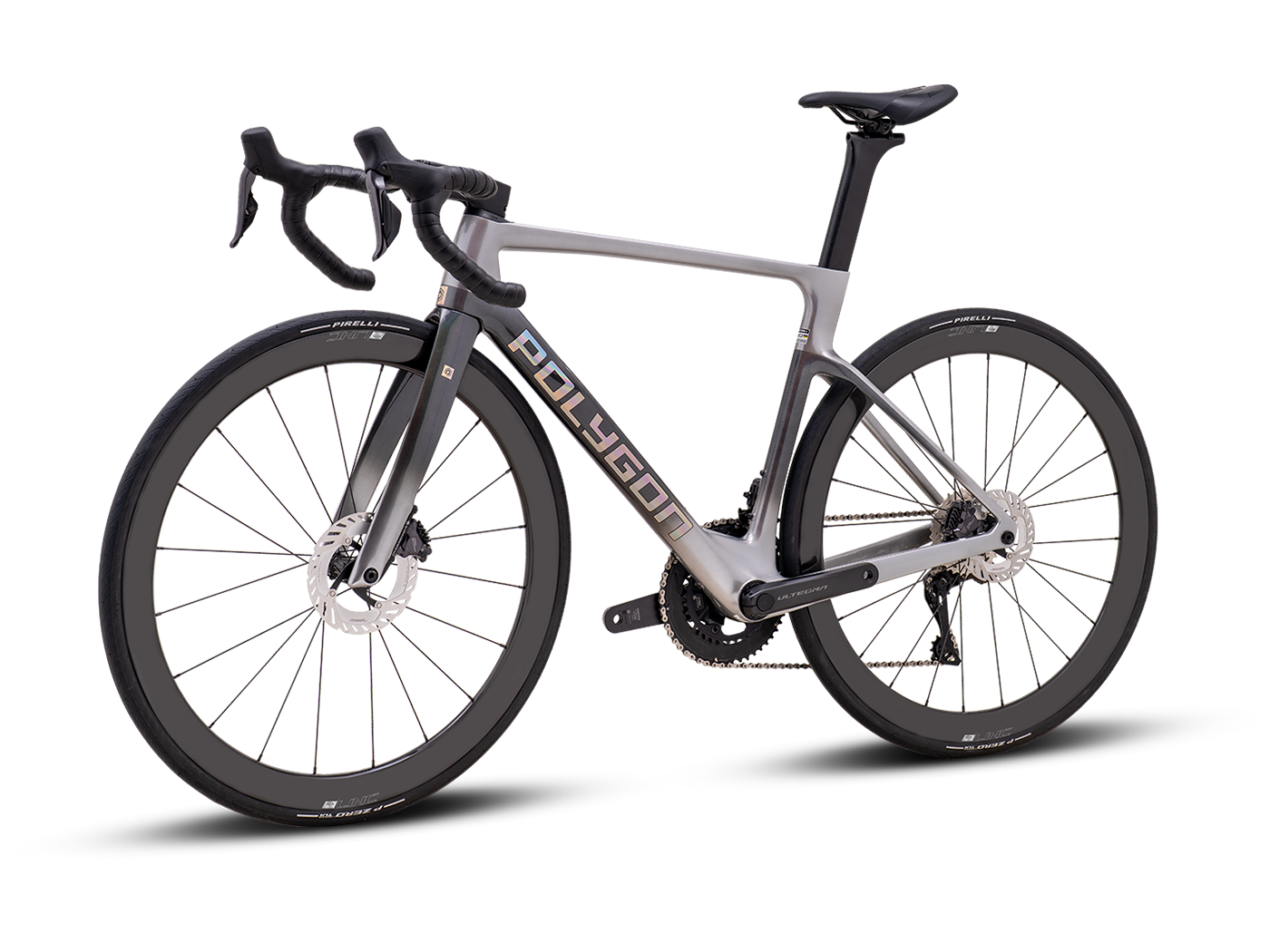

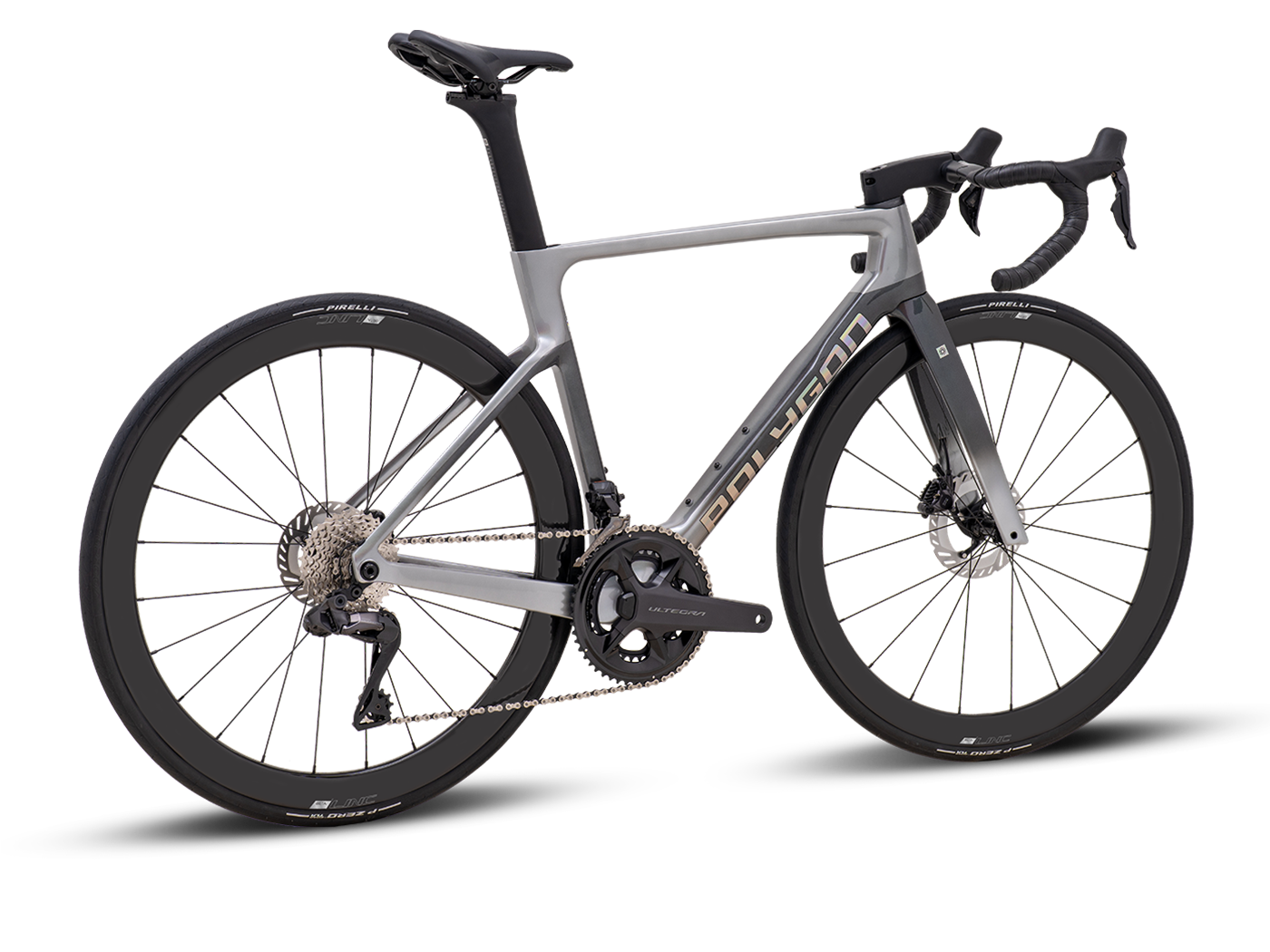

Polygon HELIOS A8 Di2
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 503343014
- Available: Instock
- Collections: Bikes, Performance Picks, Polygon, Road Bikes
- Type: Road Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon HELIOS A8 Di2 is made for rides where you want a dependable road bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ACX PERFORMANCE UCI APPROVED, Fork: ACX PERFORMANCE UCI APPROVED, and Crank: SHIMANO ULTEGRA FC-R8100 52/36T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable road bike
- Brand: Polygon
- Category: Road Bikes
- Frameset: ACX PERFORMANCE UCI APPROVED
- Fork: ACX PERFORMANCE UCI APPROVED
- Crank: SHIMANO ULTEGRA FC-R8100 52/36T
- Cassette: SHIMANO ULTEGRA CS-R8101-12 11-34T
- Rear Derailleur: SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ACX PERFORMANCE UCI APPROVED |
|---|---|
| Fork | ACX PERFORMANCE UCI APPROVED |
| Crank | SHIMANO ULTEGRA FC-R8100 52/36T |
| Cassette | SHIMANO ULTEGRA CS-R8101-12 11-34T |
| Rear Derailleur | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH |
| Shifter | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED |
| Brake Lever | SHIMANO ULTEGRA ST-R8170 |
| Brake Caliper | SHIMANO ULTEGRA HYDRAULIC DISC |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ACX PERFORMANCE UCI APPROVED | |
| Fork | ACX PERFORMANCE UCI APPROVED | |
| Frame Color | MIDNIGHT PINE / CHROME ROCKET | |
| Decal Color | HOLOGRAPHIC SILVER | |
| Shifter | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED | |
| Crank | SHIMANO ULTEGRA FC-R8100 52/36T | |
| Cassette | SHIMANO ULTEGRA CS-R8101-12 11-34T | |
| Rear Derailleur | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH | |
| BB | TOKEN T47 85.5 FOR 24mm SPINDLE | |
| Chain | KMC X12 EPT 12-SPEED | |
| Saddle | LINC FLUX2, CR-MO ø 7mm | |
| Seatpost | CARBON AERO, DxL: AERO 35 x 351mm | |
| Handlebar | LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL) | |
| Handlestem | CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: (-7.5)degree | |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 | |
| Wheel Set | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED | |
| Wheel Size | 700C | |
| Tire | PIRELLI PZERO ROAD TLR 700x28C | |
| Rim | F: CARBON 622-22 20H FOR TYRE 622-28/62 DISC TUBELESS READY / R: CARBON 622-22 24H FOR TYRE 622-28/62 DISC TUBELESS READY | |
| Hub | F: ALLOY THRU AXLE 12x100mm 20H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK | |
| Spokes | F: STAINLESS DOUBLE BUTTED NDS:278mm DS:280mm / R: STAINLESS DOUBLE BUTTED NDS:272mm DS:274mm | |
| Brake Lever | SHIMANO ULTEGRA ST-R8170 | |
| Brake Caliper | SHIMANO ULTEGRA HYDRAULIC DISC | |
| Rotor | SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK |
| Size | Rider height (cm) |
|---|---|
| XXS | 151-161 |
| XS | 154-164 |
| S | 162-170 |
| M | 168-176 |
| L | 174-181 |
| XL | 180-187 |
| Measurement | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| A Seat Tube Length | 420 | 457 | 489 | 499 | 518 | 536 |
| B Seat Tube Angle | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| C Effective Seat Tube Angle | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| D Head Tube Length | 100 | 110 | 120 | 130 | 150 | 170 |
| E Head Tube Angle | 71.3 | 71.5 | 72.3 | 72.5 | 72.8 | 73 |
| F Effective Top Tube | 513 | 529 | 540 | 556 | 570 | 598 |
| G Bb Height | 266 | 268.5 | 271 | 271 | 272.5 | 272.5 |
| H Bb Offset | 78 | 75.5 | 73 | 73 | 71.5 | 71.5 |
| I Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| J Wheelbase | 976 | 988 | 985 | 996 | 1005 | 1024 |
| K Frame Reach | 375 | 385 | 390 | 400 | 405 | 420 |
| L Frame Stack | 503 | 511 | 523 | 533 | 551 | 571 |
| M Standover Height | 685 | 720 | 752 | 761 | 780 | 799 |
