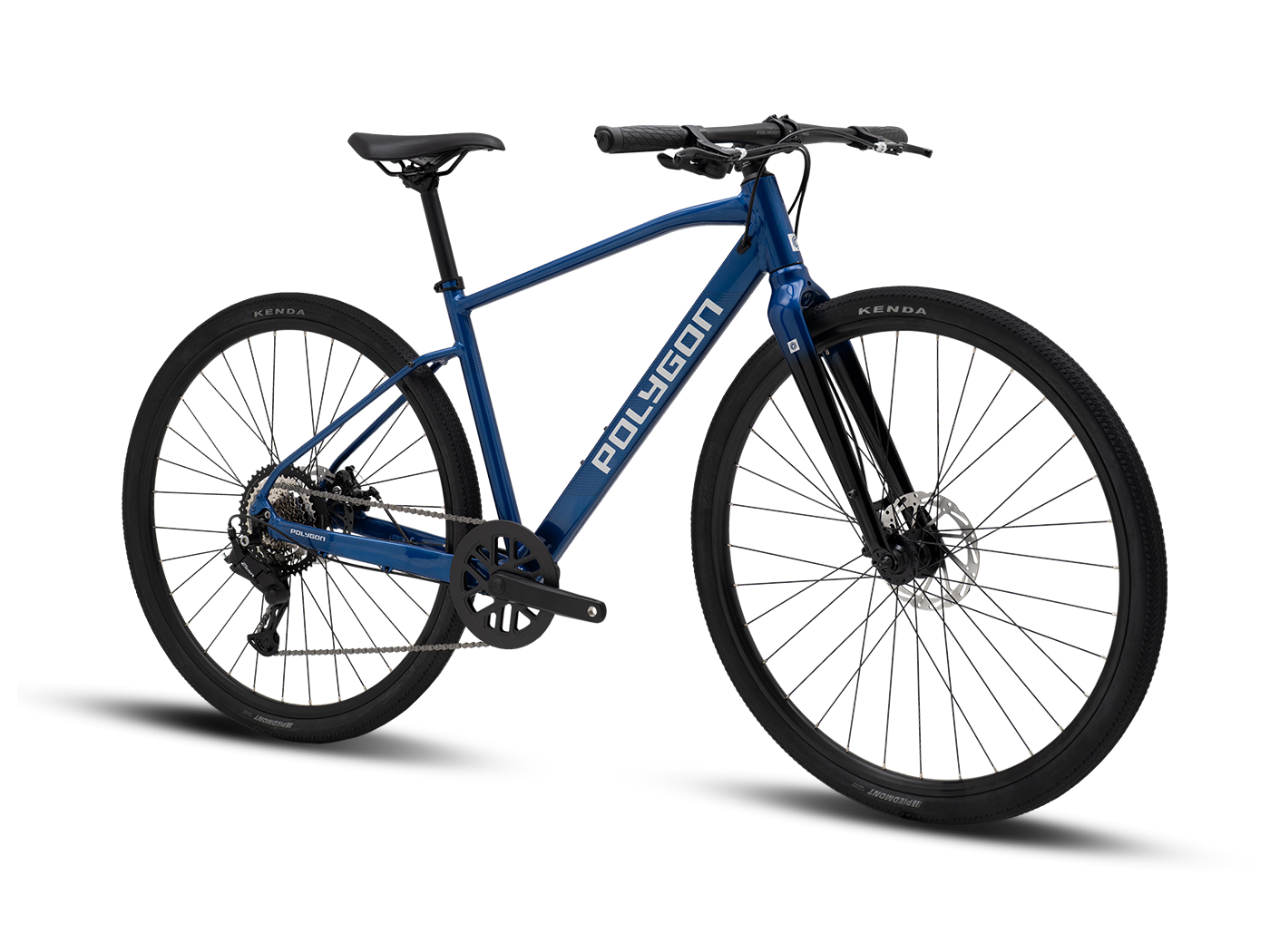

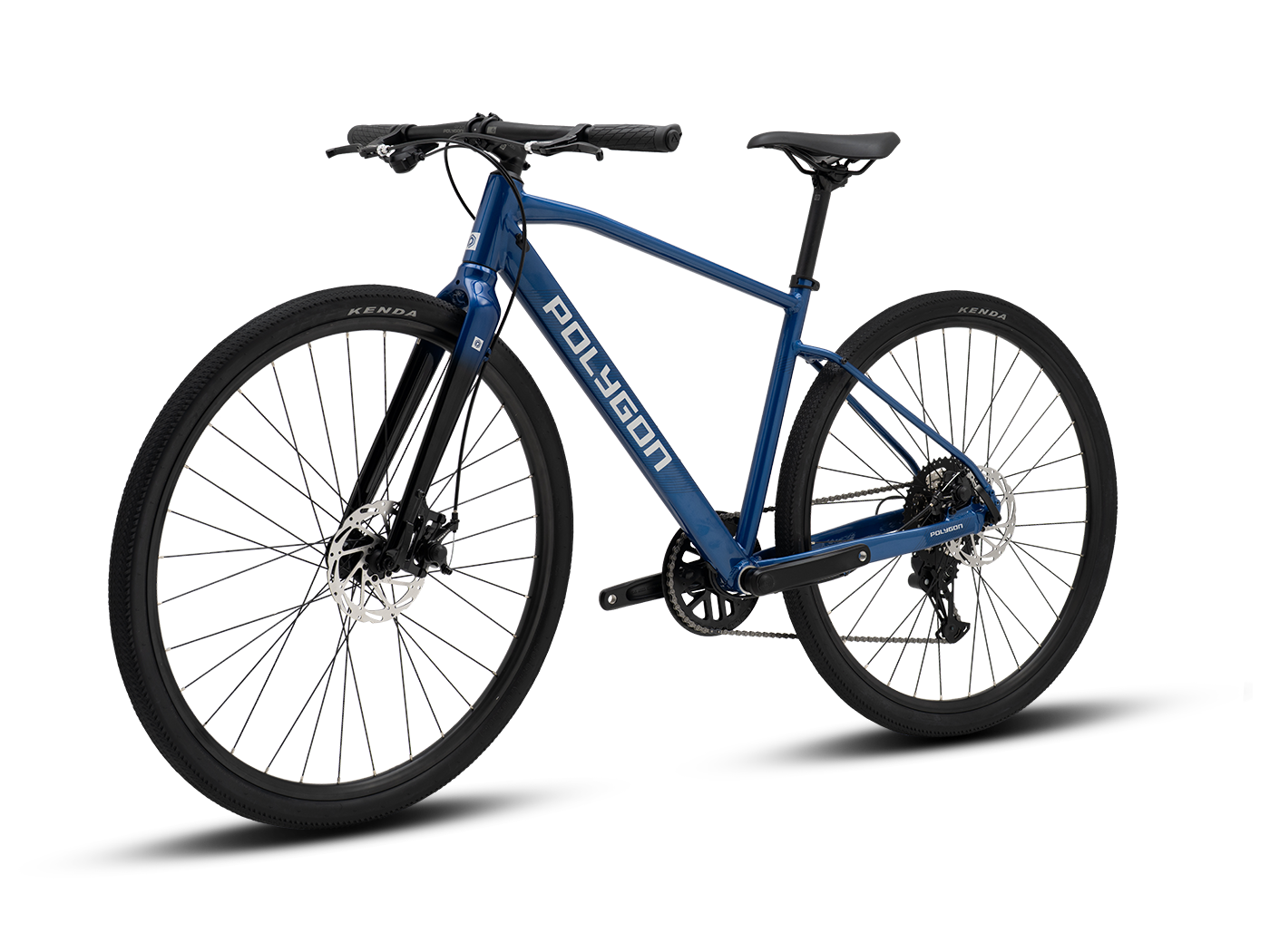

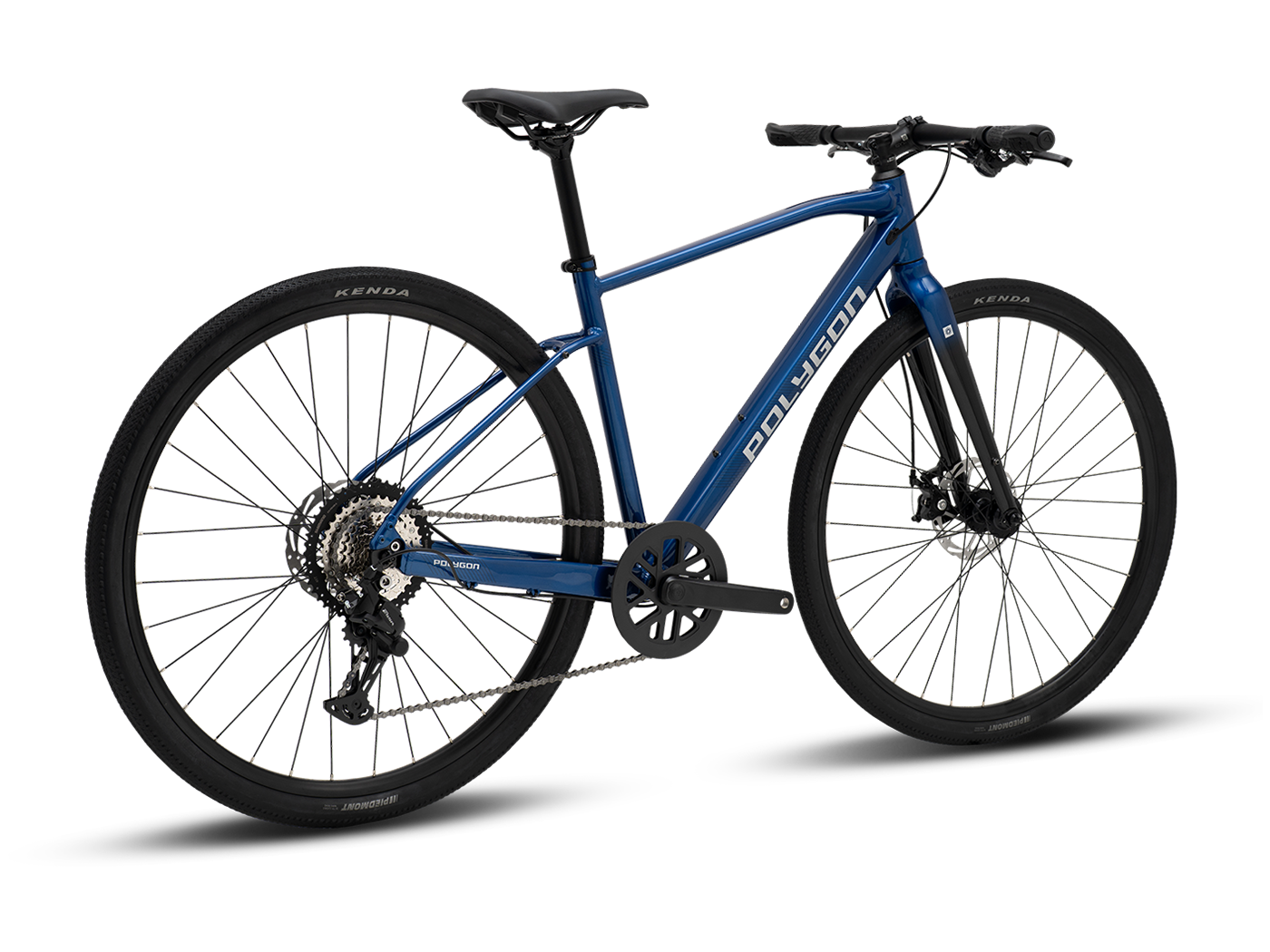

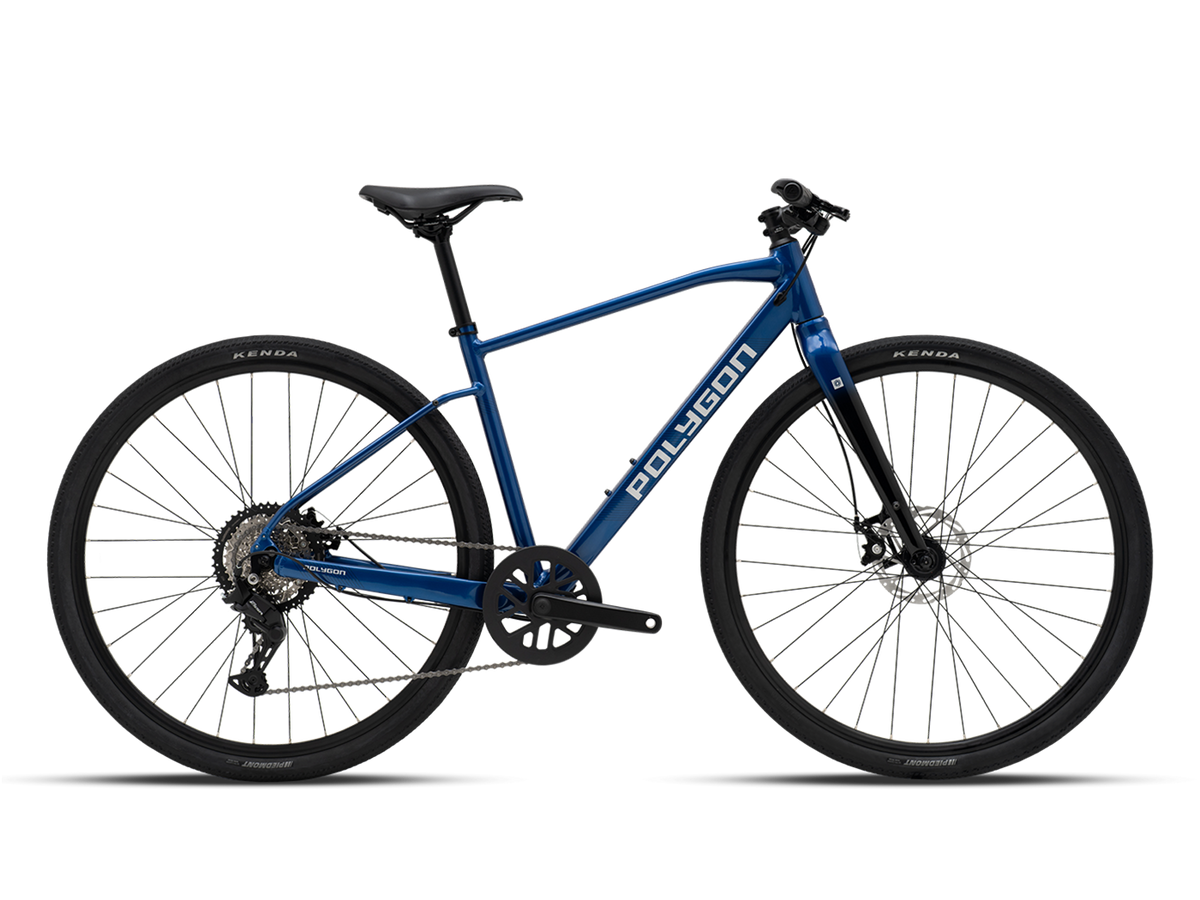

Polygon PATH 2
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 503347001
- Available: Instock
- Collections: Bikes, Hybrid Bikes, Polygon
- Type: Hybrid Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon PATH 2 is made for rides where you want a dependable hybrid bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ALX URBAN FITNESS, Fork: ALLOY RIGID, and Crank: ALLOY, 42T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable hybrid bike
- Brand: Polygon
- Category: Hybrid Bikes
- Frameset: ALX URBAN FITNESS
- Fork: ALLOY RIGID
- Crank: ALLOY, 42T
- Cassette: SHIMANO HG400, 11-45T
- Rear Derailleur: SHIMANO ESSA U2000 GS
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ALX URBAN FITNESS |
|---|---|
| Fork | ALLOY RIGID |
| Crank | ALLOY, 42T |
| Cassette | SHIMANO HG400, 11-45T |
| Rear Derailleur | SHIMANO ESSA U2000 GS |
| Shifter | SHIMANO ALTUS M315, 1x8 SPEED RAPIDFIRE |
| Brake Lever | TEKTRO TS-325A |
| Brake Caliper | TEKTRO M280 |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ALX URBAN FITNESS | |
| Fork | ALLOY RIGID | |
| Size | S, M, L, XL | |
| Frame Color | METALIC BLUE | |
| Decal Color | BLACK | |
| Shifter | SHIMANO ALTUS M315, 1x8 SPEED RAPIDFIRE | |
| Crank | ALLOY, 42T | |
| Cassette | SHIMANO HG400, 11-45T | |
| Rear Derailleur | SHIMANO ESSA U2000 GS | |
| BB | SQUARE BB, 68mm | |
| Chain | KMC Z-8.3 | |
| Pedal | ONE PIECE PP FLAT | |
| Saddle | LINC EASE | |
| Seatpost | POLYGON SPORT, DXL: 27.2x350mm, OFFSET: 15mm, SEA CLAMP: 31.8mm BOLT | |
| Handlebar | POLYGON SPORT, W: 680mm, BB: 31.8mm, R/D: 0mm, B: 6degree | |
| Handlestem | POLYGON SPORT, EXT: 75mm, BB: 31.8mm, R/D: 41mm | |
| Headset | THREADLES SEMI-INTEGRATED, IS 44/28.6 | IS 44/30 | |
| Wheel Set | ALLOY DOUBLE WALL 32H | |
| Wheel Size | 700C | |
| Tire | KENDA 700x40C 622x40 | |
| Rim | ALLOY DOUBLE WALL FV H:20 622X21 32H FOR TYRE 622-28/62 DISC | |
| Hub | F: ALLOY DISC BRAKE M9x100mm 32H 6 BOLT / R: ALLOY DISC BRAKE 10x135mm 32H 6BOLT FOR SPROCKET | |
| Spokes | F: STAINLESS 14G NDS:290 & DS:290 / R: STAINLESS 14G NDS:290 & DS:290 | |
| Brake Lever | TEKTRO TS-325A | |
| Brake Caliper | TEKTRO M280 | |
| Rotor | TEKTRO TR 160-52, 160mm |
| Size | Rider height (cm) |
|---|---|
| S | 150-163 |
| M | 163-175 |
| L | 175-188 |
| XL | 188-195 |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| A Seat Tube Length | 430 | 460 | 490 | 520 |
| B Seat Tube Angle | 74.5 | 74.5 | 74 | 73.5 |
| C Effective Seat Tube Angle | 74.5 | 74.5 | 74 | 73.5 |
| D Head Tube Length | 95 | 125 | 155 | 185 |
| E Head Tube Angle | 70.5 | 70.5 | 71 | 71 |
| F Effective Top Tube | 530 | 548 | 572 | 596 |
| G Bb Height | 284 | 284 | 284 | 284 |
| H Bb Offset | 72 | 72 | 72 | 72 |
| I Chainstay Length | 440 | 440 | 440 | 440 |
| J Wheelbase | 1028 | 1048 | 1064 | 1083 |
| K Frame Reach | 379 | 390 | 399 | 409 |
| L Frame Stack | 543 | 571 | 603 | 630 |
| M Standover Height | 705 | 734 | 766 | 794 |
