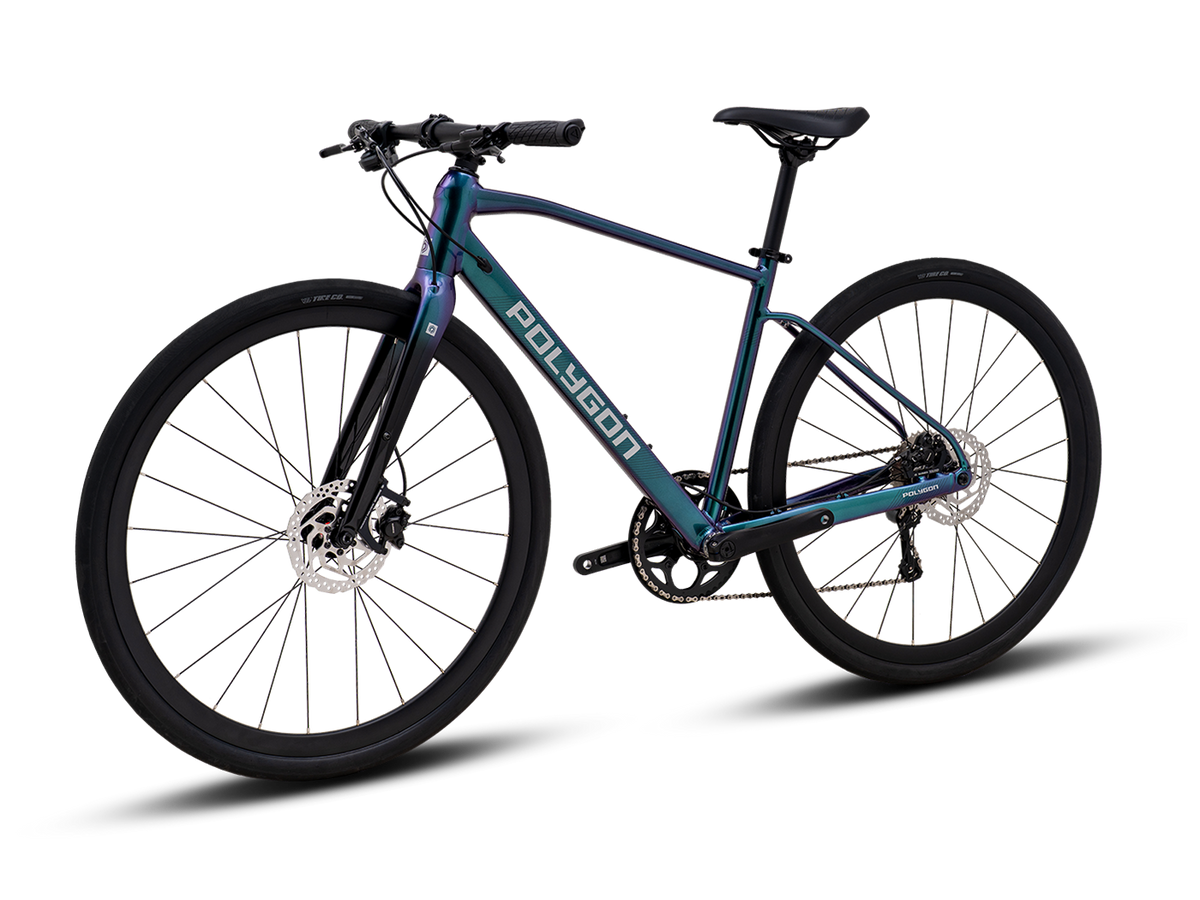

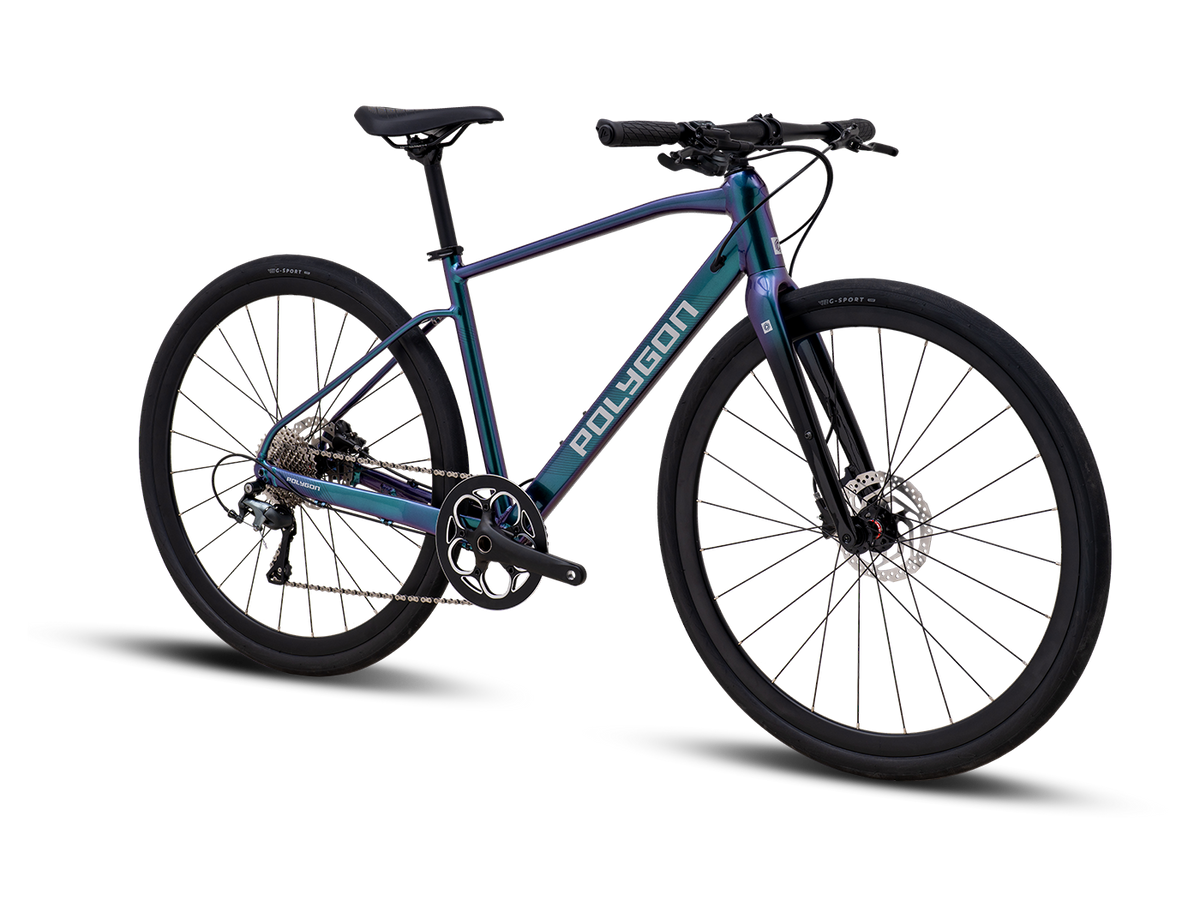

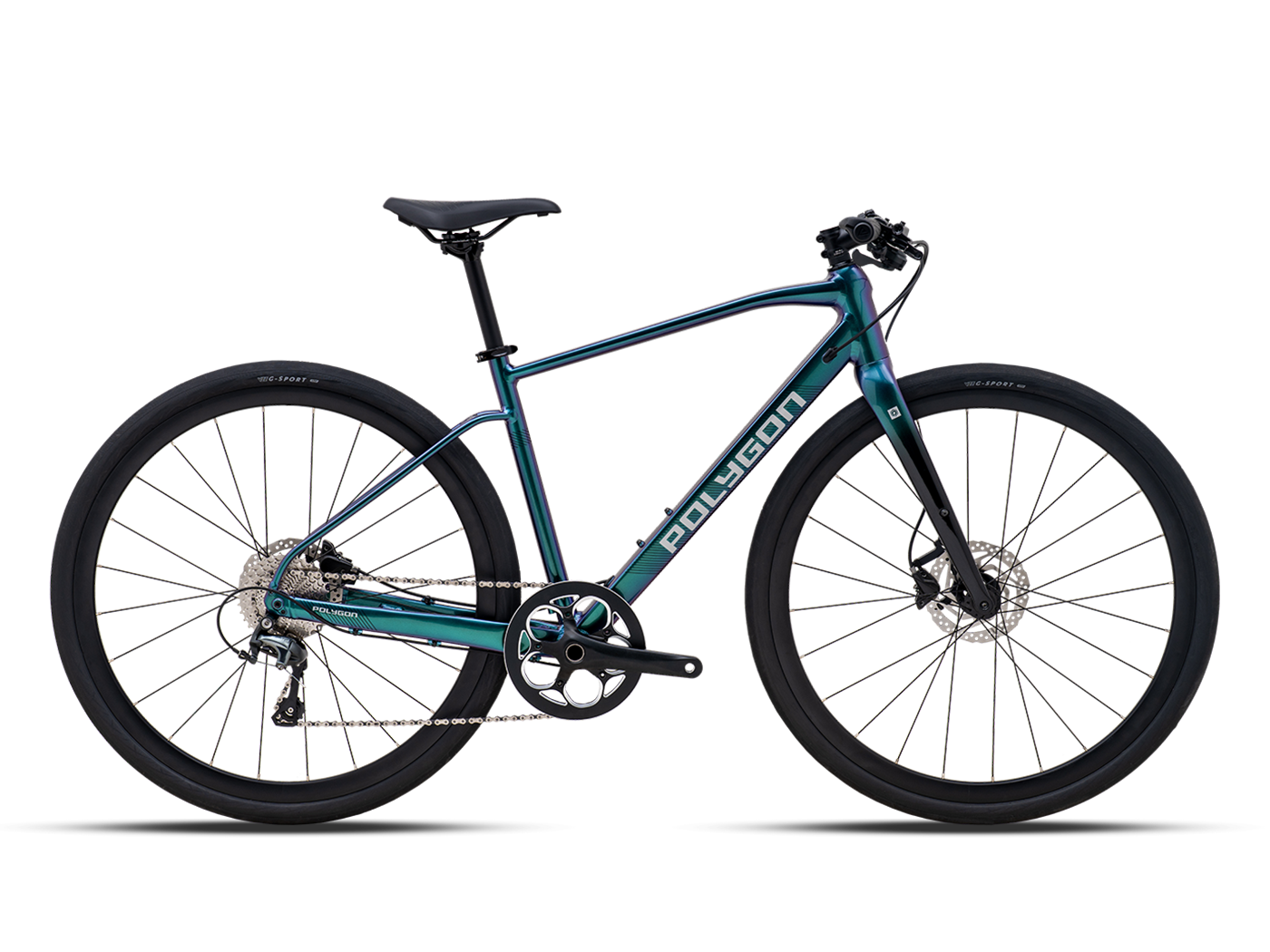

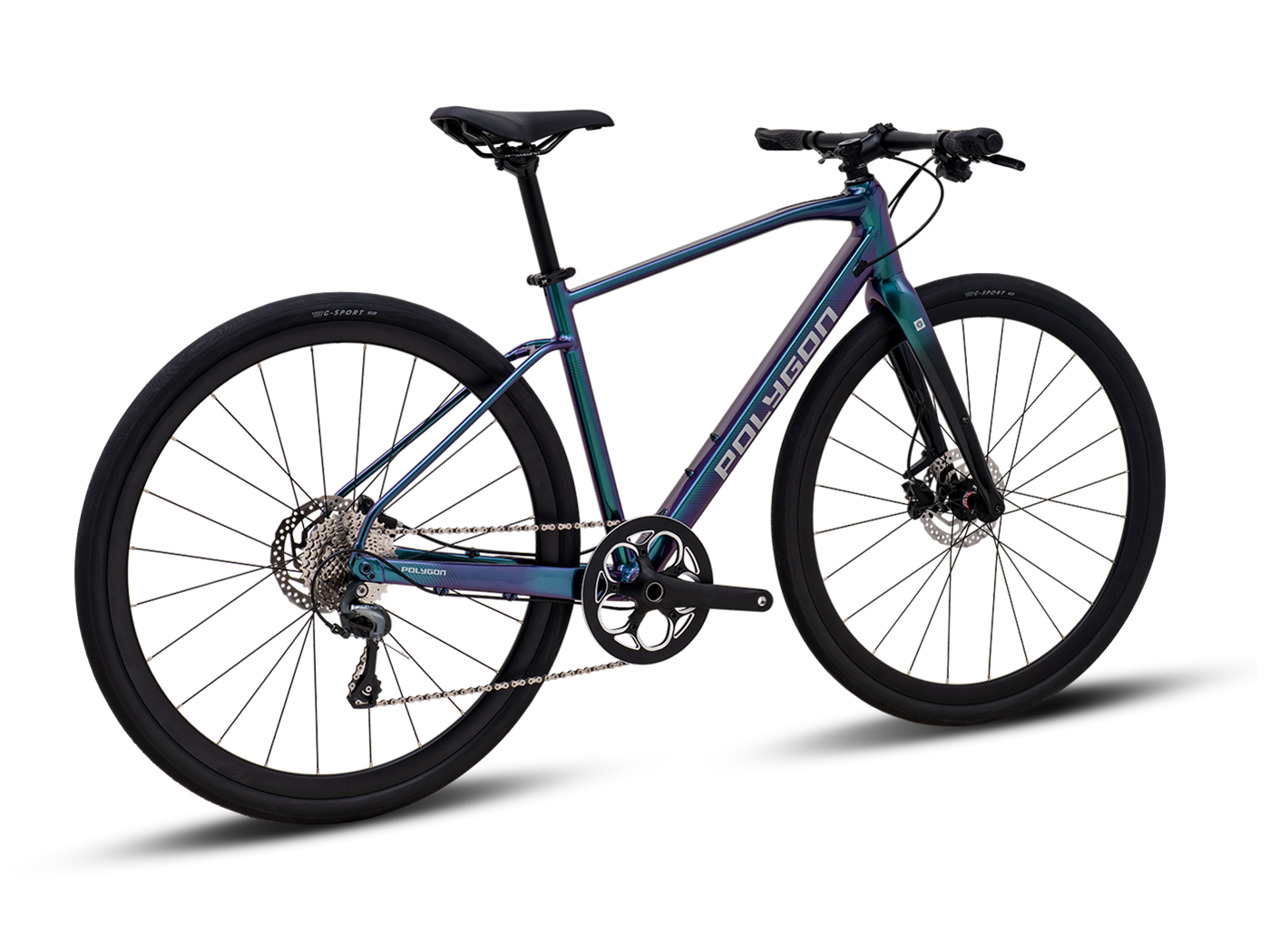

Polygon PATH 4
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 503349001
- Available: Instock
- Collections: Bikes, Hybrid Bikes, Polygon
- Type: Hybrid Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon PATH 4 is made for rides where you want a dependable hybrid bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ALX URBAN FITNESS, Fork: CARBON RIGID, and Crank: PROWHEEL OUNCE, 48T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable hybrid bike
- Brand: Polygon
- Category: Hybrid Bikes
- Frameset: ALX URBAN FITNESS
- Fork: CARBON RIGID
- Crank: PROWHEEL OUNCE, 48T
- Cassette: SHIMANO TIAGRA CS HG500-10
- Rear Derailleur: SHIMANO TIAGRA RD-4700
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ALX URBAN FITNESS |
|---|---|
| Fork | CARBON RIGID |
| Crank | PROWHEEL OUNCE, 48T |
| Cassette | SHIMANO TIAGRA CS HG500-10 |
| Rear Derailleur | SHIMANO TIAGRA RD-4700 |
| Shifter | SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE PLUS |
| Brake Lever | SHIMANO BL-MT200 |
| Brake Caliper | SHIMANO BR-MT200 HYDRAULIC DISC |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ALX URBAN FITNESS | |
| Fork | CARBON RIGID | |
| Size | S, M, L, XL | |
| Frame Color | CHAMELEON GREEN PURPLE | |
| Decal Color | BLACK | |
| Shifter | SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE PLUS | |
| Crank | PROWHEEL OUNCE, 48T | |
| Cassette | SHIMANO TIAGRA CS HG500-10 | |
| Rear Derailleur | SHIMANO TIAGRA RD-4700 | |
| BB | PROWHEEL 68mm | |
| Chain | KMC X10 | |
| Pedal | ONE PIECE PP FLAT | |
| Saddle | SELLE ROYAL EASE | |
| Seatpost | POLYGON EXPERT, DxL: 27,2 x 350mm | |
| Handlebar | POLYGON EXPERT, W: 680mm, BB: 31,8mm, R/D: 0mm, B: 6 degree | |
| Handlestem | POLYGON EXPERT, EXT: 60mm (S, M) / 80mm (L, XL), BB: 31,8mm, R/D: 41mm | |
| Headset | FSA TH-881 W/ SEALED BEARING, IS 42/28.6 | IS 52/40 | |
| Wheel Set | ALLOY DOUBLE WALL 24H | |
| Wheel Size | 700C | |
| Tire | VEE GOODIE GOODIE 700x35C 622x35 | |
| Rim | ALLOY DOUBLE WALL FV H: 30 622X19 24H FOR TYRE 622-28/62 DISC | |
| Hub | F: ALLOY DISC BRAKE 12x100mm 24H / R: ALLOY DISC BRAKE 12x142mm 24H CENTERLOCK FOR SPROCKET | |
| Spokes | F: STAINLESS 14G NDS:276 & DS:280 / R: STAINLESS 14G NDS:278 & DS:278 | |
| Brake Lever | SHIMANO BL-MT200 | |
| Brake Caliper | SHIMANO BR-MT200 HYDRAULIC DISC | |
| Rotor | SHIMANO SM-RT26, 160mm |
| Size | Rider height (cm) |
|---|---|
| S | 150-163 |
| M | 163-175 |
| L | 175-188 |
| XL | 188-195 |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Height (cm) | 150-163 | 163-175 | 175-188 | 188-195 |
| A Seat Tube Length | 430 | 460 | 490 | 520 |
| B Seat Tube Angle | 74.5 | 74.5 | 74 | 73.5 |
| C Effective Seat Tube Angle | 74.5 | 74.5 | 74 | 73.5 |
| D Head Tube Length | 115 | 145 | 175 | 205 |
| E Head Tube Angle | 70.5 | 70.5 | 71 | 71 |
| F Effective Top Tube | 530 | 548 | 572 | 596 |
| G Bb Height | 286 | 286 | 286 | 286 |
| H Bb Offset | 72 | 72 | 72 | 72 |
| I Chainstay Length | 440 | 440 | 440 | 440 |
| J Wheelbase | 1033 | 1053 | 1069 | 1088 |
| K Frame Reach | 380 | 390 | 400 | 410 |
| L Frame Stack | 541 | 570 | 600 | 628 |
| M Standover Height | 703 | 735 | 763 | 793 |
