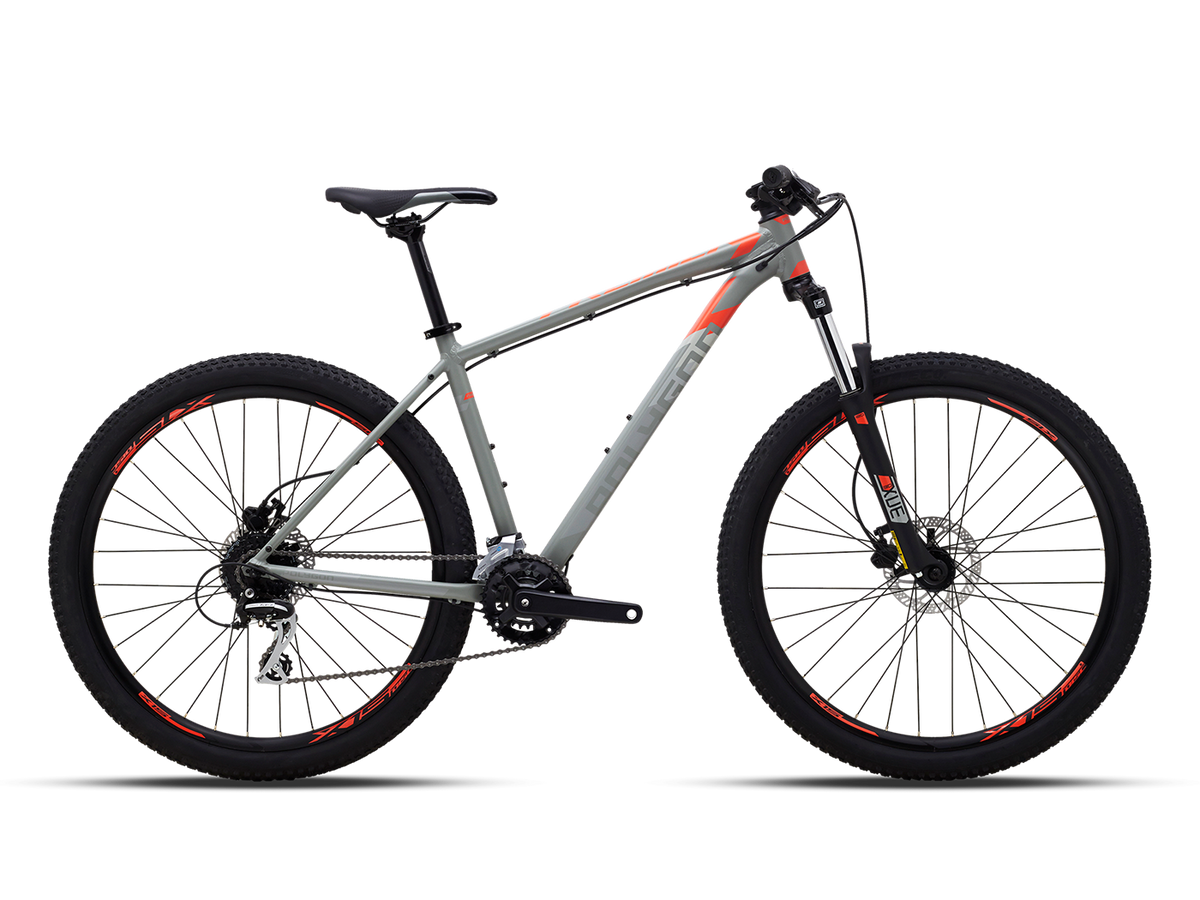

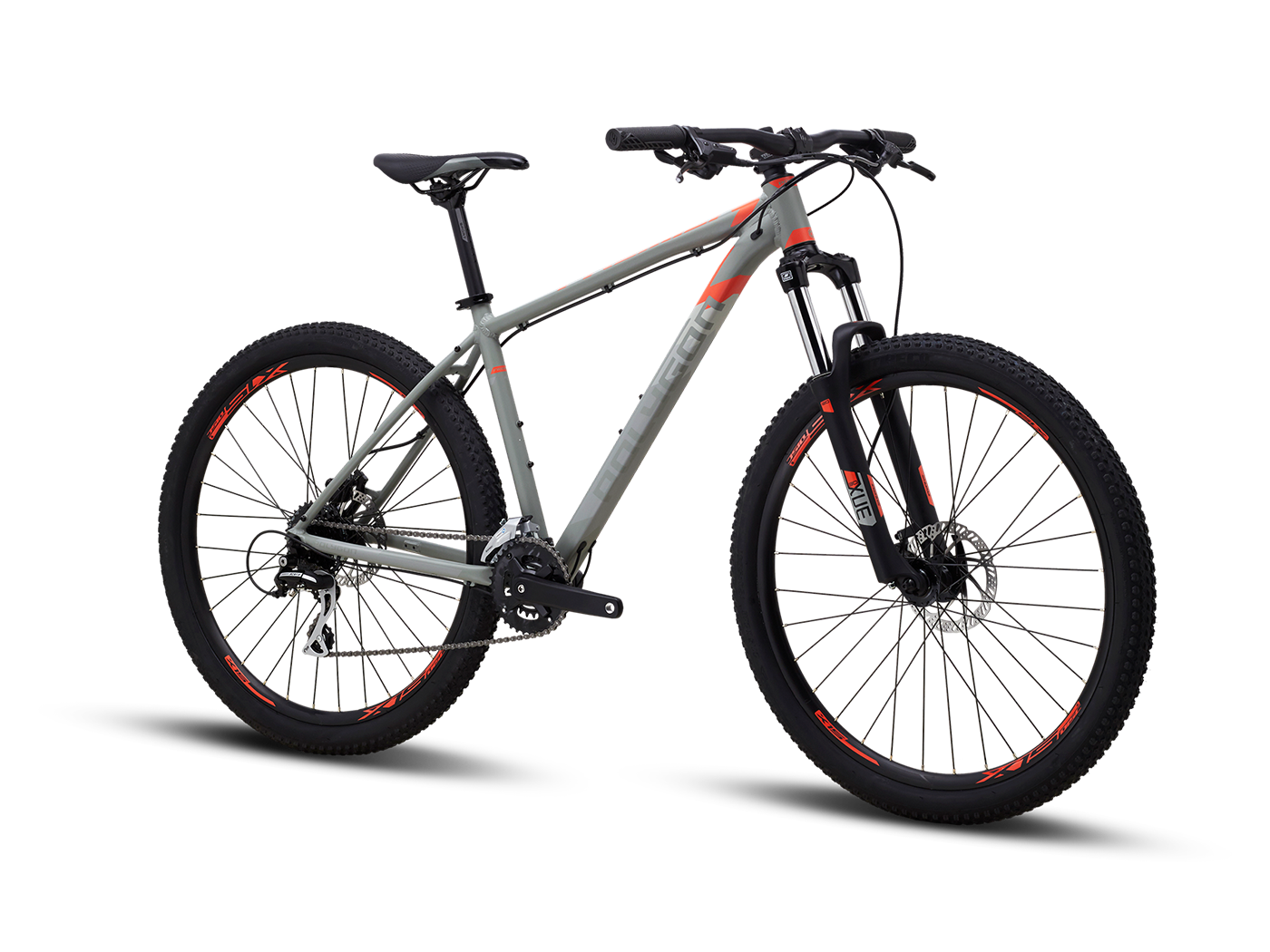

Polygon PREMIER 4
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 502875001
- Available: Instock
- Collections: Bikes, Mountain Bikes, Polygon
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon PREMIER 4 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ALUTECH XC SPORT FRAME, Fork: SUNTOUR XCM 120mm TRAVEL, and Crank: ALLOY CRANK 36/22T, 170MM. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Polygon
- Category: Mountain Bikes
- Frameset: ALUTECH XC SPORT FRAME
- Fork: SUNTOUR XCM 120mm TRAVEL
- Crank: ALLOY CRANK 36/22T, 170MM
- Cassette: SHIMANO CS-HG200 12-32T
- Rear Derailleur: SHIMANO ACERA RD-M3020 DIRECT ATTACH
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ALUTECH XC SPORT FRAME |
|---|---|
| Fork | SUNTOUR XCM 120mm TRAVEL |
| Crank | ALLOY CRANK 36/22T, 170MM |
| Cassette | SHIMANO CS-HG200 12-32T |
| Rear Derailleur | SHIMANO ACERA RD-M3020 DIRECT ATTACH |
| Shifter | SHIMANO ALTUS SL-M315, 2x8-SPEED TRIGGER |
| Brake Lever | HYDRAULIC DISC BRAKE |
| Brake Caliper | HYDRAULIC DISC BRAKE |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ALUTECH XC SPORT FRAME | |
| Fork | SUNTOUR XCM 120mm TRAVEL | |
| Rear Shock | - | |
| Shifter | SHIMANO ALTUS SL-M315, 2x8-SPEED TRIGGER | |
| Crank | ALLOY CRANK 36/22T, 170MM | |
| Cassette | SHIMANO CS-HG200 12-32T | |
| Rear Derailleur | SHIMANO ACERA RD-M3020 DIRECT ATTACH | |
| BB | CARTRIDGE BEARING 68x127mm | |
| Chain | KMC Z-8.3 | |
| Pedal | PP PEDALS W/ PP CAGE | |
| Saddle | ENTITY VOID SADDLE, STEEL ø7mm | |
| Seatpost | ALLOY SEATPOST, 27.2x350mm | |
| Handlebar | ENTITY SPORT ALLOY, EXT: 740mm, BB: 31.8mm, R/D: 20mm, B: 6degree | |
| Handlestem | ENTITY SPORT ALLOY, EXT: 45mm, BB: 31.8mm, R/D: 0degree | |
| Headset | ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30 | |
| Wheel Set | ALLOY DOUBLE WALL | |
| Wheel Size | 27.5"/29" | |
| Tire | DELI 27.5/29" "x2.25" | |
| Rim | - | |
| Hub | - | |
| Spokes | - | |
| Brake Lever | HYDRAULIC DISC BRAKE | |
| Brake Caliper | HYDRAULIC DISC BRAKE | |
| Rotor | 1600mm 6-BOLTS |
| Size | Rider height (cm) |
|---|---|
| S | 152-165 |
| M | 162-175 |
| L | 172-185 |
| Measurement | S | M | L |
|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 |
| A Seat Tube Length | 406 | 456 | 506 |
| B Seat Tube Angle | 73 | 73 | 73 |
| C Effective Seat Tube Angle | 73 | 73 | 73 |
| D Head Tube Length | 100 | 100 | 105 |
| E Head Tube Angle | 69 | 69 | 69 |
| F Effective Top Tube | 570 | 585 | 605 |
| G Bb Height | 299 | 299 | 299 |
| H Bb Offset | 47 | 47 | 47 |
| I Chainstay Length | 430 | 430 | 430 |
| J Wheelbase | 1072 | 1087 | 1107 |
| K Frame Reach | 383.5 | 398.5 | 417 |
| L Frame Stack | 610 | 610 | 615 |
| M Standover Height | 713 | 753 | 793 |
