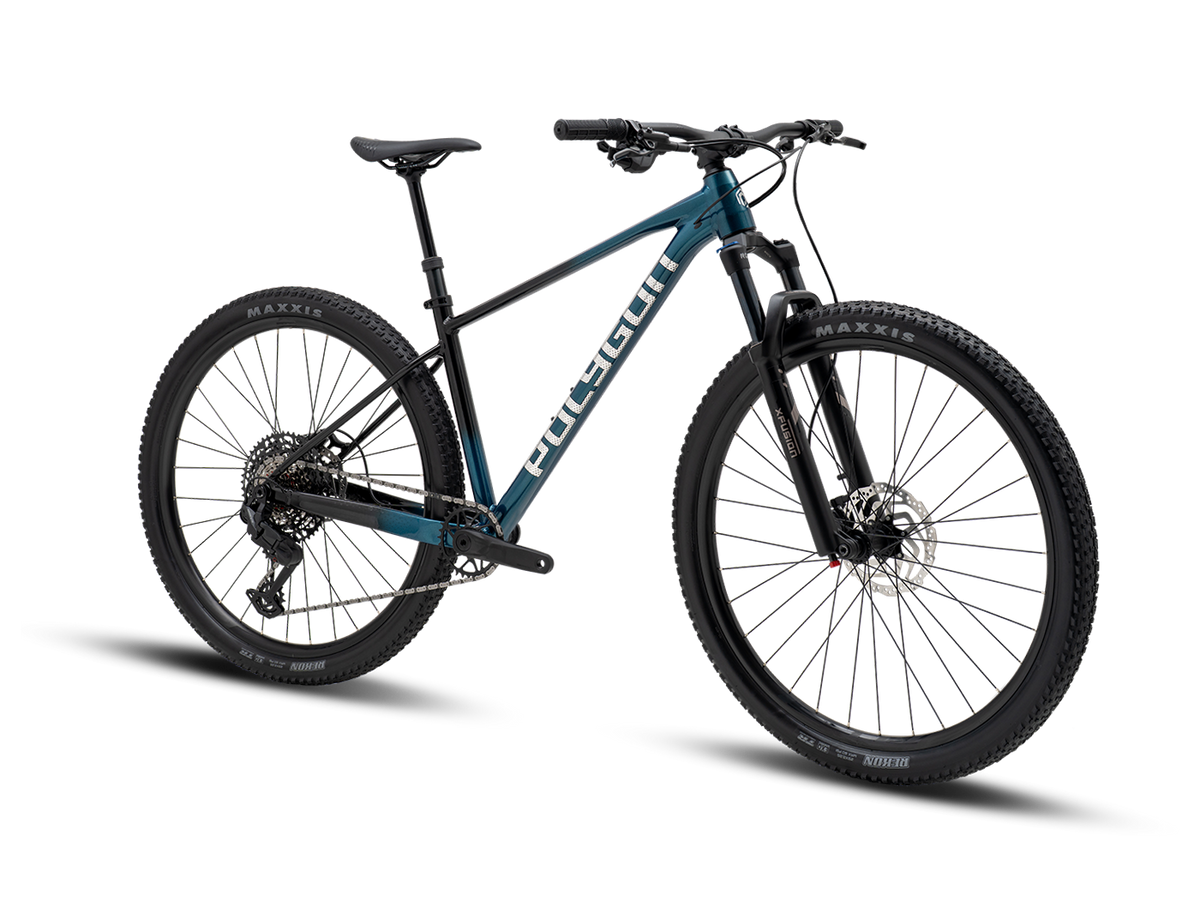

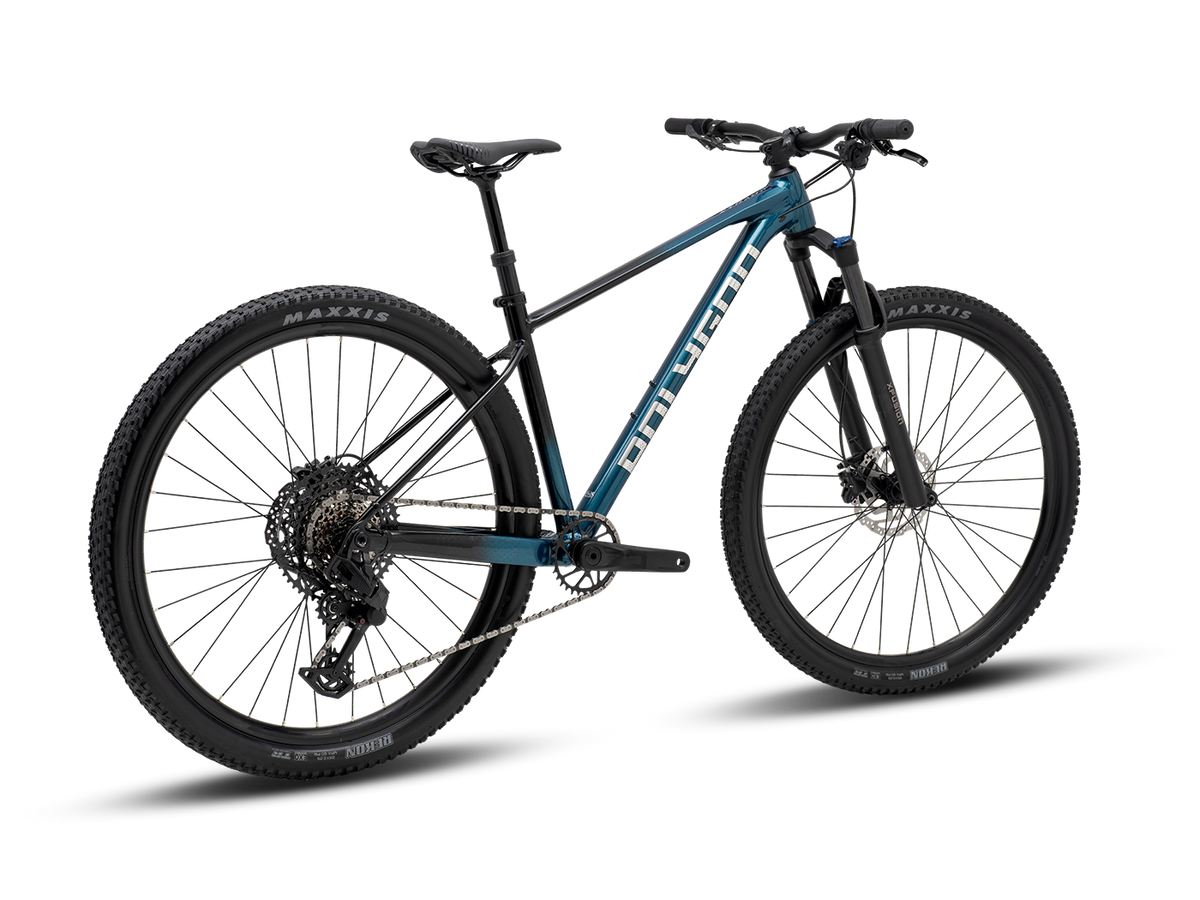

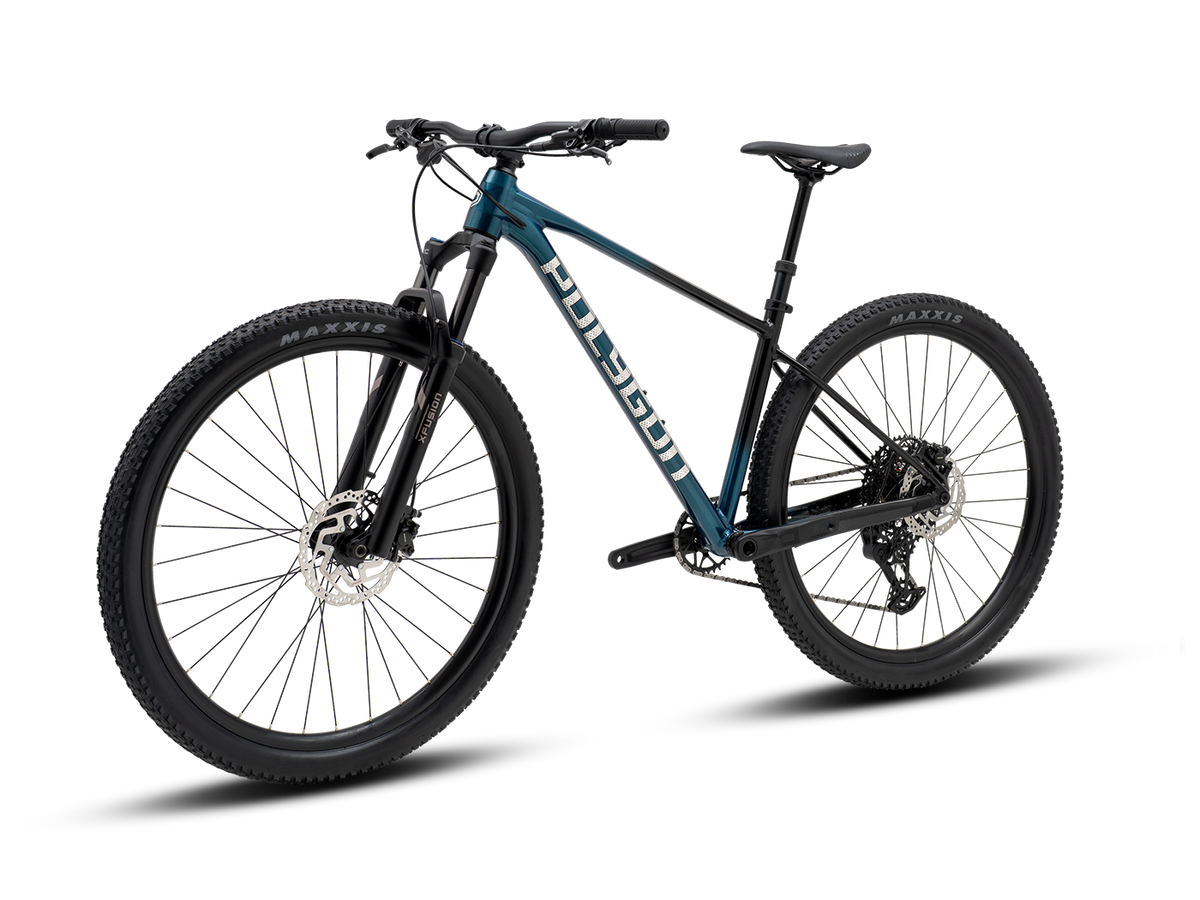

Polygon XTRADA 7
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 0.00 INR
Couldn't load pickup availability
- Sku: 503537001
- Available: Instock
- Collections: Bikes, Mountain Bikes, Polygon
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Polygon XTRADA 7 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frameset: ALX XC 29, Fork: X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE, and Crank: SRAM EAGLE 70 T-TYPE 32T. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Polygon
- Category: Mountain Bikes
- Frameset: ALX XC 29
- Fork: X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE
- Crank: SRAM EAGLE 70 T-TYPE 32T
- Cassette: SRAM CS-XS-1270-A1 12-SPEED 10-52T
- Rear Derailleur: SRAM RD-70-A1 T-TYPE
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frameset | ALX XC 29 |
|---|---|
| Fork | X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE |
| Crank | SRAM EAGLE 70 T-TYPE 32T |
| Cassette | SRAM CS-XS-1270-A1 12-SPEED 10-52T |
| Rear Derailleur | SRAM RD-70-A1 T-TYPE |
| Shifter | SRAM SL-70-A1 1x12-SPEED TRIGGER |
| Brake Lever | SHIMANO BL-MT200 |
| Brake Caliper | SHIMANO MT200 HYDRAULIC DISC BRAKE |
| Component | Specification | Frame size(s) |
|---|---|---|
| Frameset | ALX XC 29 | |
| Fork | X-FUSION MIGO RC DAMPER 32 120mm TRAVEL BOOST THRU AXLE | |
| Rear Shock | - | |
| Frame Color | BLUE BLACK | |
| Decal Color | SILVER BLACK | |
| Shifter | SRAM SL-70-A1 1x12-SPEED TRIGGER | |
| Crank | SRAM EAGLE 70 T-TYPE 32T | |
| Cassette | SRAM CS-XS-1270-A1 12-SPEED 10-52T | |
| Rear Derailleur | SRAM RD-70-A1 T-TYPE | |
| BB | DUB BSA 73mm | |
| Chain | EAGLE 70 T-TYPE | |
| Pedal | ONE PIECE PP BODY | |
| Saddle | LINC VOID SADDLE, STEEL ø7mm | |
| Seatpost | DROPPER POST 150mm TRAVEL, DXL: 30.9 x 429mm, SEAT CLAMP: 34.9mm BOLT TYPE | |
| Handlebar | POLYGON SPORT ALLOY, W: 760mm, BB: 31.8mm, R/D: 20mm, BEND: 9degree | |
| Handlestem | POLYGON SPORT ALLOY, EXT: 40mm, BB: 31.8mm, R/D: 7degree | |
| Headset | ZERO STACK W/ CAGED BEARING, ZS 44/28.6 | ZS 56/40 | |
| Wheel Set | ALLOY WHEELS | |
| Tire | MAXXIS REKON 29"X2.25" TLR | |
| Rim | F: ALLOY DOUBLE WALL H:23mm W: 30mm 32H FOR TYRE 622-68 / R: ALLOY DOUBLE WALL H:23mm W: 30mm 32H FOR TYRE 622-68 | |
| Hub | F: NOVATEC D041SB THRU AXLE 15x110mm 32H CENTERLOCK / R: NOVATEC D442SB THRU AXLE 12x148mm 32H CENTERLOCK | |
| Spokes | F: 14G STAINLESS NDS: 288mm DS: 290mm 12mm NIPPLE BRASS / R: 14G STAINLESS NDS: 288mm DS: 286mm 12mm NIPPLE BRASS | |
| Brake Lever | SHIMANO BL-MT200 | |
| Brake Caliper | SHIMANO MT200 HYDRAULIC DISC BRAKE | |
| Rotor | SHIMANO SM-RT10 F: 180mm R: 160mm CENTERLOCK |
| Size | Rider height (cm) |
|---|---|
| S | 152-165 |
| M | 162-175 |
| L | 172-185 |
| XL | 182-195 |
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Height (cm) | 152-165 | 162-175 | 172-185 | 182-195 |
| A Seat Tube Length | 390 | 430 | 450 | 470 |
| B Seat Tube Angle | 73 | 73 | 73 | 73 |
| C Effective Seat Tube Angle | 74 | 74 | 72 | 74 |
| D Head Tube Length | 90 | 100 | 110 | 120 |
| E Head Tube Angle | 67 | 67 | 67 | 67 |
| F Effective Top Tube | 586 | 609 | 632 | 655 |
| G Bb Height | 313 | 313 | 313 | 313 |
| H Bb Offset | 60 | 60 | 60 | 60 |
| I Chainstay Length | 432 | 432 | 437 | 437 |
| J Wheelbase | 1121 | 1145 | 1174 | 1198 |
| K Frame Reach | 410 | 430 | 450 | 470 |
| L Frame Stack | 620 | 629 | 638 | 647 |
| M Standover Height | 724 | 756 | 772 | 788 |
