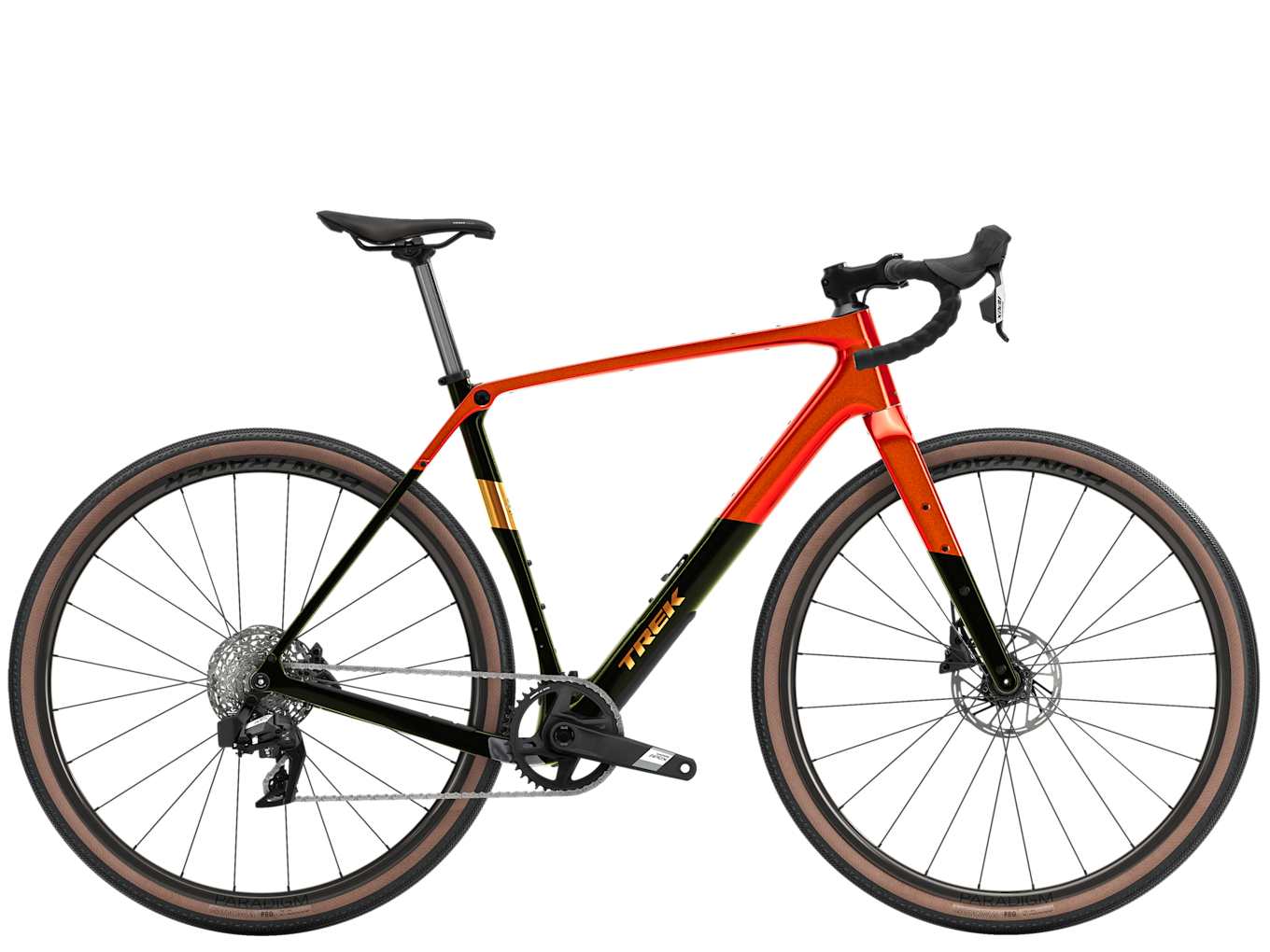

Trek Checkpoint SL 5 AXS Gen 3 - Lava/Black Olive

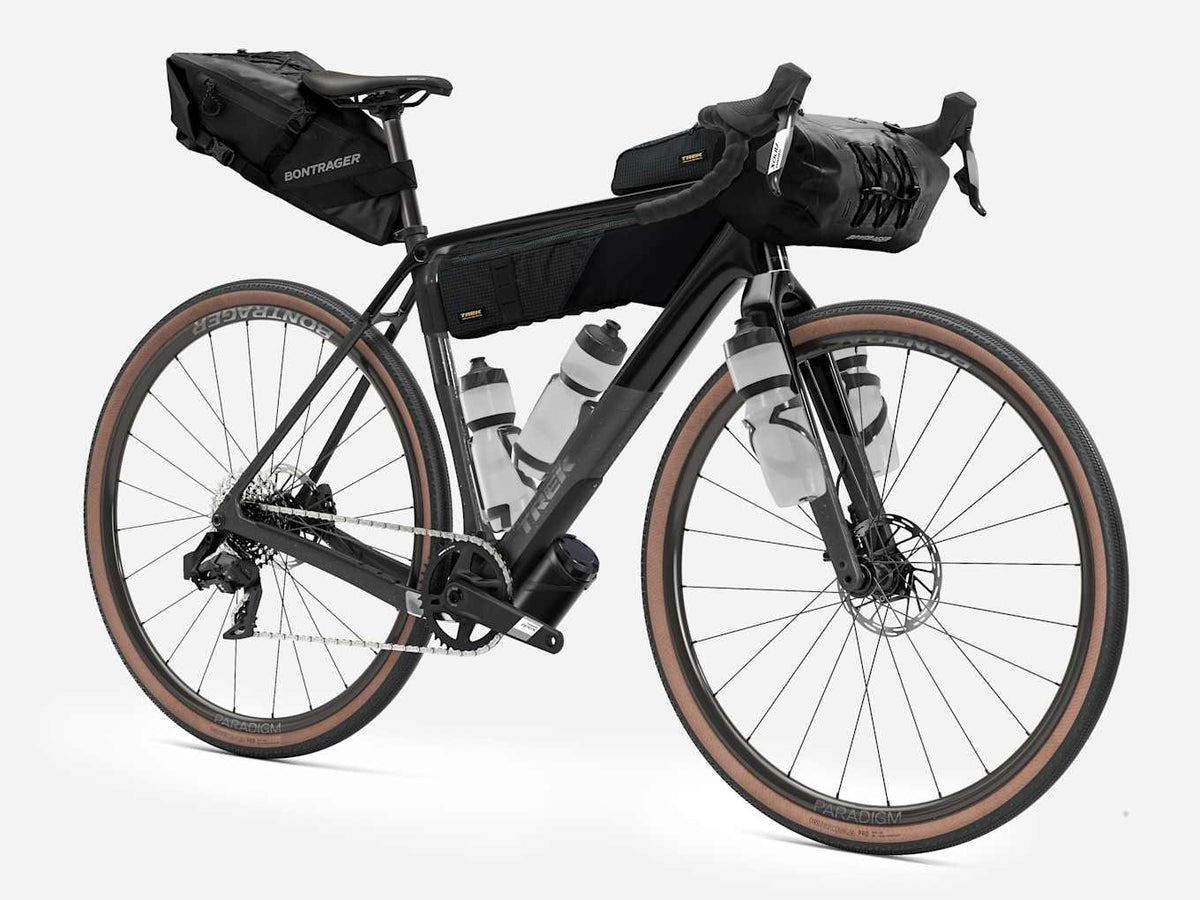

Trek Checkpoint SL 5 AXS Gen 3 product image 1

Trek Checkpoint SL 5 AXS Gen 3 product image 2

Trek Checkpoint SL 5 AXS Gen 3 product image 3

Trek Checkpoint SL 5 AXS Gen 3 product image 4

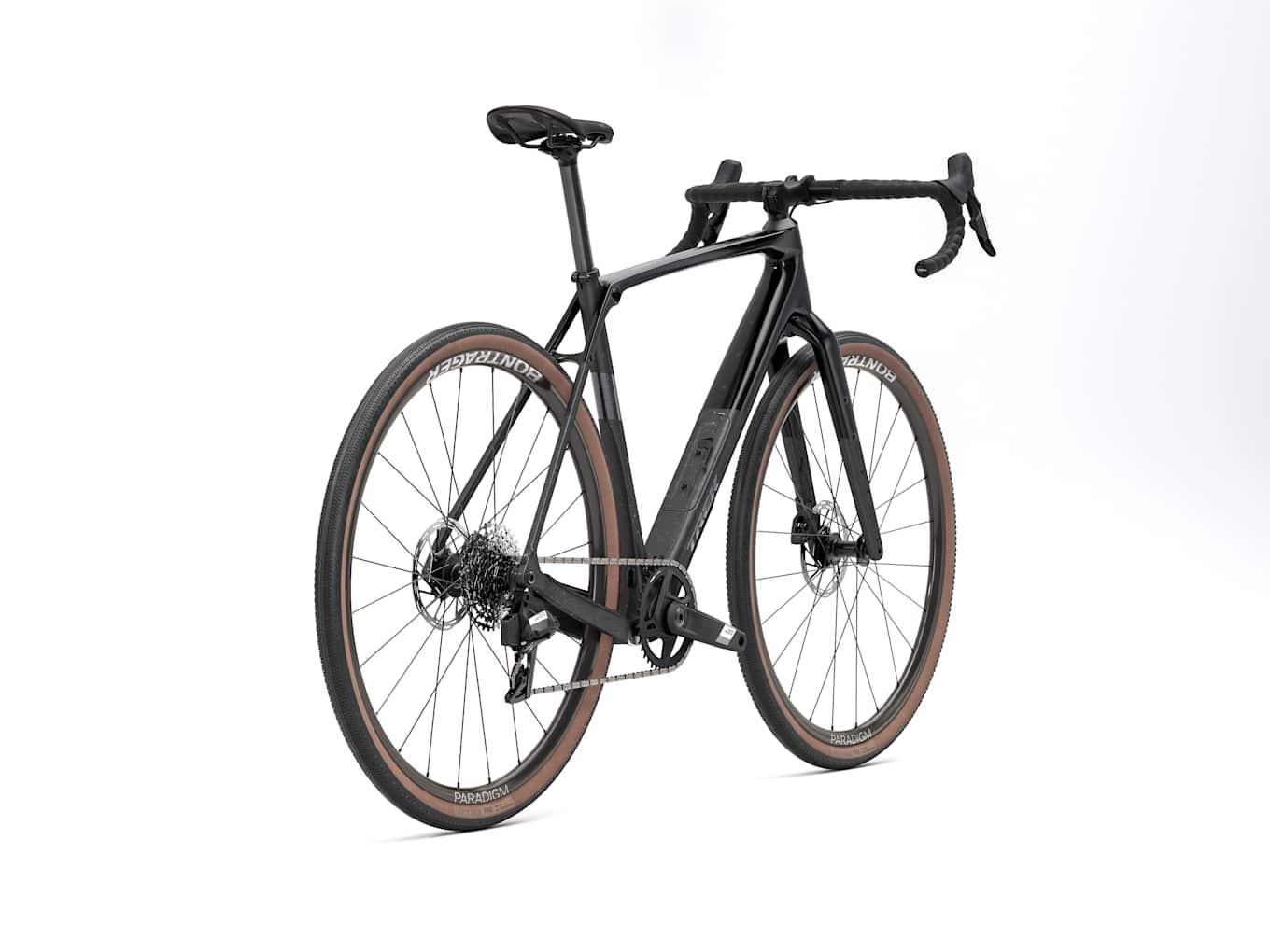

Trek Checkpoint SL 5 AXS Gen 3 product image 5

Trek Checkpoint SL 5 AXS Gen 3 product image 6

Trek Checkpoint SL 5 AXS Gen 3

Name: Trek Checkpoint SL 5 AXS Gen 3
Brand: Trek
SKU: 5321622
Price: 302699.0 INR
Availability: InStock

Trek Checkpoint SL 5 AXS Gen 3 is a gravel bike tuned for mixed-surface gravel rides, bikepacking days and rough-road distance. The platform is built around a 500 Series OCLV Carbon frame paired wi...

Size: XS

Recommended rider height: 4'8" - 5'2" / 143 - 158 cm

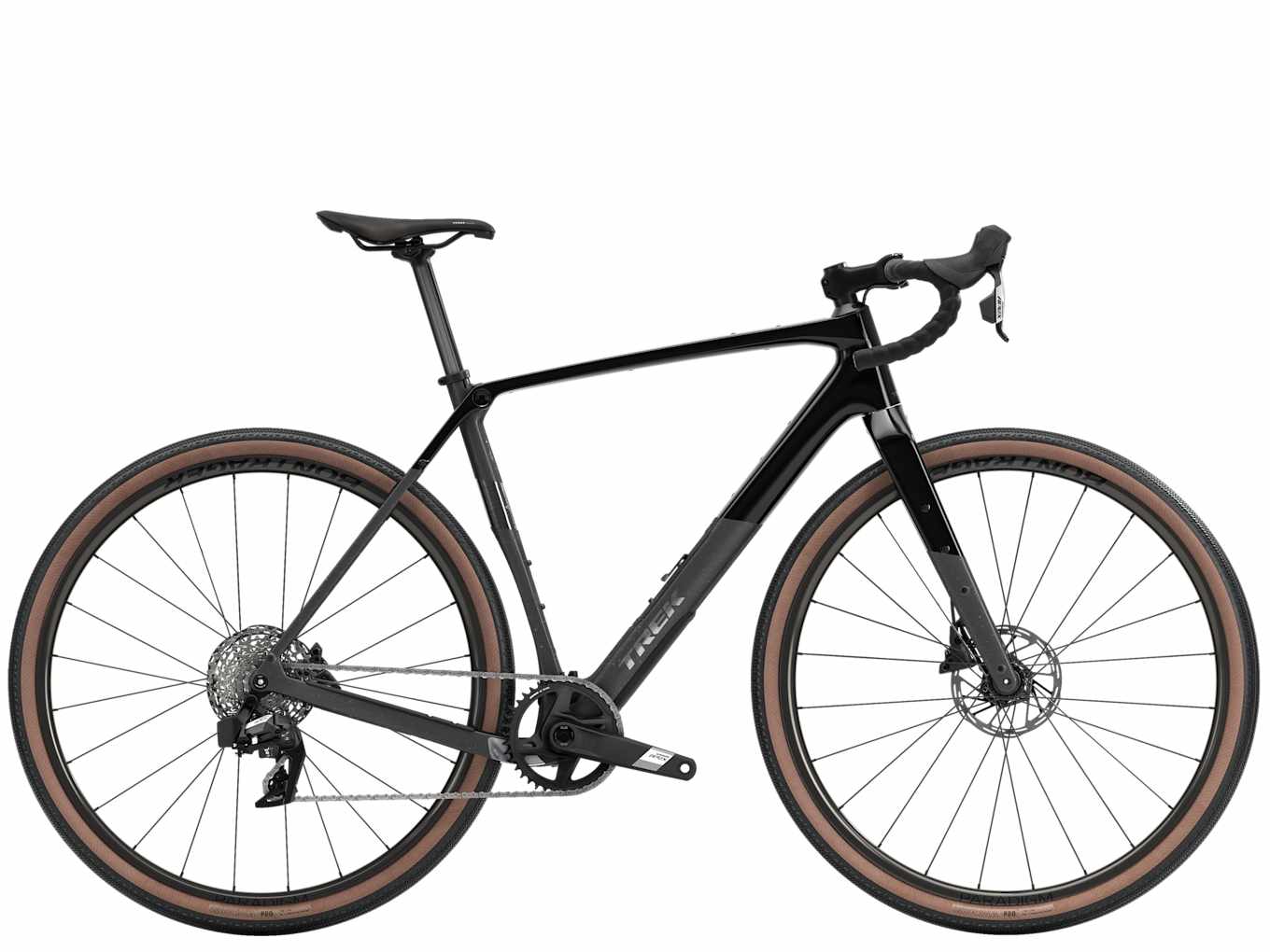

Color: Trek Black/Matte Carbon Smoke

Rs. 302,699.00 INR

I agree with Terms & Conditions

Sku: 5321622
Available: Instock
Collections: Bikes, Gravel & Adventure Bikes, Gravel Bikes, Trek
Type: Gravel Bike

Estimate delivery times: 3-5 days International.

Use code 'WELCOME15' for discount 15% on your first order.

Free shipping and returns: On all orders over $150.

Guarantee Safe Checkout:

Pairs well with

Trek Checkpoint SL 5 AXS Gen 3 is made for rides where you want a dependable gravel bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.

The main details to look at are Frame: 500 Series OCLV Carbon, Fork: Checkpoint, full carbon, and Wheels: Bontrager Paradigm 23, alloy. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.

Key features

Good for: rides where you want a dependable gravel bike
Brand: Trek
Category: Gravel Bikes
Frame: 500 Series OCLV Carbon
Fork: Checkpoint, full carbon
Wheels: Bontrager Paradigm 23, alloy
Tyres: Bontrager Girona Pro, 42 mm

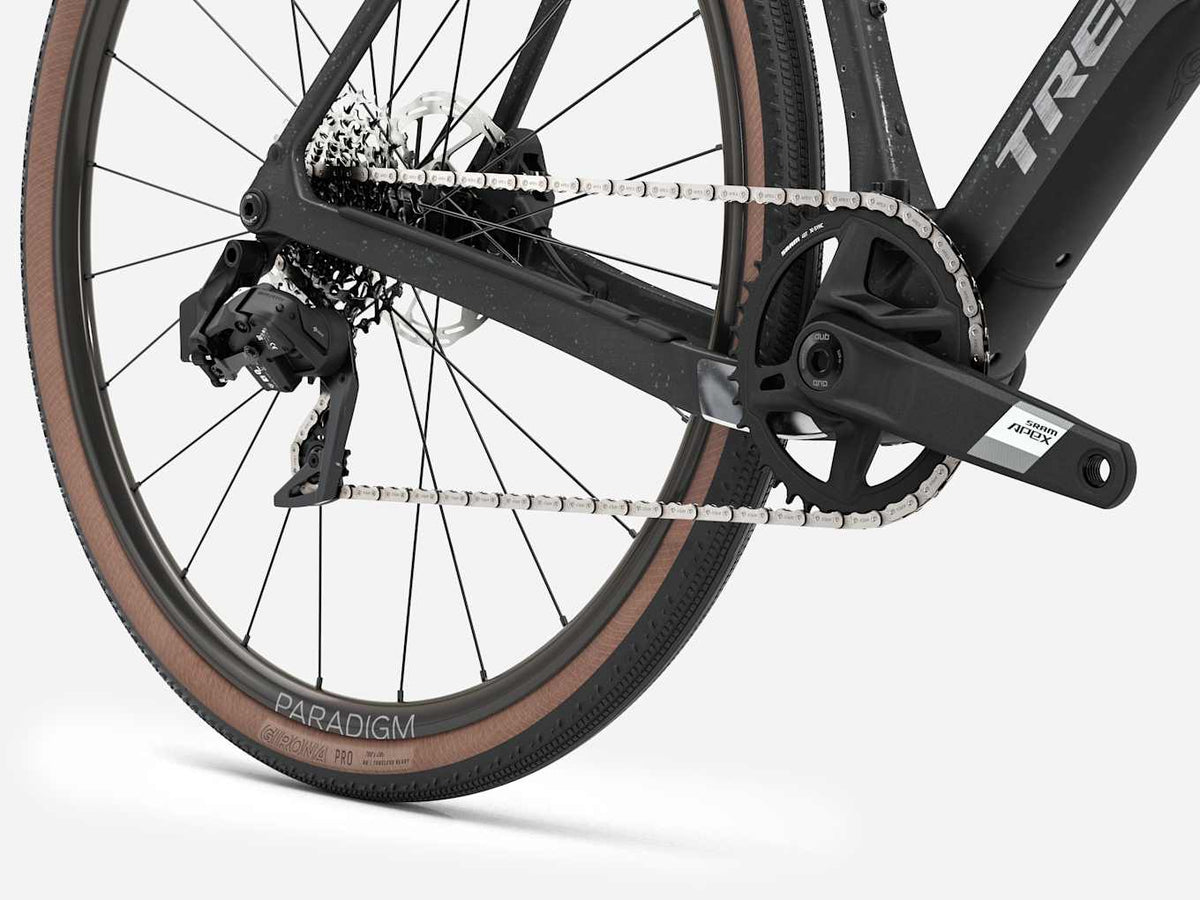

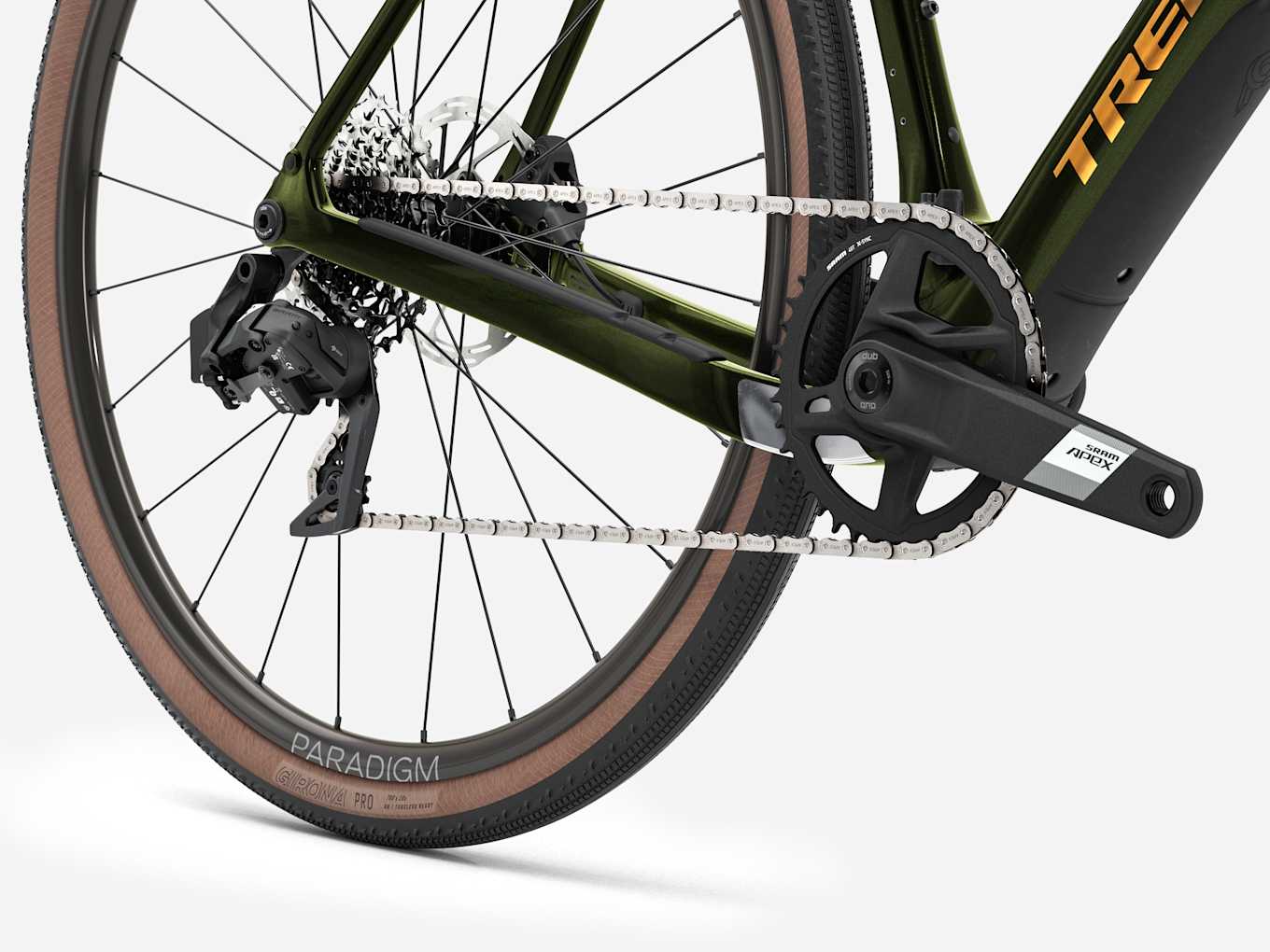

Drivetrain: SRAM Apex XPLR AXS, 1x12
Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

No related products found

No recently viewed products found

Component	Specification	Frame size(s)
Chain	SRAM Apex, 12-speed	S, M, ML, L
Frame	500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle	S, M, ML, L

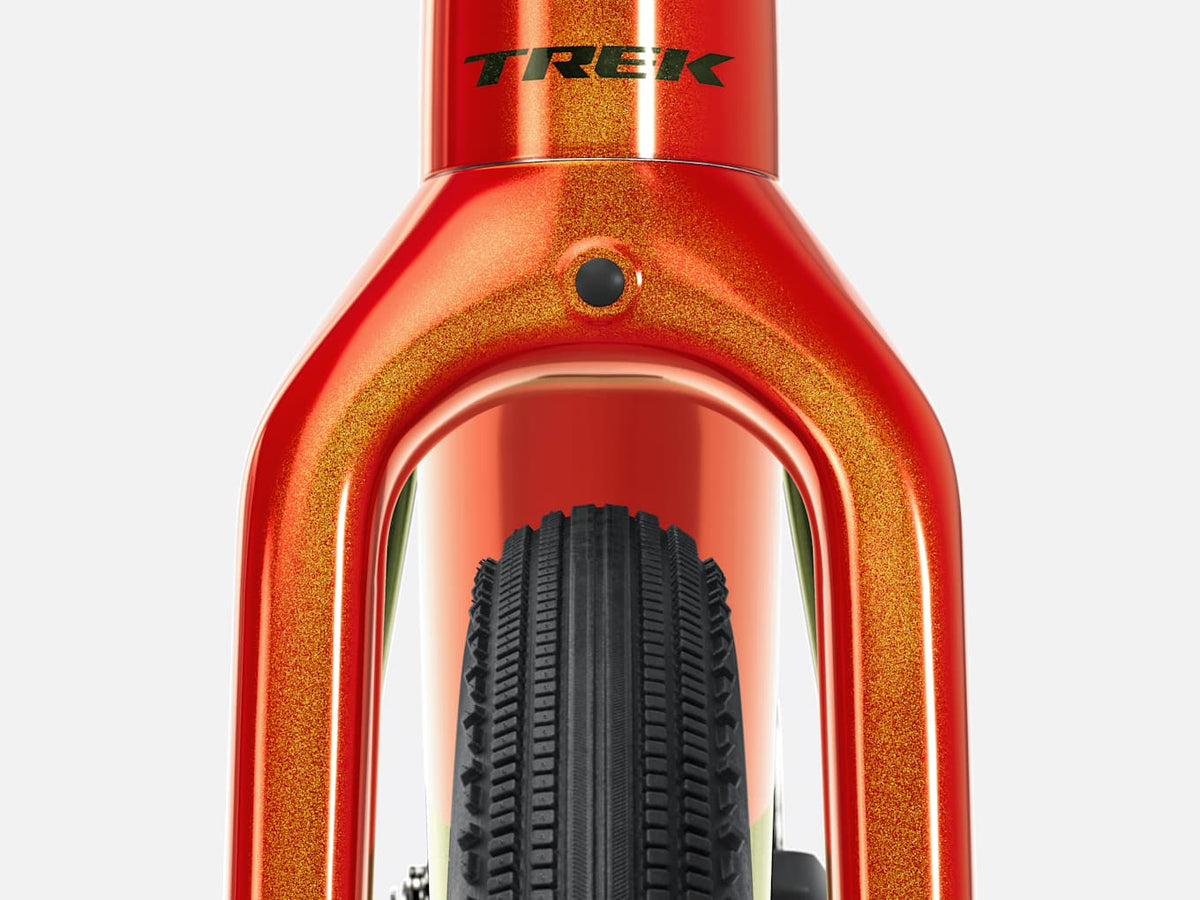

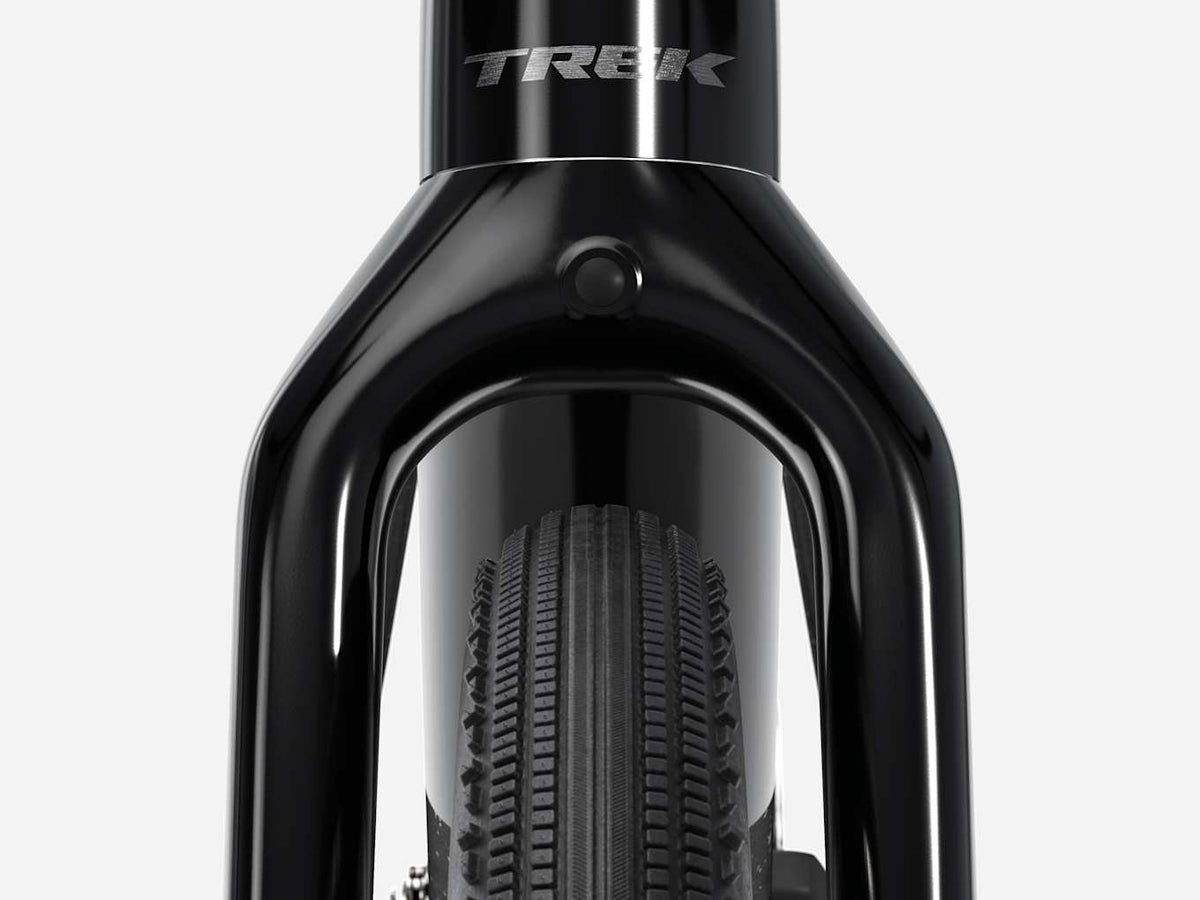

Fork	Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle	S, M, ML, L
Headset part (see also: Bearing)	Bontrager Headset Expander Plug and Top Cap	S, M, ML, L
Crank	SRAM Apex 1, 40T, DUB Wide, 165 mm length	S
Crank	SRAM Apex 1, 40T, DUB Wide, 170 mm length	M
Crank	SRAM Apex 1, 40T, DUB Wide, 172.5 mm length	ML, L
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length	S
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length	M, ML
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length	L
Saddle	Verse Short Comp, steel rails, 155 mm width	S
Saddle	Verse Short Comp, steel rails, 145 mm width	M, ML, L

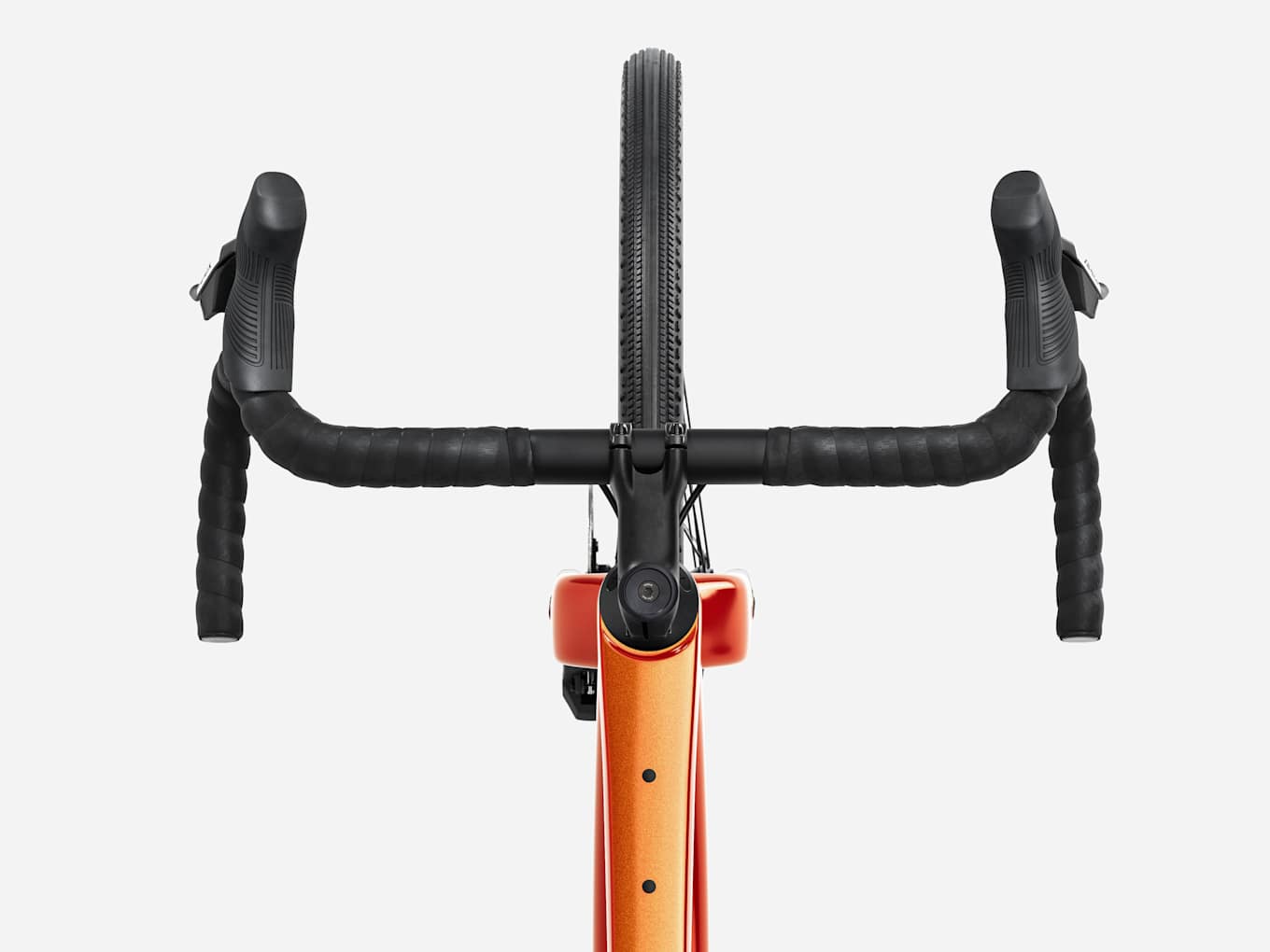

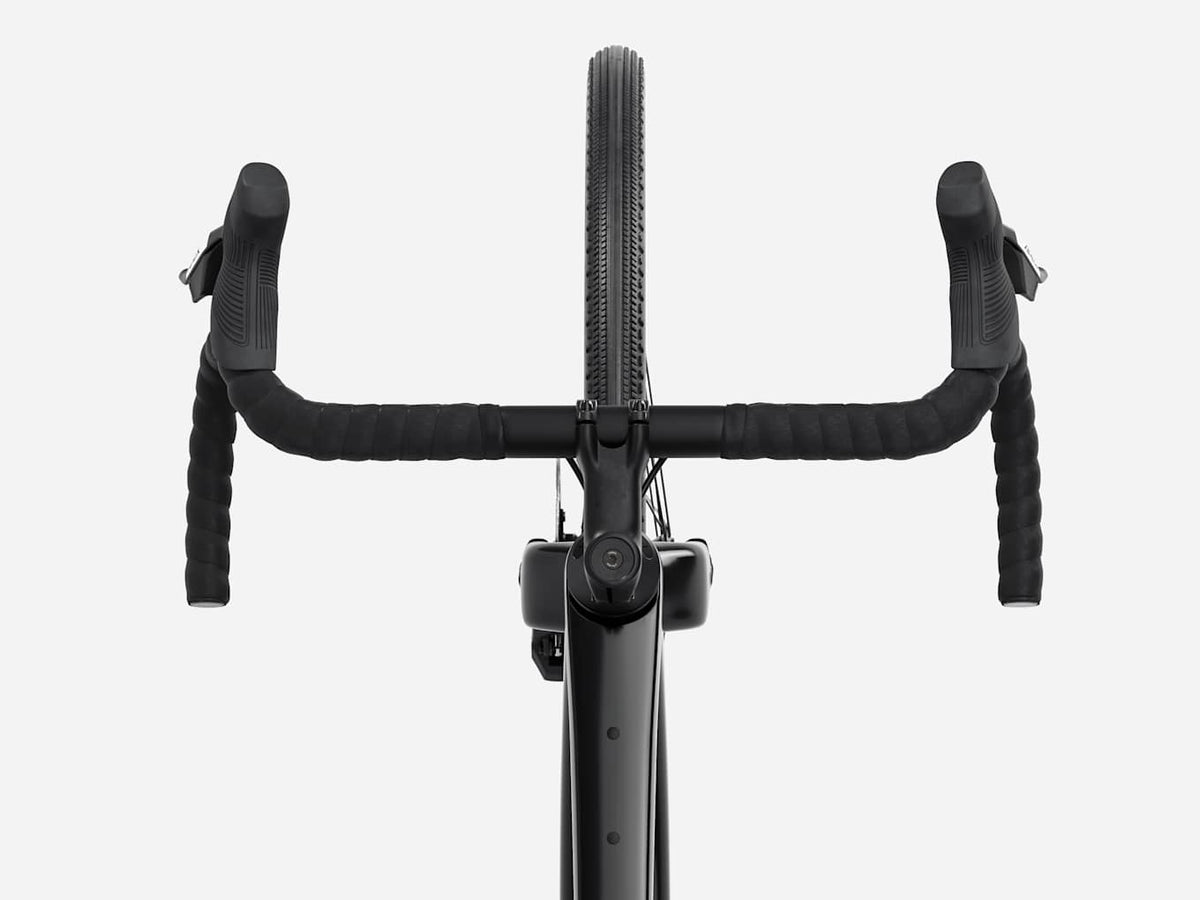

Handlebar	Bontrager Elite Gravel, alloy, 42 cm width	S, M
Handlebar	Bontrager Elite Gravel, alloy, 44 cm width	ML, L
Rear derailleur	SRAM Apex XPLR eTap AXS, 44T max cog	S, M, ML, L
Cassette	SRAM XPLR PG-1231, 11-44, 12-speed	S, M, ML, L
Bottom bracket	SRAM DUB Wide, T47 threaded, internal bearing	S, M, ML, L
Battery	SRAM AXS battery pack (with charger)	S, M, ML, L
Valve	Bontrager XXX TLR valve, 50 mm	S, M, ML, L
Brake rotor	SRAM Paceline, rounded, CentreLock, 160 mm	S, M, ML, L
Shifter	SRAM Apex AXS, 12-speed	S, M, ML, L
Skewer rear	Bontrager Switch chamfered thru axle, removable lever	S, M, ML, L
Bag	Bontrager BITS Internal Frame Storage Bag	S, M, ML, L
Wheel rear	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 142x12 mm thru axle	S, M, ML, L
Tyre	Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm	S, M, ML, L
Seatpost	Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length	S, M, ML, L
Tyre part	Bontrager TLR sealant, 180 ml/6 oz	S, M, ML, L
Wheel front	Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle	S, M, ML, L
Handlebar tape	Bontrager Supertack Perf tape	S, M, ML, L
Skewer front	Bontrager Switch chamfered thru axle	S, M, ML, L
Rim strip	Bontrager TLR	S, M, ML, L

Size	Rider height	Inseam
XS	4'8" - 5'2" / 143 - 158 cm	26" - 29" / 67 - 74 cm
S (49cm)	5'2" - 5'5" / 158 - 164 cm	29" - 30" / 74 - 77 cm
M (52-54cm)	5'5" - 5'10" / 164 - 177 cm	30" - 33" / 77 - 83 cm
ML (56cm)	5'10" - 6'2" / 177 - 188 cm	33" - 35" / 83 - 88 cm
L (58cm)	6'2" - 6'4" / 188 - 194 cm	35" - 36" / 88 - 91 cm
XL (61cm)	6'4" - 6'8" / 194 - 203 cm	36" - 37" / 91 - 95 cm

Measurement	S	M	ML	L
Wheel size	700c	700c	700c	700c
A Seat tube	48.0	50.5	53.0	55.0
B Seat tube angle	74.0°	73.3°	73.3°	73.3°
Effective seat tube angle	73.0°	72.8°	72.8°	72.8°
C Head tube length	10.6	13.0	15.1	17.1
D Head tube angle	71.4°	71.6°	72.0°	72.1°
E Top tube effective	54.7	56.6	57.8	58.9
G BB drop	7.6	7.6	7.6	7.6
H Chainstay	43.0	43.0	43.0	43.0
I Fork offset	4.9	4.9	4.9	4.9
J Trail	6.8	6.8	6.4	6.4
K Wheelbase	102.2	103.4	104.2	105.2
L Standover	77.2	79.9	81.3	83.7
M Reach	38.6	39.1	39.7	40.2
N Stack	55.6	57.9	60.1	62.0
Front center	60.4	61.5	62.4	63.4

Trek Checkpoint SL 5 AXS Gen 3

Pairs well with

Key features

People Also Bought

Recently Viewed

Frame	500 Series OCLV Carbon
Fork	Checkpoint, full carbon
Wheels	Bontrager Paradigm 23, alloy
Tyres	Bontrager Girona Pro, 42 mm
Drivetrain	SRAM Apex XPLR AXS, 1x12
Handlebar	Bontrager Elite Gravel, alloy
Weight	ML – 9.50 kg/20.95 lb
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
