Trek Domane AL 4 Gen 4

Name: Trek Domane AL 4 Gen 4
Brand: Trek
SKU: 5301517
Price: 149199.0 INR
Availability: InStock

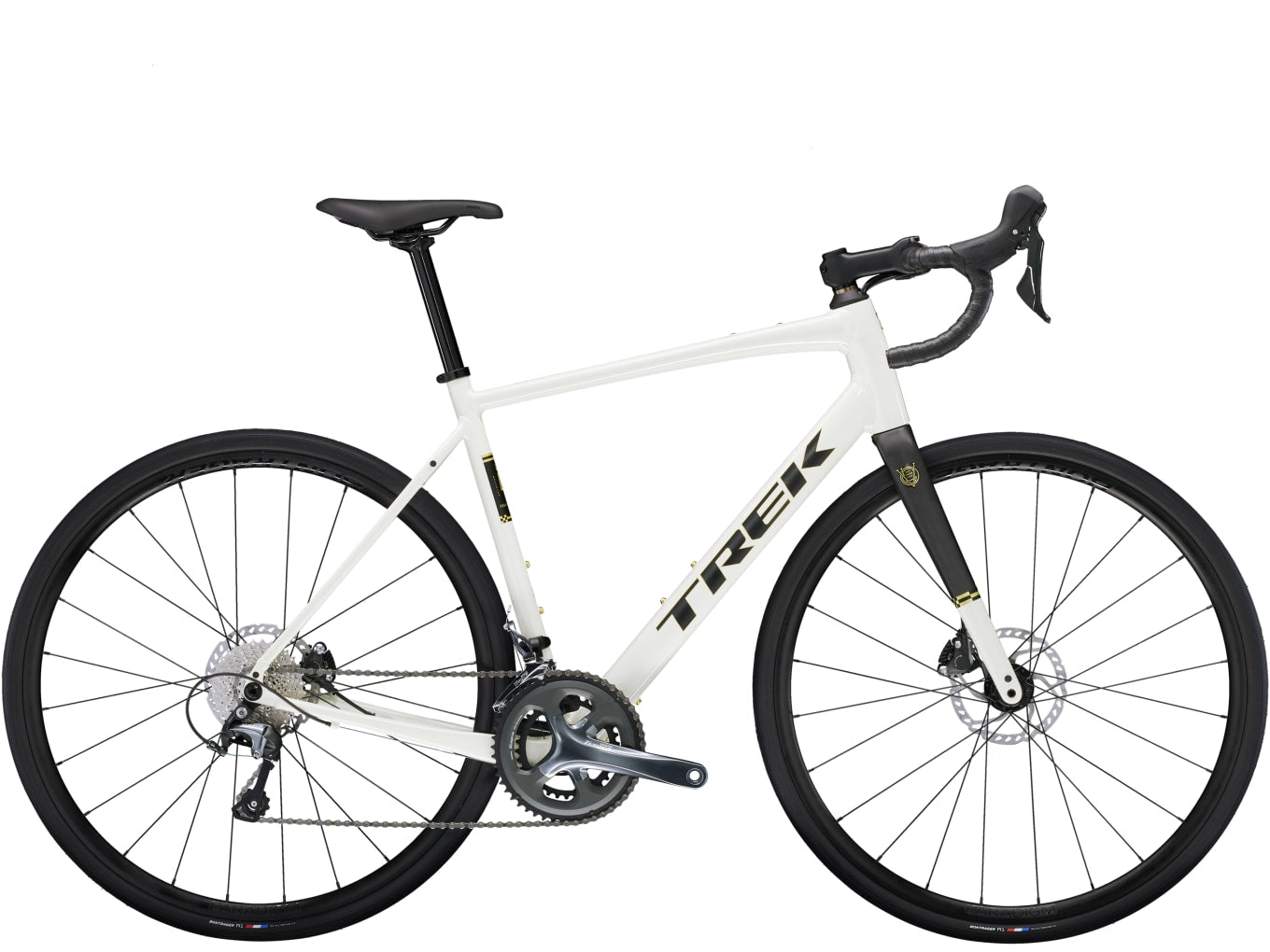

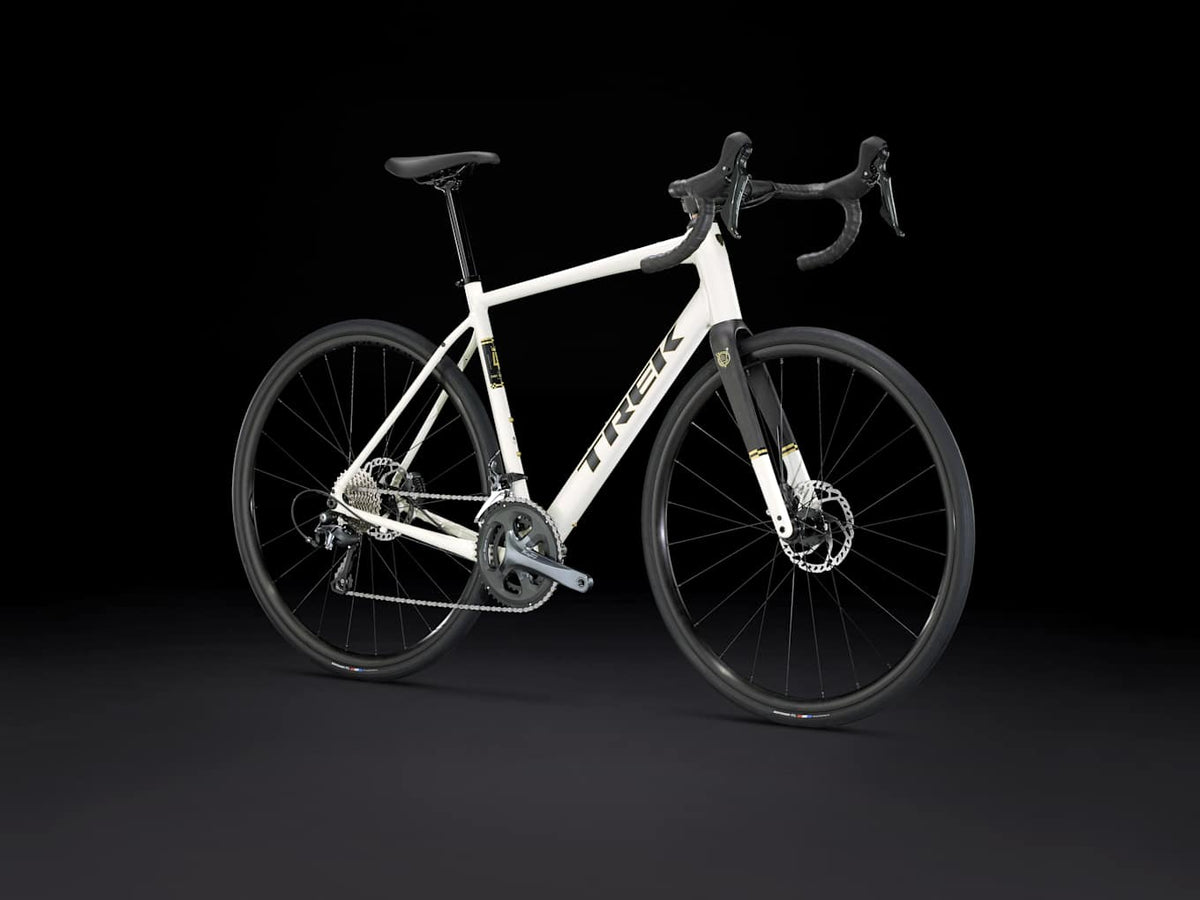

Trek Domane AL 4 Gen 4 is a road bike tuned for endurance road rides where comfort, stability and distance matter. The platform is built around a 100 Series Alpha Aluminium frame paired with a Doma...

Size: 49

Recommended rider height: 5'1" - 5'4" / 156 - 163 cm

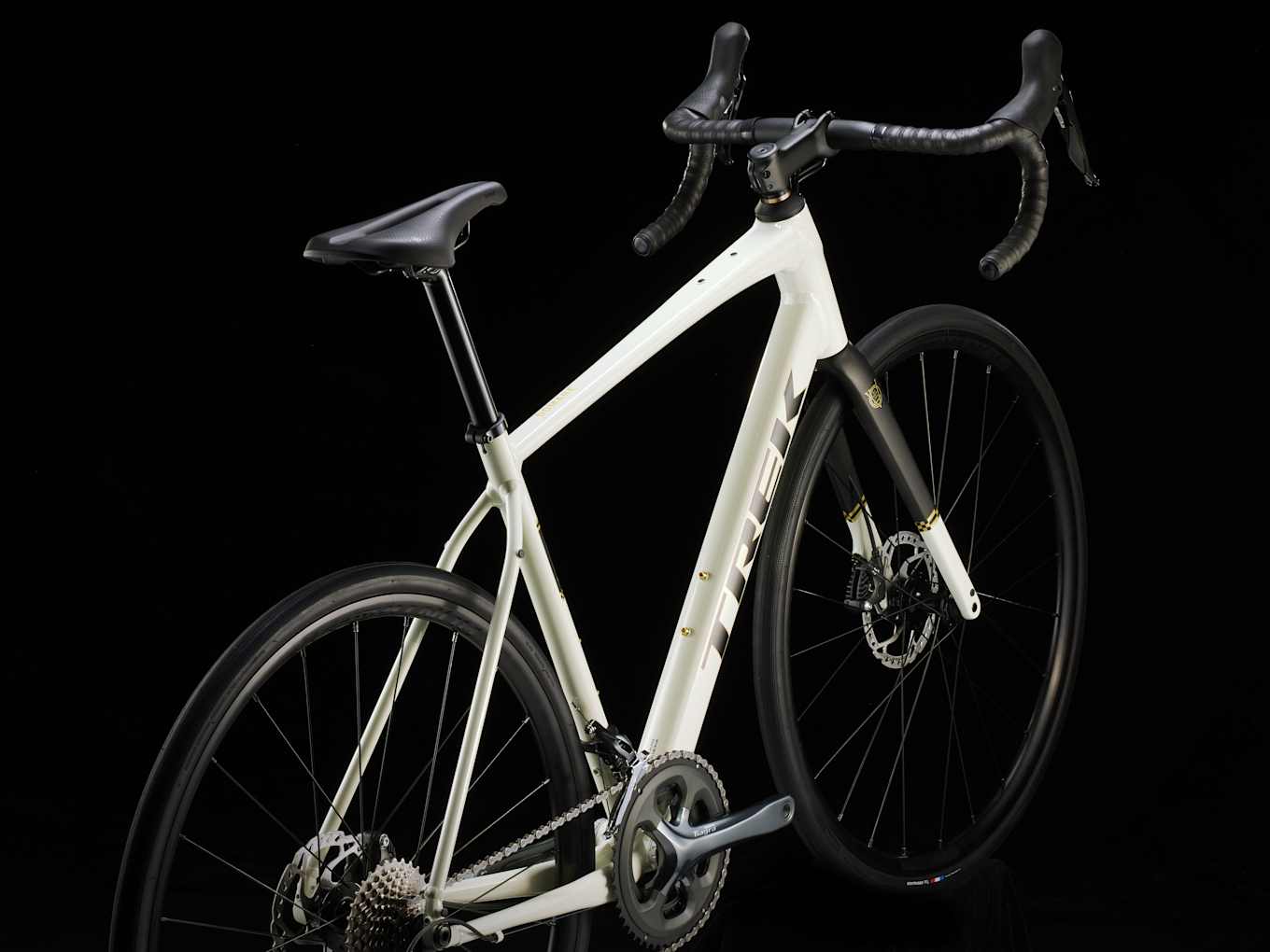

Color: Era White

Rs. 149,199.00 INR

I agree with Terms & Conditions

Sku: 5301517
Available: Instock
Collections: Bikes, Performance Road Bikes, Road Bikes, Trek
Type: Road Bike

Estimate delivery times: 3-5 days International.

Use code 'WELCOME15' for discount 15% on your first order.

Free shipping and returns: On all orders over $150.

Guarantee Safe Checkout:

Pairs well with

Trek Domane AL 4 Gen 4 is made for rides where you want a dependable road bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.

The main details to look at are Frame: 100 Series Alpha Aluminium, Fork: Domane AL carbon, and Wheels: Bontrager Paradigm 23. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.

Key features

Good for: rides where you want a dependable road bike
Brand: Trek
Category: Road Bikes
Frame: 100 Series Alpha Aluminium
Fork: Domane AL carbon
Wheels: Bontrager Paradigm 23
Tyres: Bontrager Kwaremont Comp, 700x32 mm

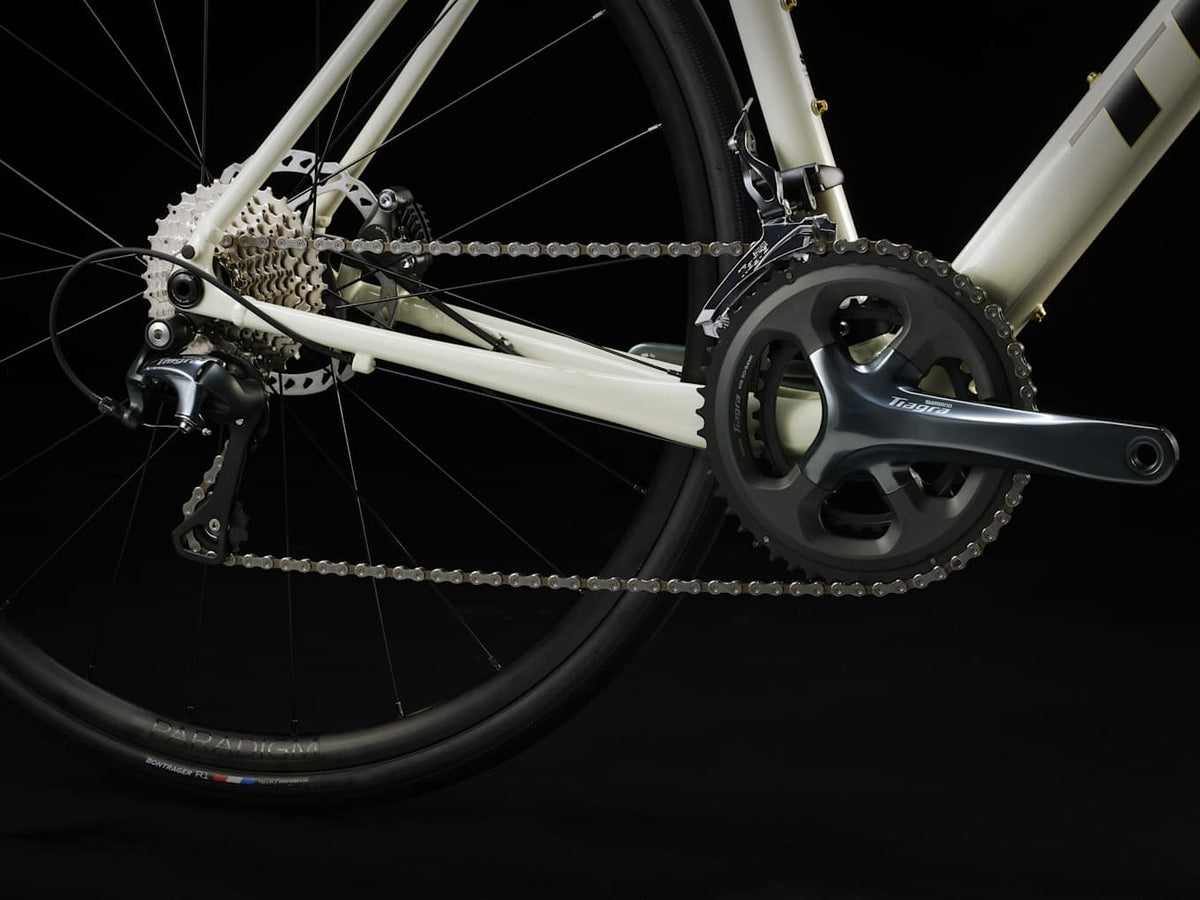

Drivetrain: Shimano Tiagra, 2x10
Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

No related products found

No recently viewed products found

Component	Specification	Frame size(s)
Chain	Shimano Tiagra HG54, 10-speed	49, 52, 54, 56, 58

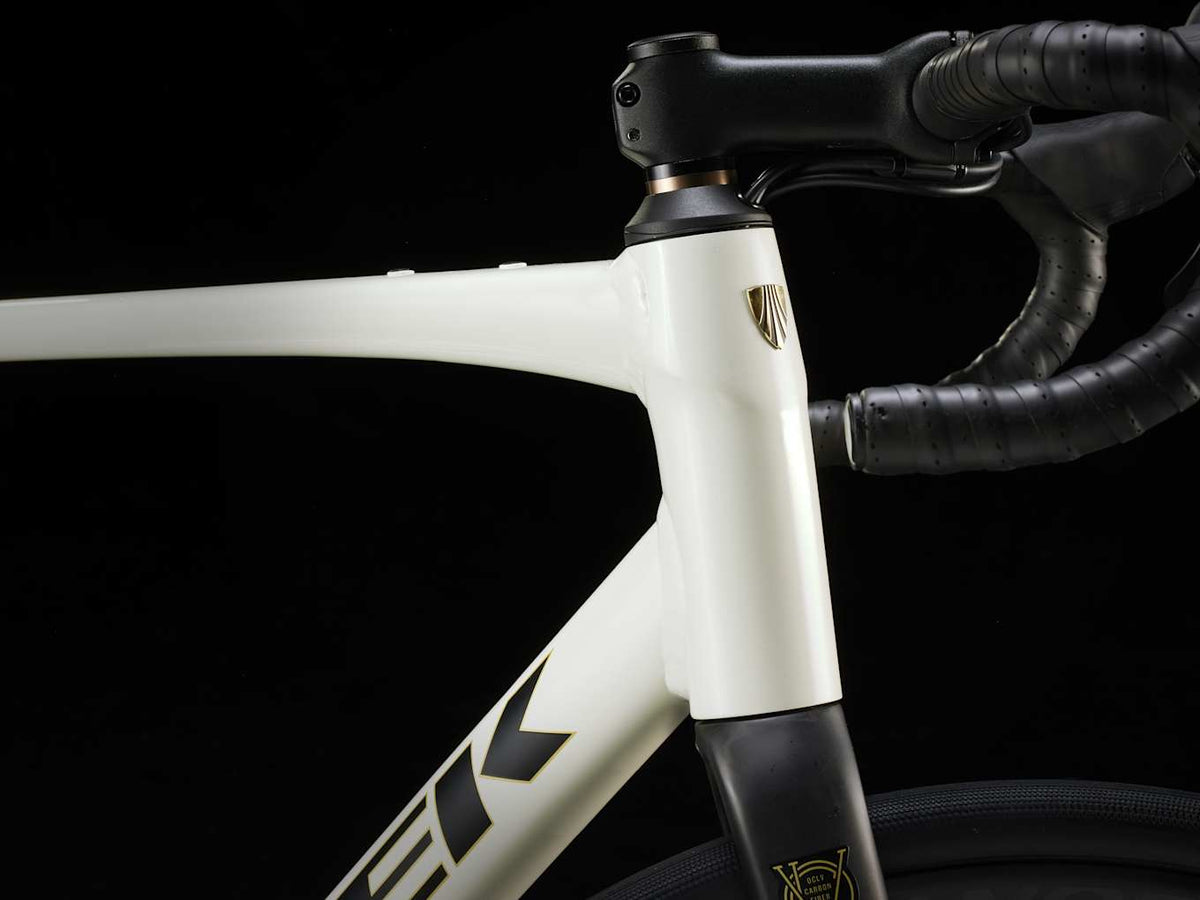

Frame	100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, flat-mount disc, UDH, 142x12 mm thru axle	49, 52, 54, 56, 58

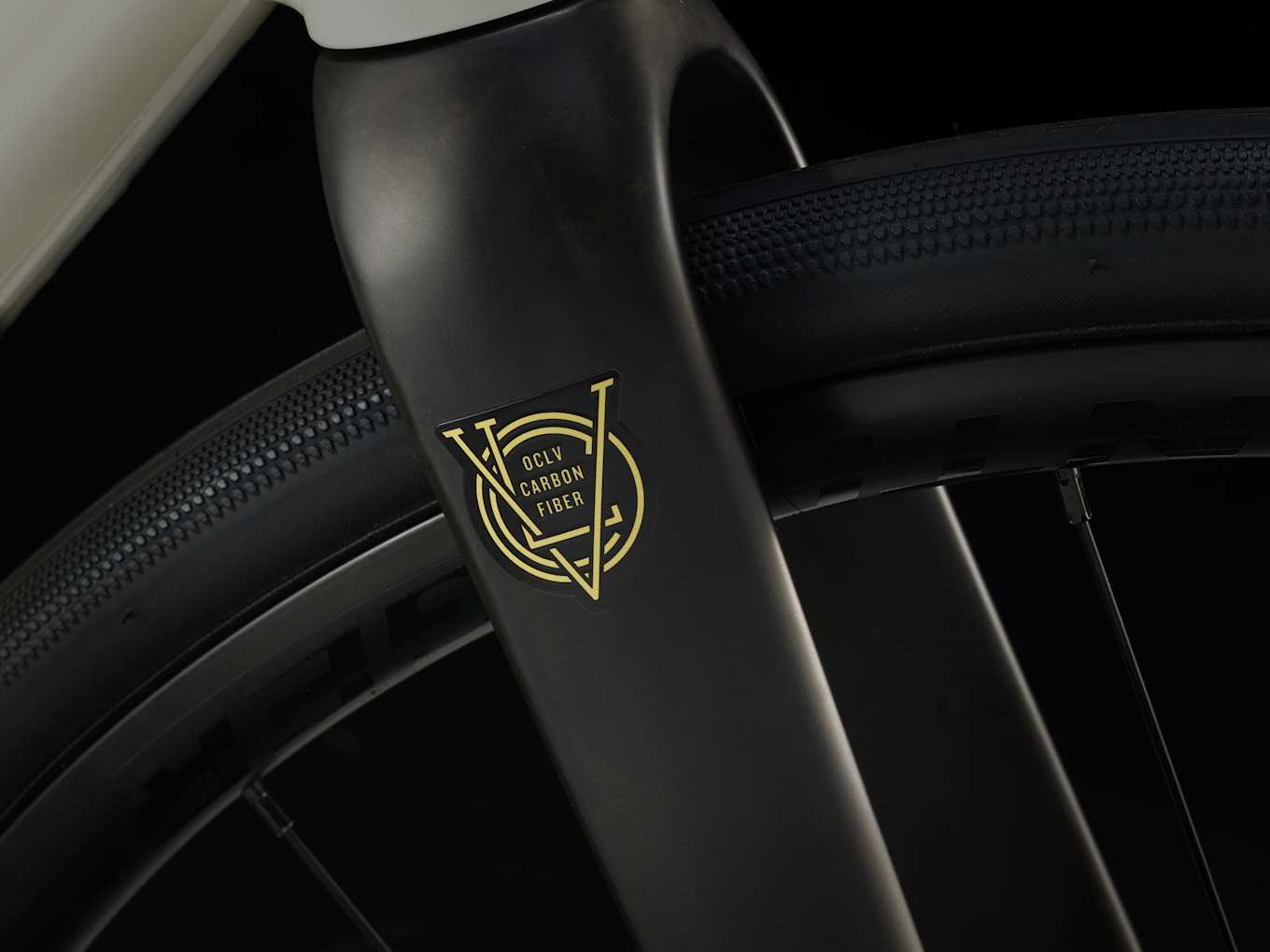

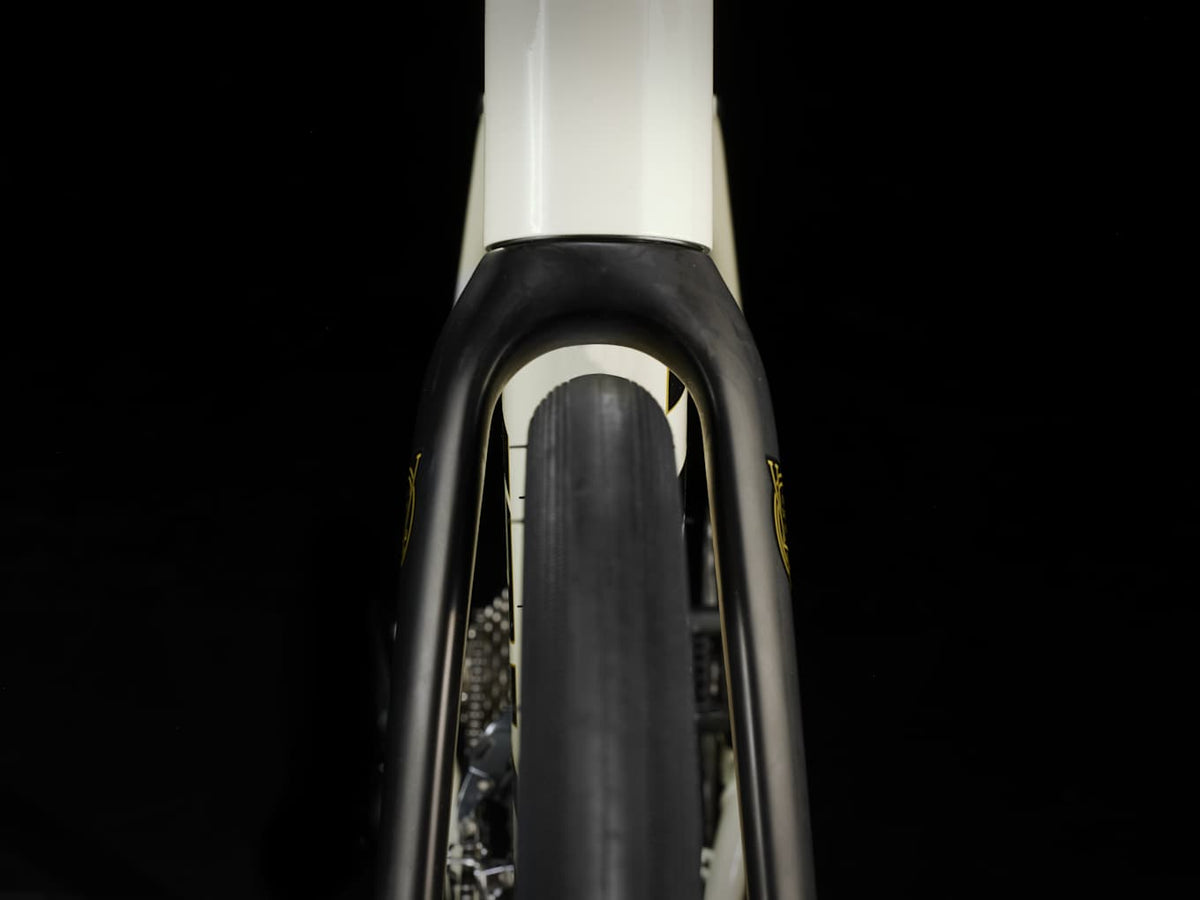

Fork	Domane AL carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle	49, 52, 54, 56, 58
Headset part (see also: Bearing)	Bontrager Headset Expander Plug and Top Cap	49, 52, 54, 56, 58
Spokes	14 g stainless steel, black	49, 52, 54, 56, 58
Hub front	Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle	49, 52, 54, 56, 58
Crank	Shimano Tiagra 4700, 50/34, 170 mm length	49, 52
Crank	Shimano Tiagra 4700, 50/34, 172.5 mm length	54, 56
Crank	Shimano Tiagra 4700, 50/34, 175 mm length	58
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length	49
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length	52, 54
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length	56, 58

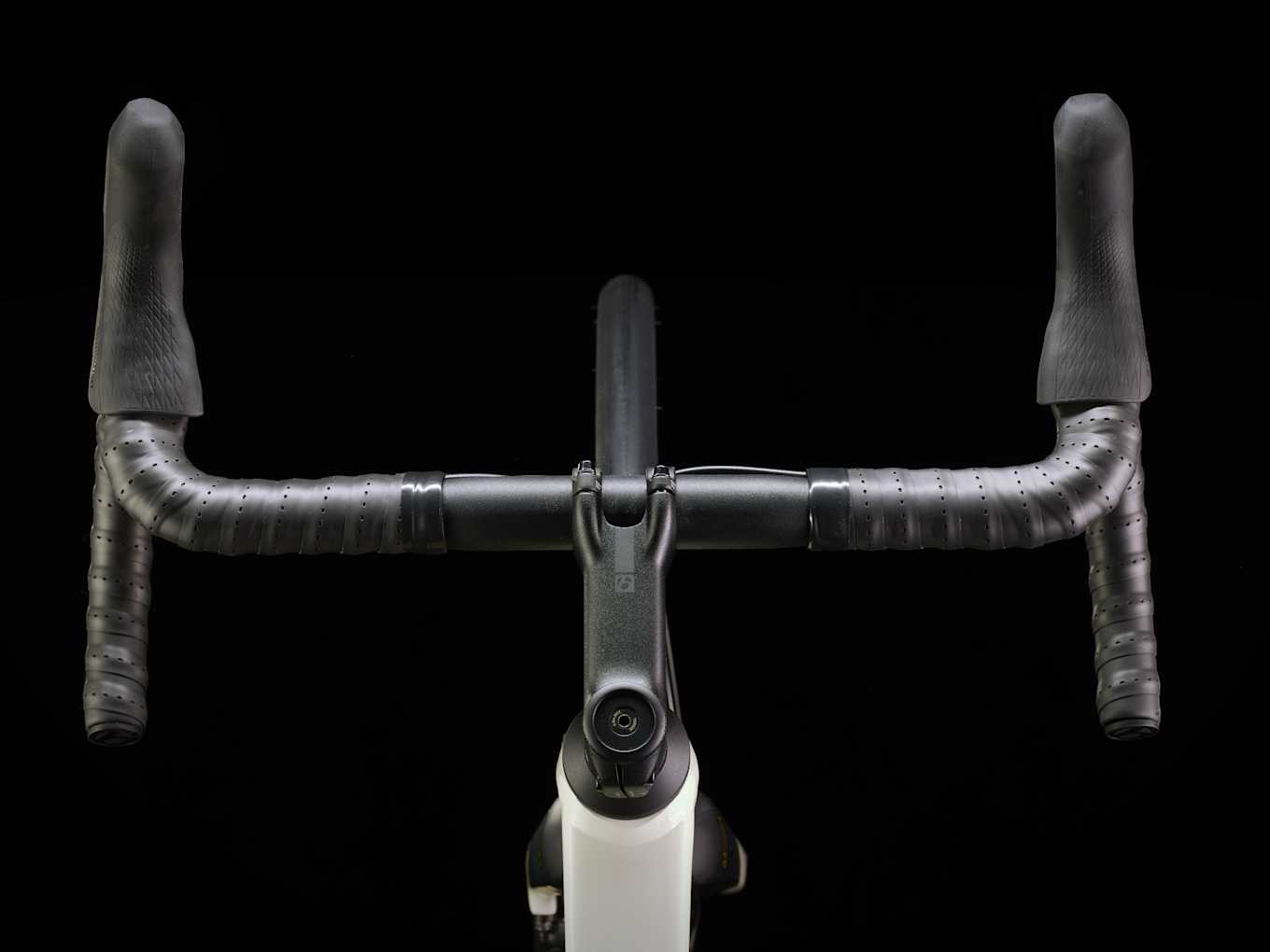

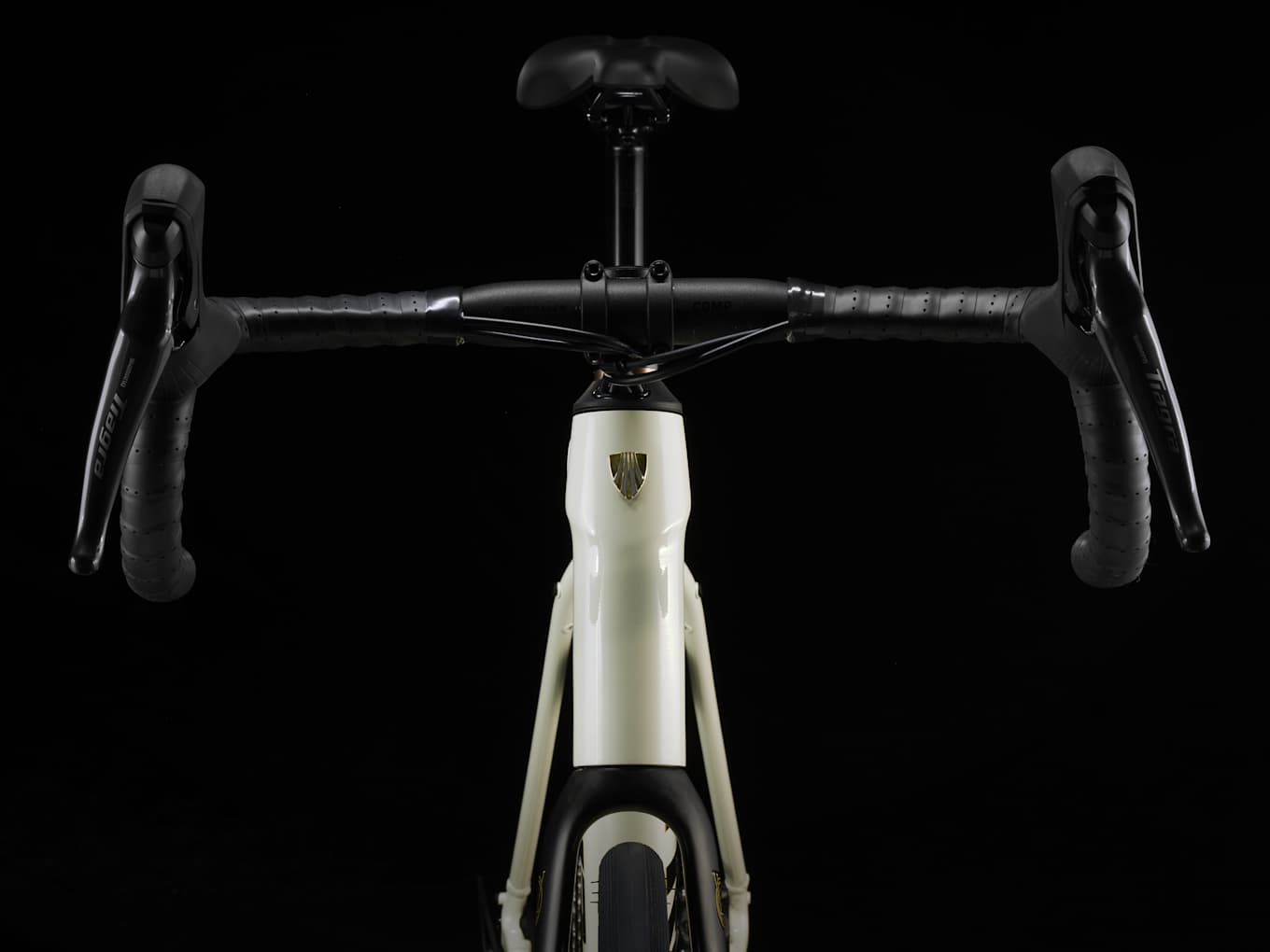

Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width	49
Handlebar	Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width	49
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width	52
Handlebar	Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width	52
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width	54, 56
Handlebar	Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width	54, 56
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 44 cm control width, 48 cm drops width	58
Handlebar	Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width	58
Saddle	Verse Short, steel rails, 145 mm width	49, 52, 54, 56, 58
Bearing	FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom	49, 52, 54, 56, 58
Rear derailleur	Shimano Tiagra 4700, long cage, 34T max cog	49, 52, 54, 56, 58
Cassette	Shimano 10-speed, 11-32T	49, 52, 54, 56, 58
Bottom bracket	Shimano RS501 BSA	49, 52, 54, 56, 58
Shifter	Shimano Tiagra R4720, 10-speed	49, 52, 54, 56, 58

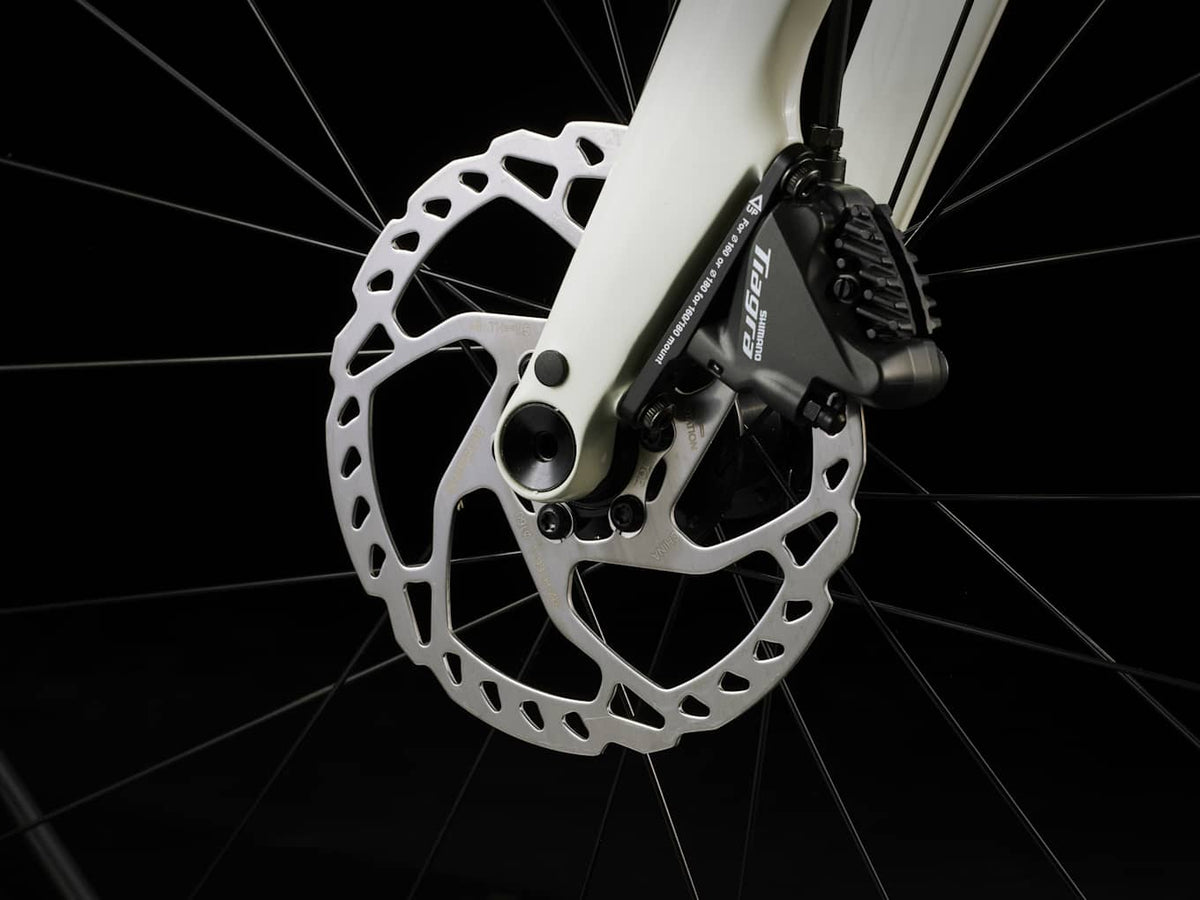

Brake rotor	Shimano RT66, 6-bolt, 160 mm	49, 52, 54, 56, 58
Brake	Shimano Tiagra hydraulic disc, flat mount	49, 52, 54, 56, 58
Skewer rear	Bontrager Switch chamfered thru axle, removable lever	49, 52, 54, 56, 58
Hub rear	Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle	49, 52, 54, 56, 58
Tyre	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm	49, 52, 54, 56, 58
Seatpost	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length	49
Seatpost	Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length	52, 54, 56, 58
Rim	Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve	49, 52, 54, 56, 58
Handlebar tape	Bontrager Supertack Perf tape	49, 52, 54, 56, 58
Handlebar tape	Trek EcoTack	49, 52, 54, 56, 58
Front derailleur	Shimano Tiagra 4700, 31.8 mm clamp	49, 52, 54, 56, 58
Skewer front	Bontrager Switch chamfered thru axle	49, 52, 54, 56, 58

Size	Rider height	Inseam
44	4'11" - 5'0" / 150 - 153 cm	28" - 29" / 71 - 73 cm
49	5'1" - 5'4" / 156 - 163 cm	29" - 30" / 74 - 77 cm
52	5'4" - 5'6" / 163 - 168 cm	30" - 31" / 76 - 79 cm
54	5'6" - 5'9" / 168 - 174 cm	31" - 32" / 78 - 82 cm
56	5'9" - 5'11" / 174 - 180 cm	32" - 33" / 81 - 85 cm
58	5'11" - 6'1" / 180 - 185 cm	33" - 34" / 84 - 87 cm
61	6'1" - 6'3" / 185 - 191 cm	34" - 35" / 86 - 90 cm

Measurement	49cm	52cm	54cm	56cm	58cm
Wheel size	700c	700c	700c	700c	700c
A Seat tube	44.0	47.5	50.0	52.5	54.8
B Seat tube angle	74.6°	74.2°	73.7°	73.3°	73.0°
C Head tube length	12.3	14.5	16.0	17.5	19.5
D Head tube angle	70.8°	71.3°	71.3°	71.9°	72.0°
E Top tube effective	51.6	53.0	54.2	55.4	56.7
G BB drop	8.0	8.0	8.0	7.8	7.8
H Chainstay	42.5	42.0	42.0	42.0	42.5
I Fork offset	5.3	5.3	5.3	4.8	4.8
J Trail	6.6	5.9	5.9	6.1	6.0
K Wheelbase	100.1	100.3	101.0	101.8	102.2
L Standover	71.7	73.5	75.4	77.6	79.6
M Reach	36.8	37.1	37.4	37.7	38.0
N Stack	54.0	56.1	57.5	59.1	61.1

Trek Domane AL 4 Gen 4

Pairs well with

Key features

People Also Bought

Recently Viewed

Frame	100 Series Alpha Aluminium
Fork	Domane AL carbon
Wheels	Bontrager Paradigm 23
Tyres	Bontrager Kwaremont Comp, 700x32 mm
Drivetrain	Shimano Tiagra, 2x10
Handlebar	Bontrager Comp, alloy
Weight	56 - 10.35 kg / 22.82 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
