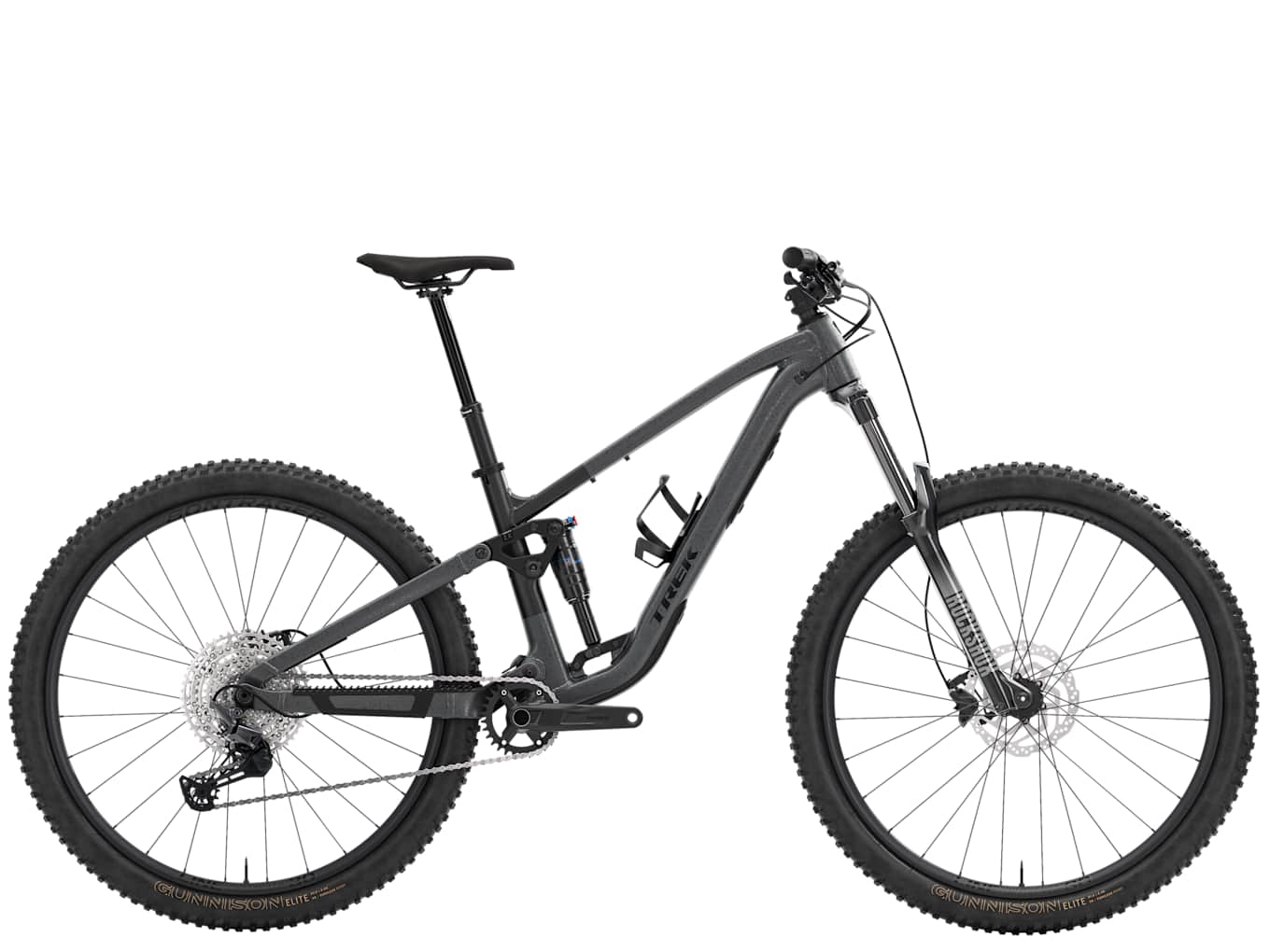

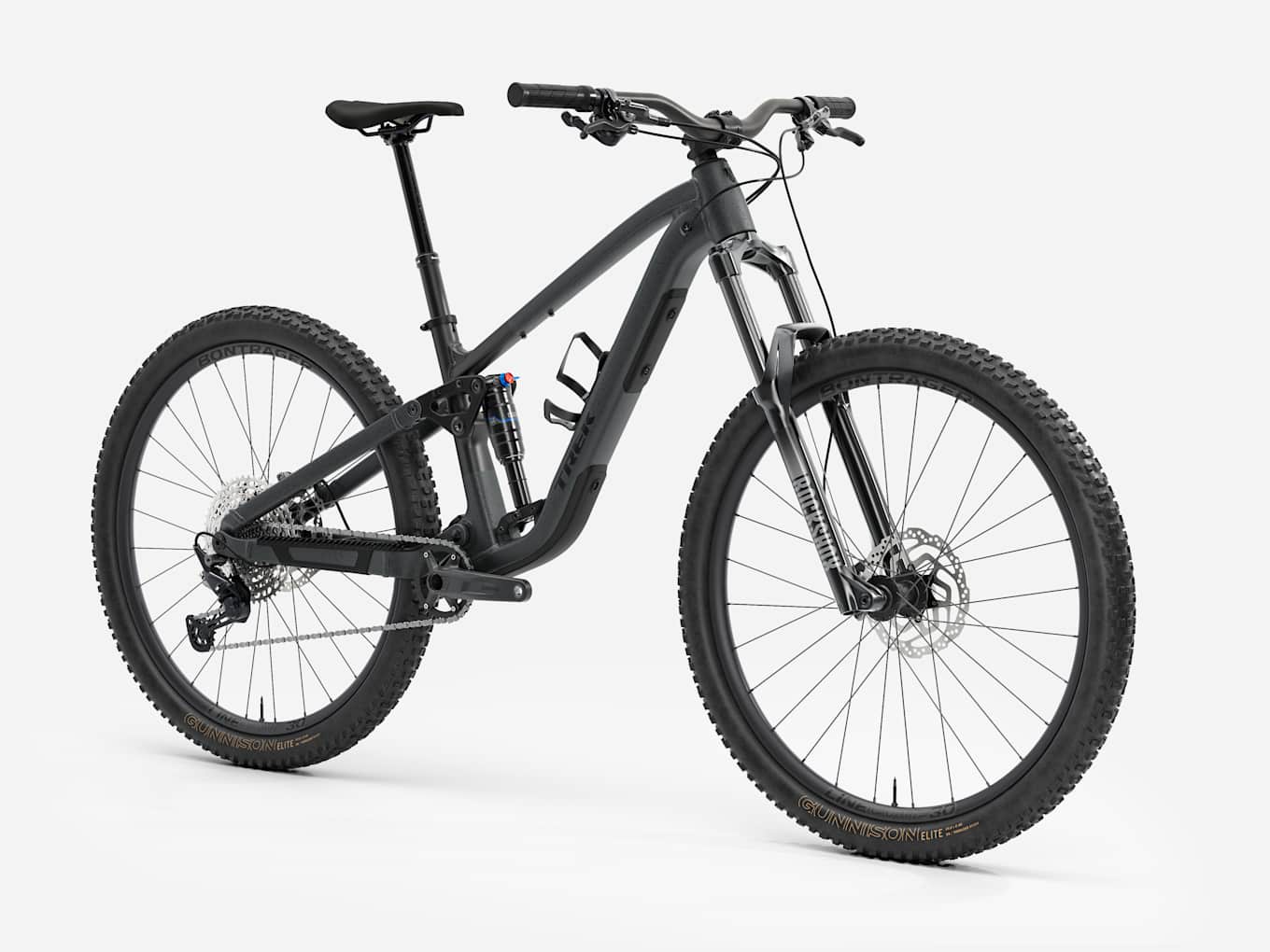

Trek Fuel EX 5 Gen 7
Trek Fuel EX 5 Gen 7 is a mountain bike tuned for technical trail riding with controlled descending and dependable grip. The platform is built around an Alpha NEXT Platinum Aluminium, 145 mm frame ...
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 270,199.00 INR
Couldn't load pickup availability
- Sku: 5335769
- Available: Instock
- Collections: Bikes, Mountain Bikes, New Arrivals, Trail Mountain Bikes, Trek
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Trek Fuel EX 5 Gen 7 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frame: Alpha NEXT Platinum Aluminium, 145 mm, Fork: RockShox Recon Silver, 150 mm, and Wheels: Bontrager Line TLR 30. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Trek
- Category: Mountain Bikes
- Frame: Alpha NEXT Platinum Aluminium, 145 mm
- Fork: RockShox Recon Silver, 150 mm
- Wheels: Bontrager Line TLR 30
- Tyres: Bontrager Gunnison Elite XR
- Drivetrain: Shimano Deore, 12-speed
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frame | Alpha NEXT Platinum Aluminium, 145 mm |
|---|---|
| Fork | RockShox Recon Silver, 150 mm |
| Wheels | Bontrager Line TLR 30 |
| Tyres | Bontrager Gunnison Elite XR |
| Drivetrain | Shimano Deore, 12-speed |
| Brakeset | Shimano MT200 |
| Handlebar | Bontrager Comp, alloy |
| Weight | M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Component | Specification | Frame size(s) |
|---|---|---|

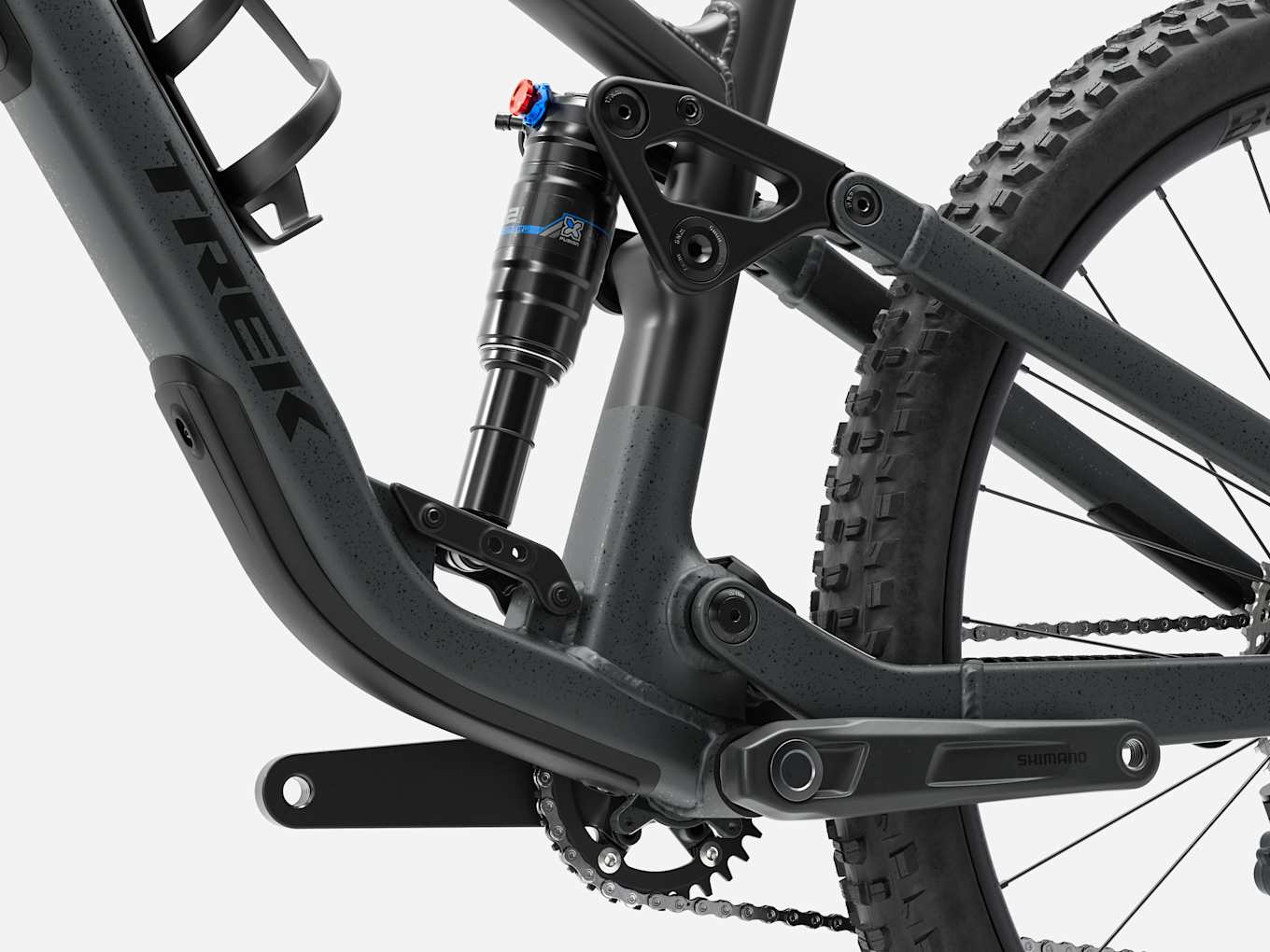

| Shock | X-Fusion Pro 2, 2-position damper, 205 mm x 60mm | S, M, L, XL |
| Chain | Shimano Deore M6100, 12-speed | S, M, L, XL |
| Head set | FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown | S, M, L, XL |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel | S, M, L, XL |
| Headset part (see also: Bearing) | 1-1/8'' threadless, sealed cartridge bearings | S, M, L, XL |
| Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle | S, M, L, XL |
| Crank | Shimano MT512, 30T ring, 55 mm chain line, 170 mm length | S, M, L, XL |
| Stem | Bontrager Comp, 31.8 mm, 7-degree, 35 mm length | S, M, L, XL |
| Saddle | Bontrager Verse Short, stainless steel rails | S, M, L, XL |
| Handlebar | Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width | S, M, L, XL |

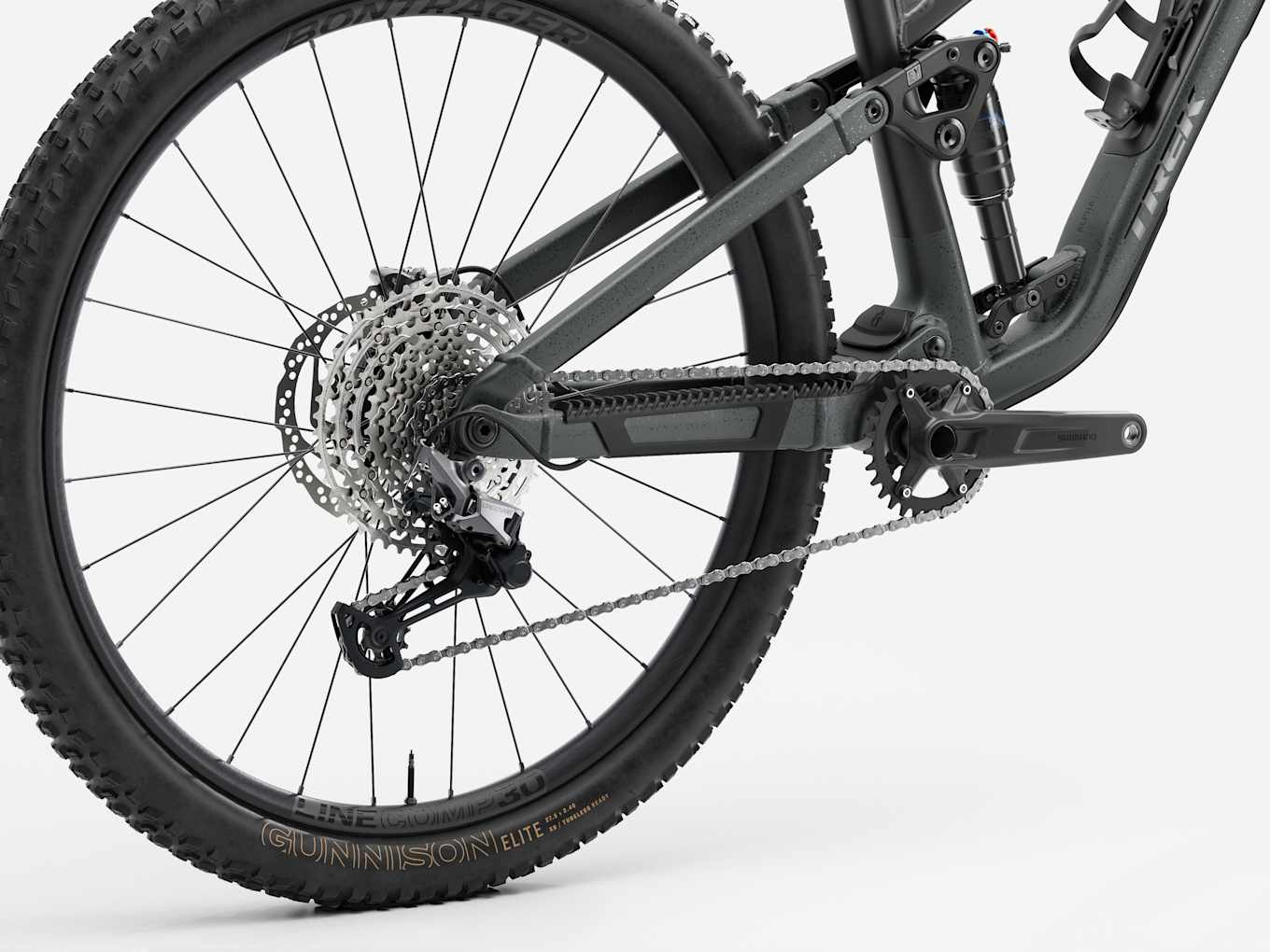

| Rear derailleur | Shimano Deore M6100, long cage | S, M, L, XL |
| Cassette | Shimano Deore M6100, 10-51, 12-speed | S, M, L, XL |
| Seatpost part | Bontrager Line Dropper remote | S, M, L, XL |
| Bottom bracket | Shimano BB-MT501 BSA | S, M, L, XL |
| Valve | Bontrager TLR valve, 50mm | S, M, L, XL |
| Brake rotor | Shimano RT10, CenterLock, 180 mm | S, M, L, XL |
| Shifter | Shimano Deore M6100, 12-speed | S, M, L, XL |
| Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper | S, M, L, XL |
| Grips | Trek Line Comp, nylon lock-on | S, M, L, XL |
| Skewer rear | Bontrager Switch thru axle, removable lever | S, M, L, XL |
| Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle | S, M, L, XL |
| Frame | Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm | S, M, L, XL |
| Tyre | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40" | S, M, L, XL |
| Tyre | Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" | S |
| Seatpost | TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm | S |
| Seatpost | TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm | M, L, XL |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz | S, M, L, XL |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve | S, M, L, XL |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve | S, M, L, XL |
| Rim strip | Bontrager TLR | S, M, L, XL |
| Size | Rider height | Inseam |
|---|---|---|
| S | 5'1" - 5'5" / 155 - 165 cm | 29" - 31" / 74 - 78 cm |
| M | 5'5" - 5'10" / 165 - 177 cm | 31" - 33" / 79 - 83 cm |
| L | 5'10" - 6'2" / 177 - 188 cm | 33" - 35" / 84 - 89 cm |
| XL | 6'2" - 6'5" / 188 - 195 cm | 35" - 36" / 89 - 91 cm |
| Measurement | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Frame size letter | S | M | L | XL |
| Wheel size | 29"/27.5" | 29" | 29" | 29" |
| A Seat tube | 37.0 | 40.0 | 42.0 | 45.5 |
| B Seat tube angle | 72.7° | 72.6° | 72.6° | 72.6° |
| Effective seat tube angle | 78.7° | 78.3° | 77.4° | 76.9° |
| C Head tube length | 9.5 | 11.0 | 12.5 | 14.0 |
| D Head tube angle | 64.6° | 64.5° | 64.5° | 64.5° |
| E Top tube effective | 54.8 | 58.3 | 61.7 | 65.1 |
| F BB height | 34.0 | 33.9 | 33.9 | 33.9 |
| G BB drop | 3.4 | 3.5 | 3.5 | 3.5 |
| H Chainstay | 43.7 | 43.7 | 44.2 | 44.7 |
| I Fork offset | 4.4 | 4.4 | 4.4 | 4.4 |
| J Trail | 12.9 | 12.9 | 12.9 | 12.9 |
| K Wheelbase | 118.7 | 122.5 | 126.2 | 129.8 |
| L Standover | 74.8 | 74.4 | 74.7 | 75.8 |
| M Reach | 43.1 | 46.0 | 48.5 | 51.0 |
| N Stack | 61.0 | 62.4 | 63.8 | 65.1 |
| Front center | 75.4 | 79.1 | 82.2 | 85.4 |
