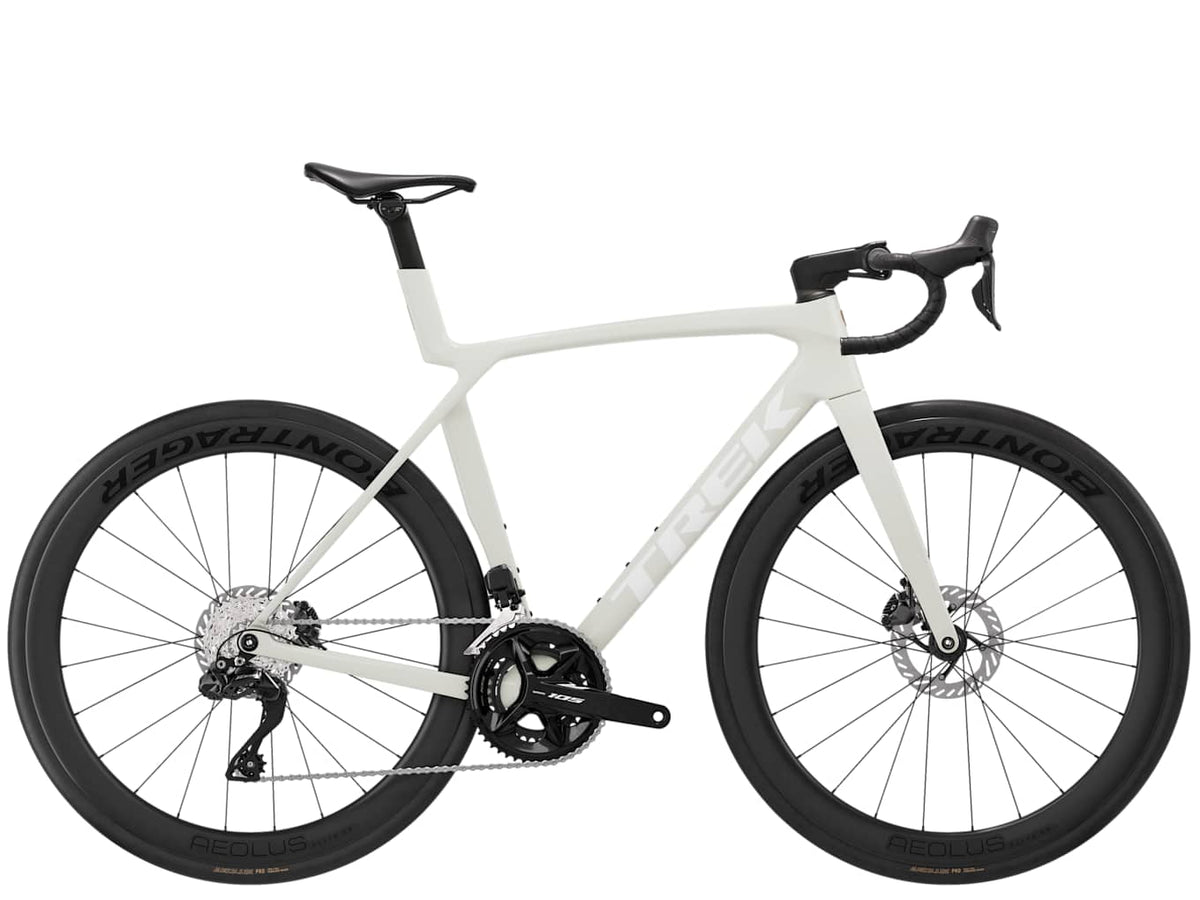

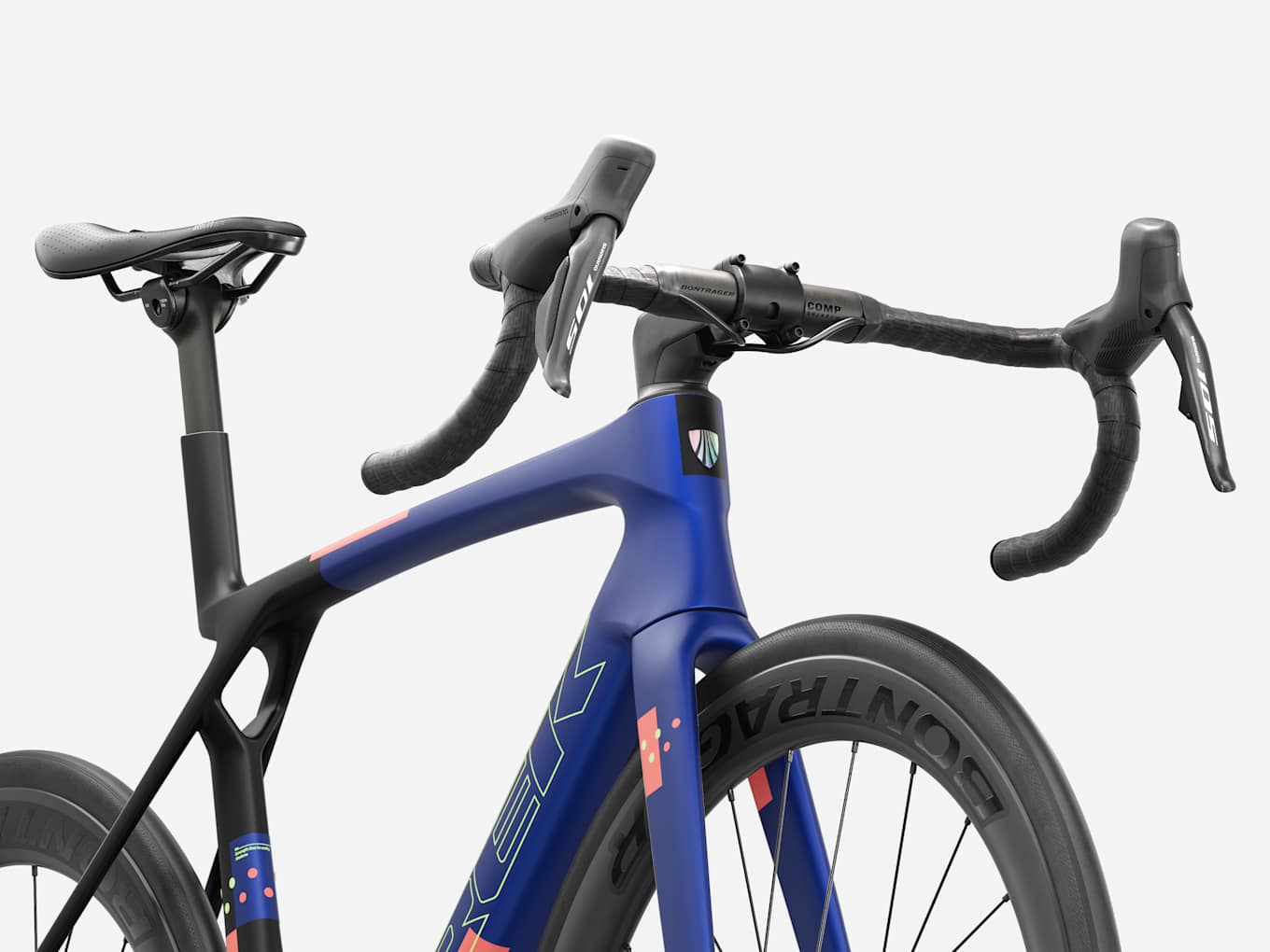

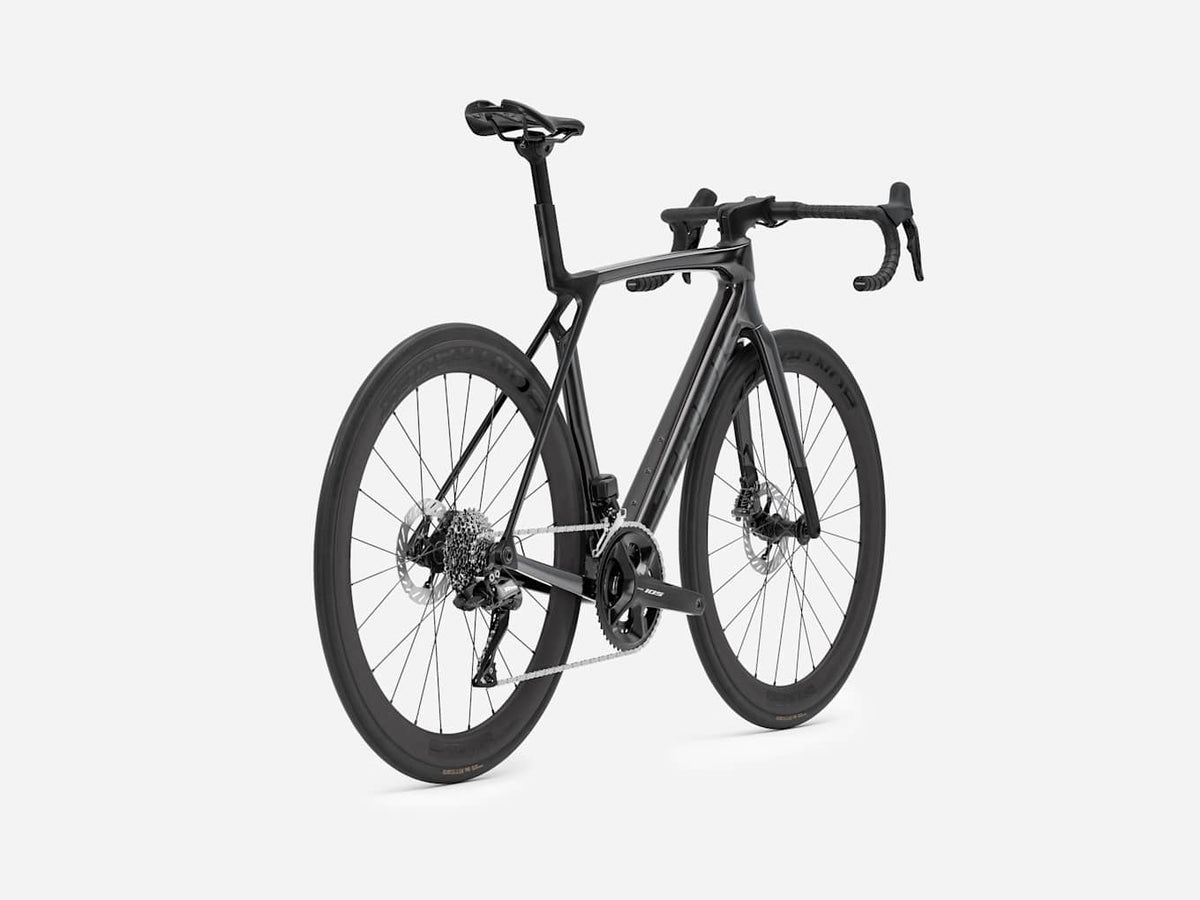

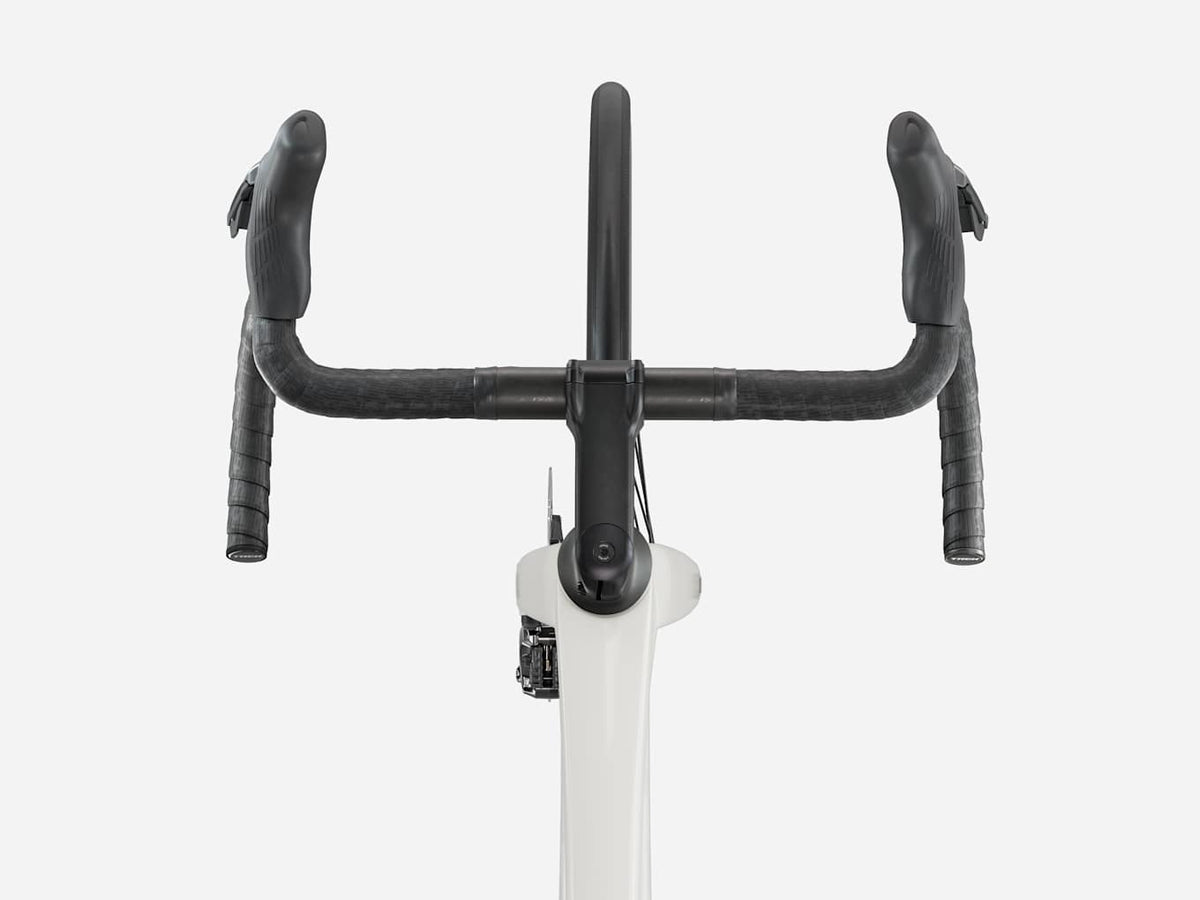

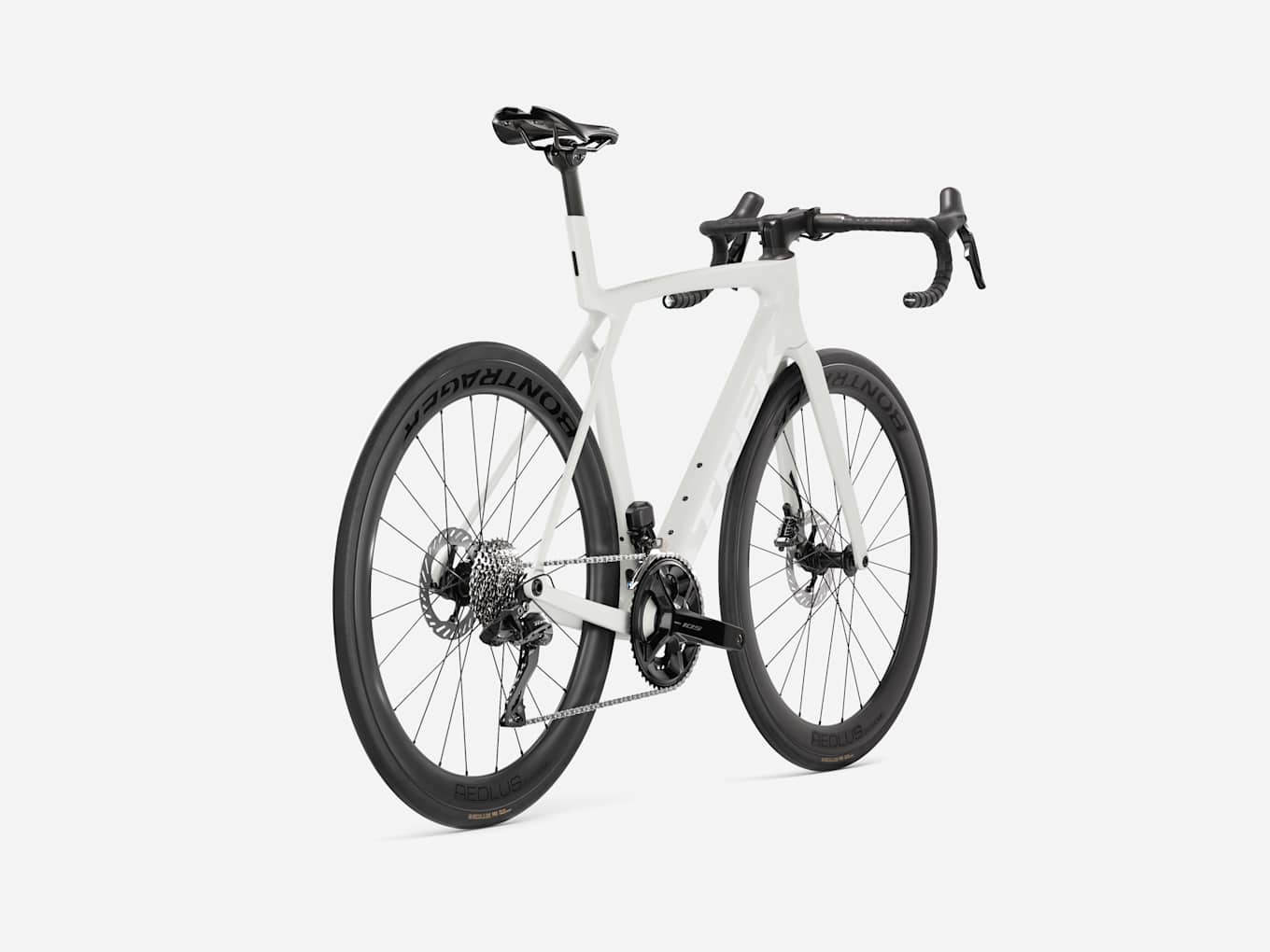

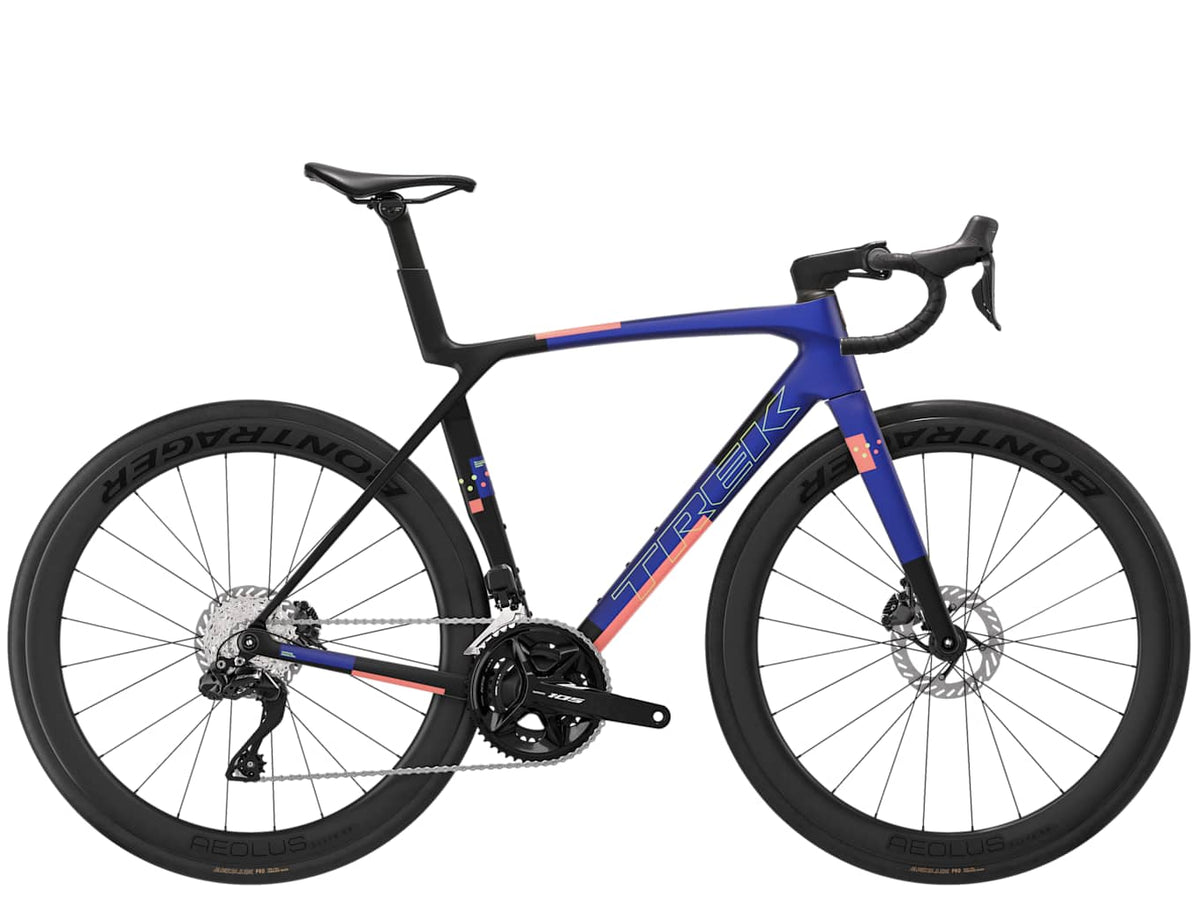

Trek Madone SL 6 Gen 8

Name: Trek Madone SL 6 Gen 8
Brand: Trek
SKU: 5337941
Price: 435499.0 INR
Availability: InStock

Trek Madone SL 6 Gen 8 is a road bike tuned for fast road riding, climbing and race-paced group efforts. The platform is built around a 500 Series OCLV Carbon frame paired with a Madone Gen 8 full ...

Size: XS

Recommended rider height: Under 155 cm

XS S M ML L XL

Color: Gloss Dark Star/Matte Deep Smoke

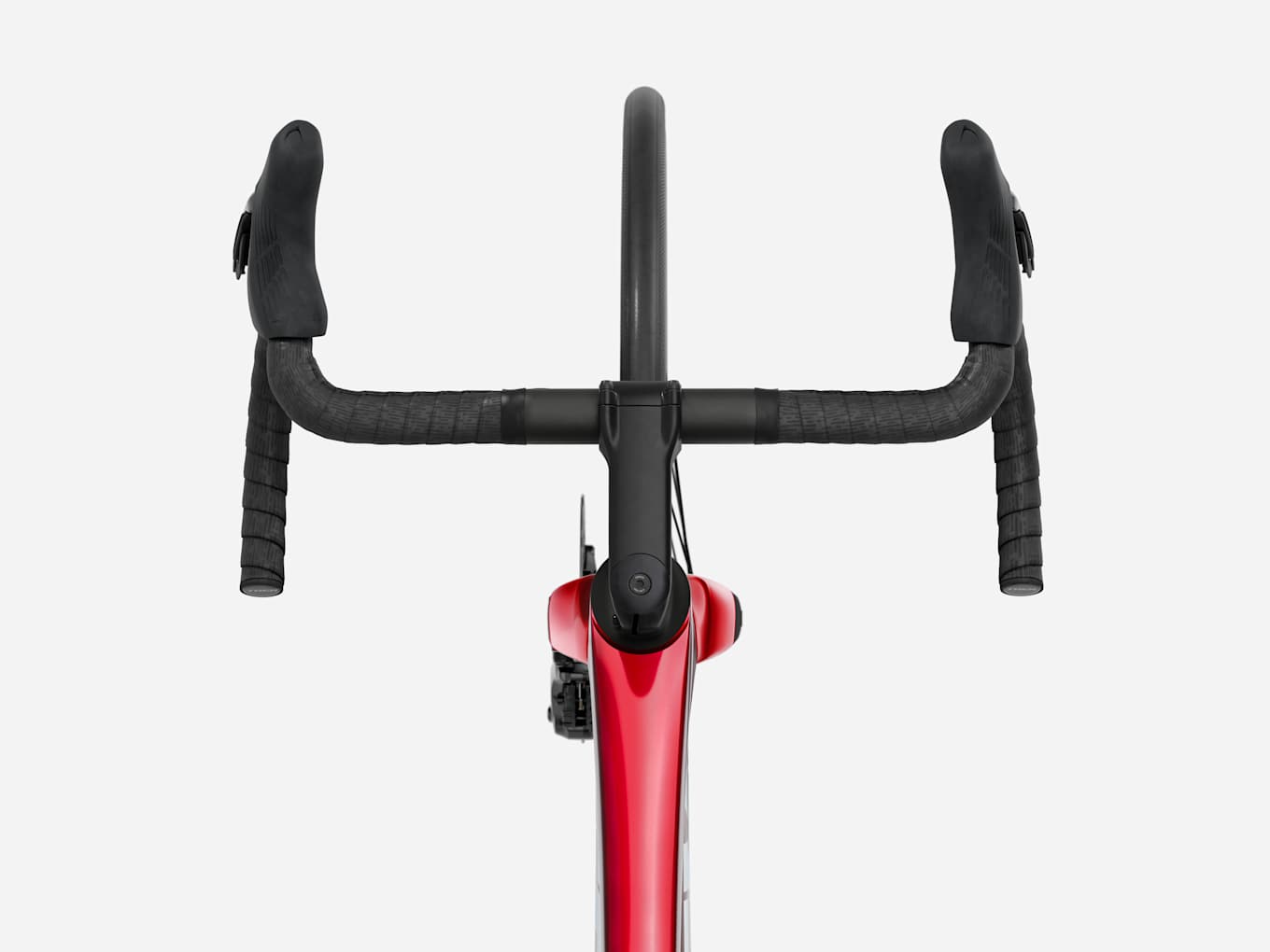

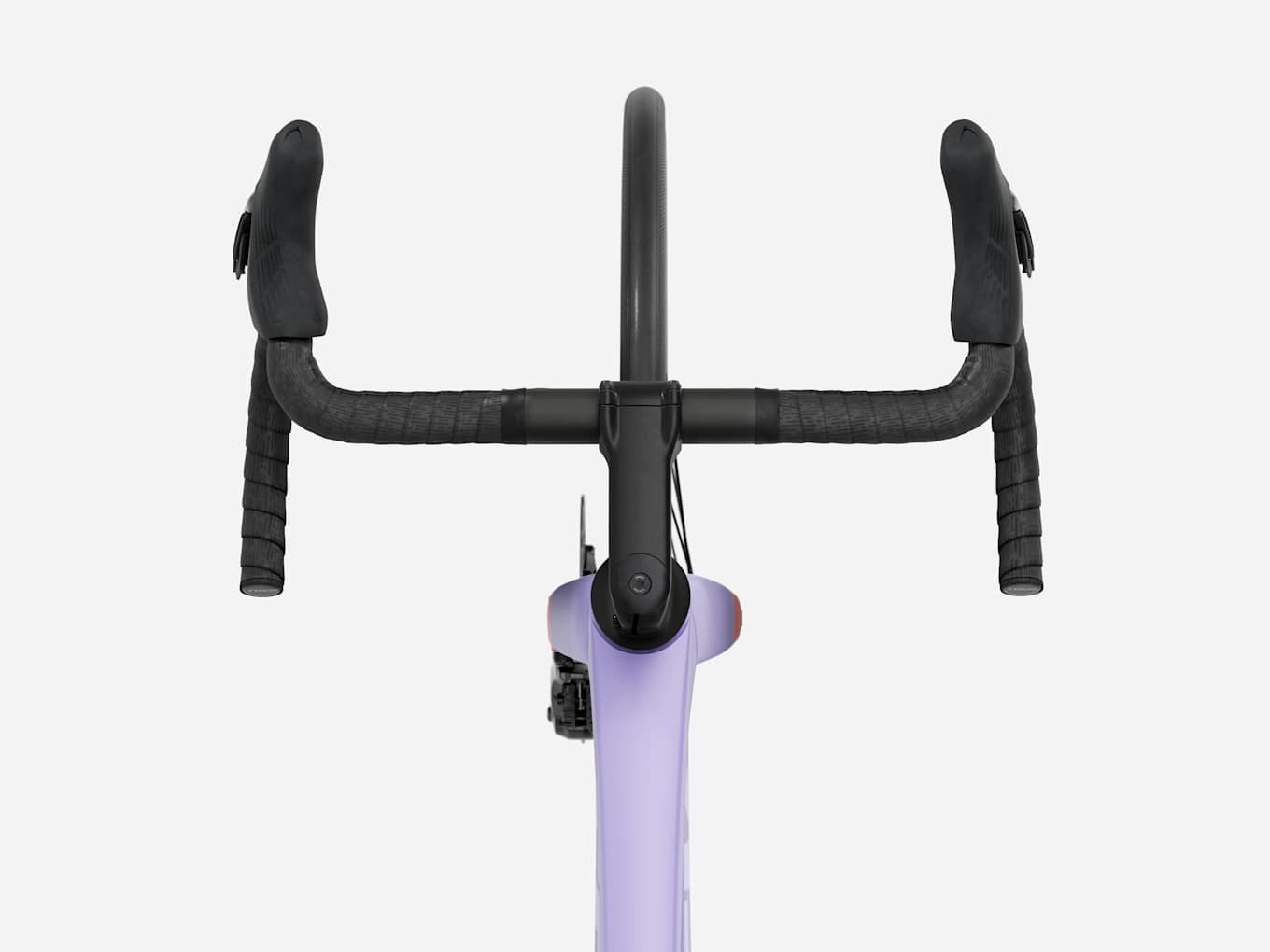

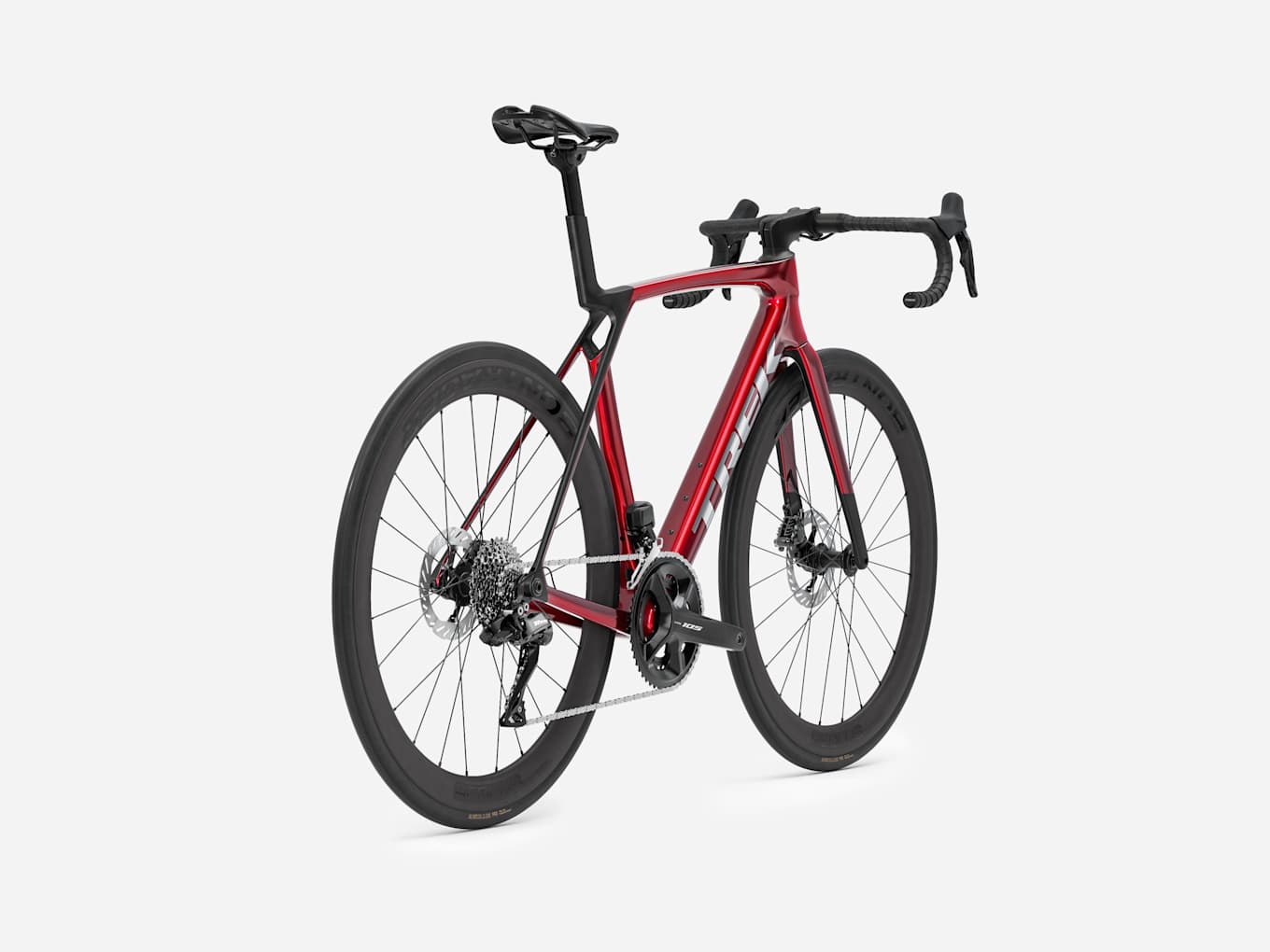

Gloss Dark Star/Matte Deep Smoke Gloss Fury Red/Matte Deep Smoke Gloss Crystal White/Matte Deep Smoke Matte Lavender Haze/Deep Smoke Era White Matte Cobalt Blue/Trek Black/Living Coral

Hurry up! Only 0 item(s) items left in stock

Regular price Rs. 435,499.00 INR

Quantity

Add to wishlist

Compare

I agree with Terms & Conditions

Sku: 5337941
Available: Instock
Collections: Bikes, New Arrivals, Performance Road Bikes, Road Bikes, Trek
Type: Road Bike

Estimate delivery times: 3-5 days International.

Use code 'WELCOME15' for discount 15% on your first order.

Free shipping and returns: On all orders over $150.

Guarantee Safe Checkout:

Pairs well with

Trek Madone SL 6 Gen 8

Quantity

Description
Key Specifications
Detailed Specifications
Sizing
Geometry

Trek Madone SL 6 Gen 8 is made for rides where you want a dependable road bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.

The main details to look at are Frame: 500 Series OCLV Carbon, Fork: Madone Gen 8 full carbon, and Wheels: Bontrager Aeolus Elite 50, OCLV Carbon. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.

Key features

Good for: rides where you want a dependable road bike
Brand: Trek
Category: Road Bikes
Frame: 500 Series OCLV Carbon
Fork: Madone Gen 8 full carbon
Wheels: Bontrager Aeolus Elite 50, OCLV Carbon
Tyres: Bontrager Aeolus Pro, 700x28 mm

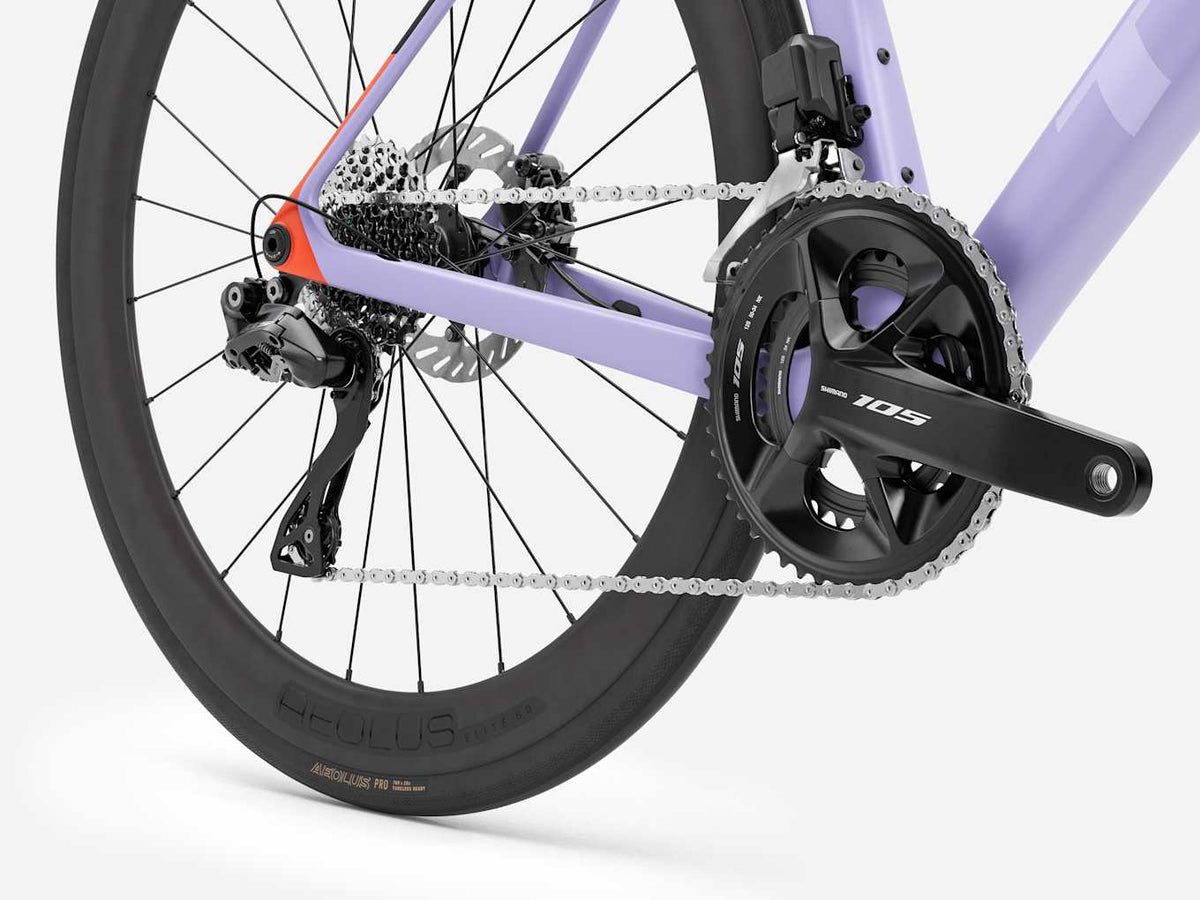

Drivetrain: Shimano 105 Di2, 2x12
Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

Frame	500 Series OCLV Carbon
Fork	Madone Gen 8 full carbon
Wheels	Bontrager Aeolus Elite 50, OCLV Carbon
Tyres	Bontrager Aeolus Pro, 700x28 mm
Drivetrain	Shimano 105 Di2, 2x12

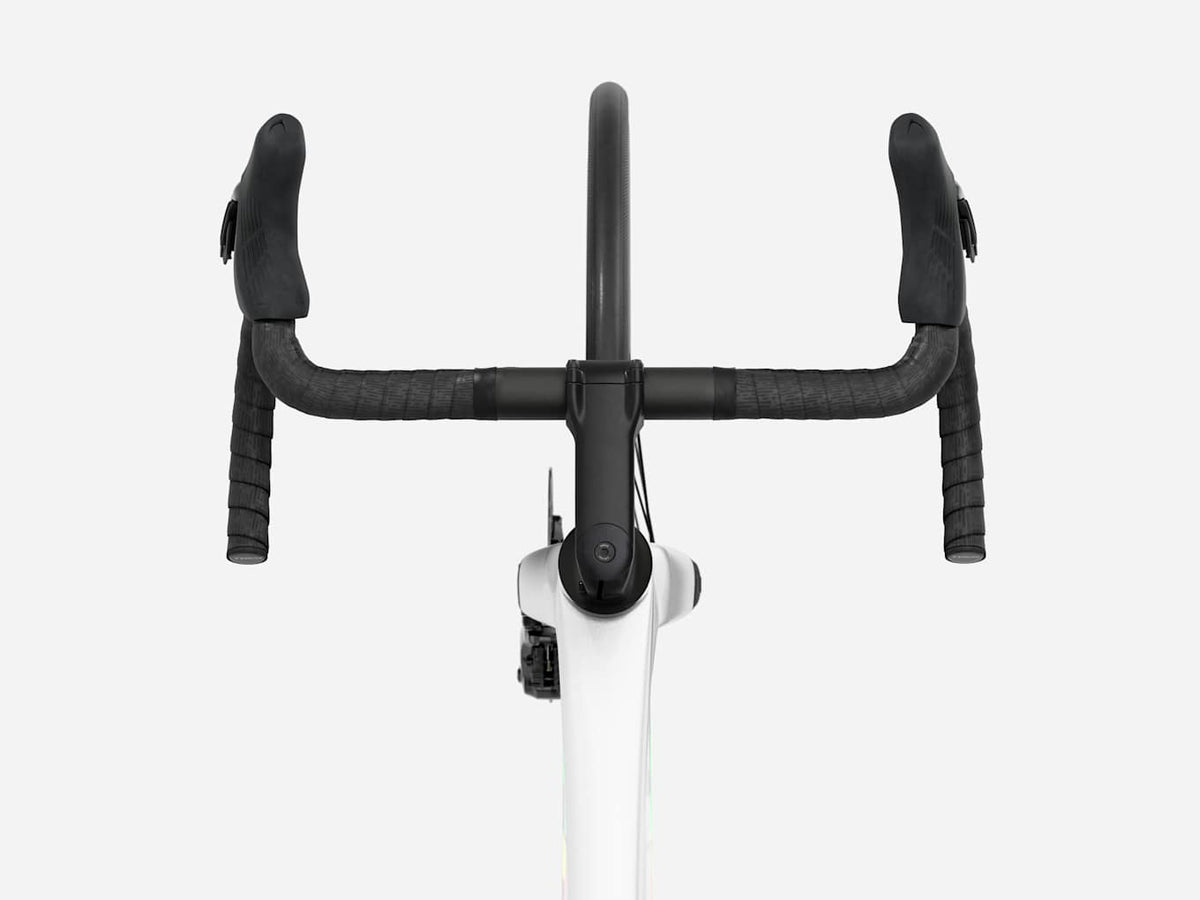

Handlebar	Bontrager Comp, alloy
Weight	ML - 8.16 kg / 17.99 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Component	Specification	Frame size(s)
Chain	Shimano SLX M7100, 12-speed	XS, S, M, ML, L, XL

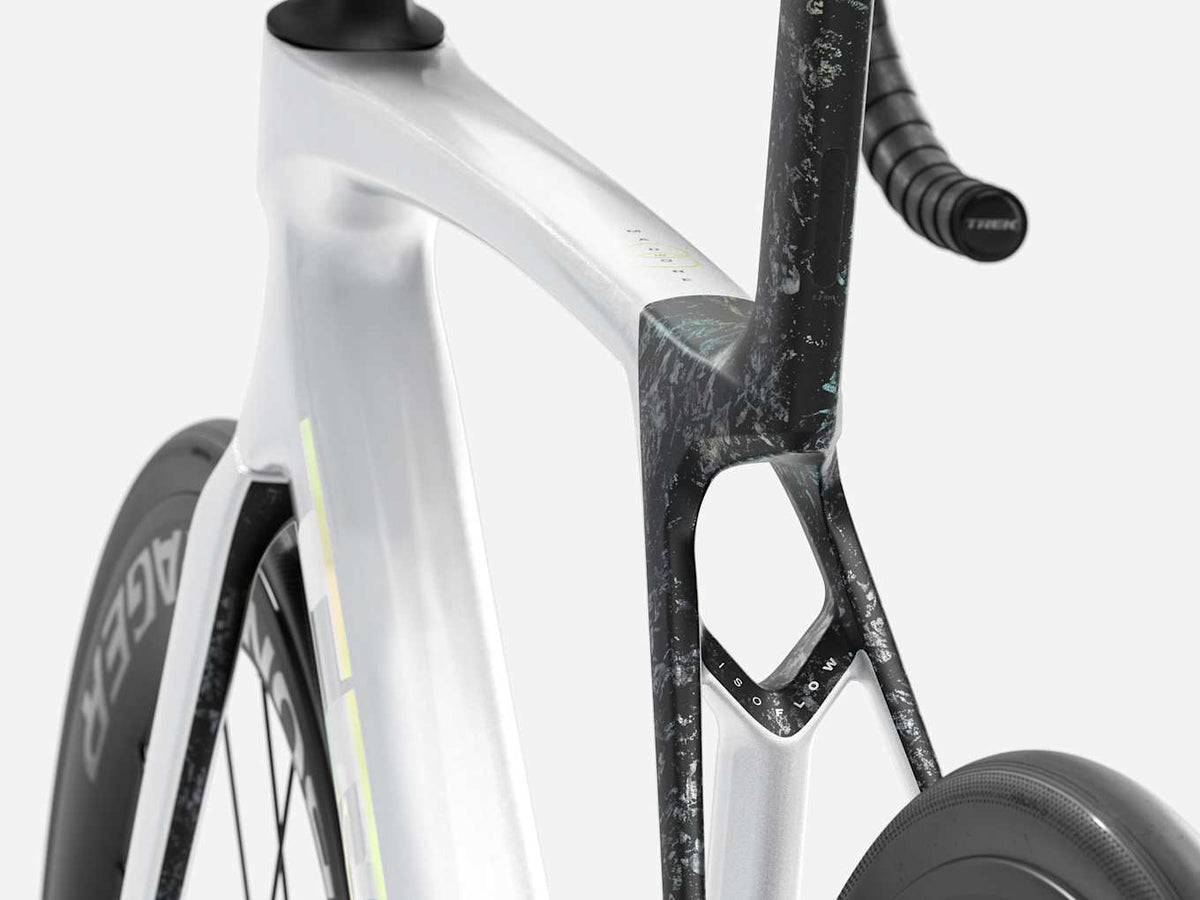

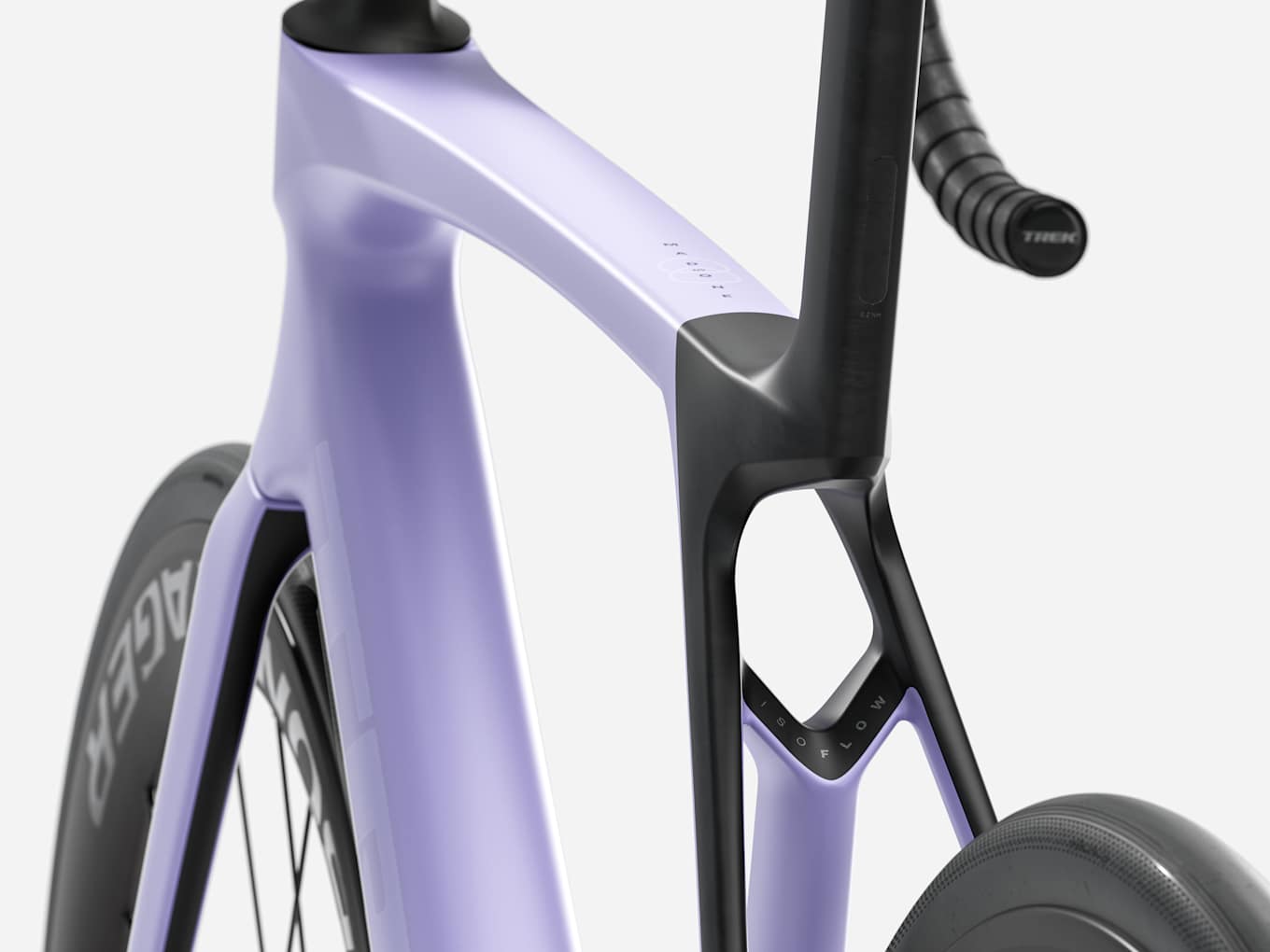

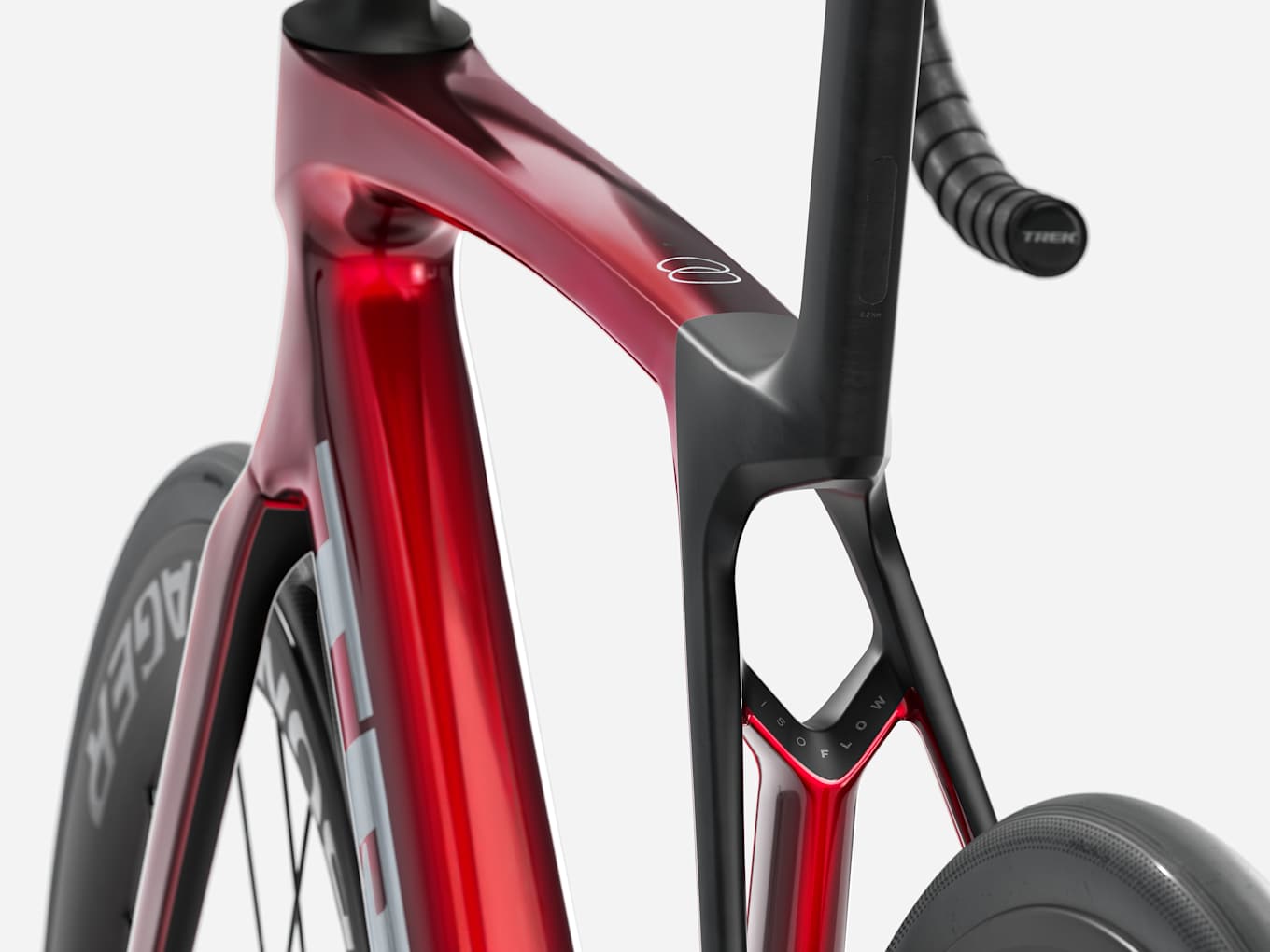

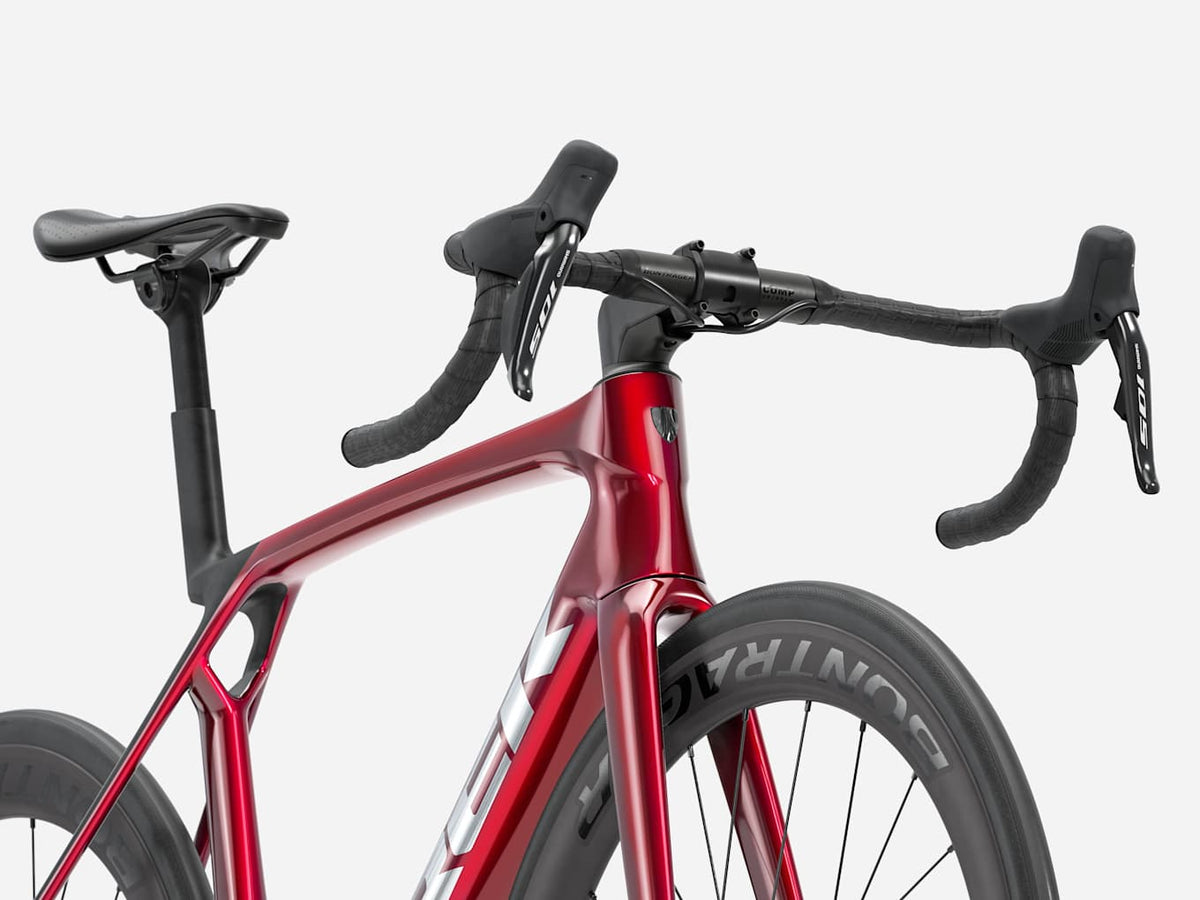

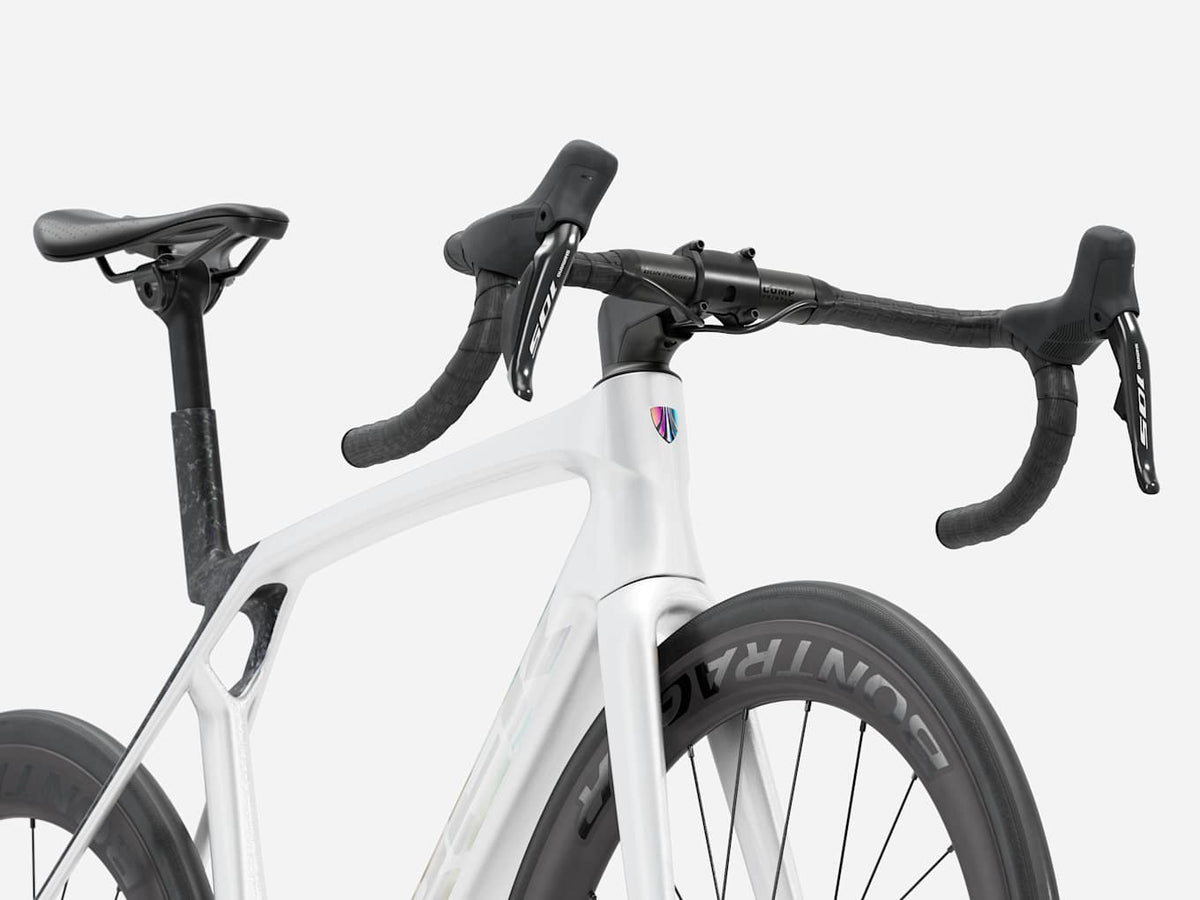

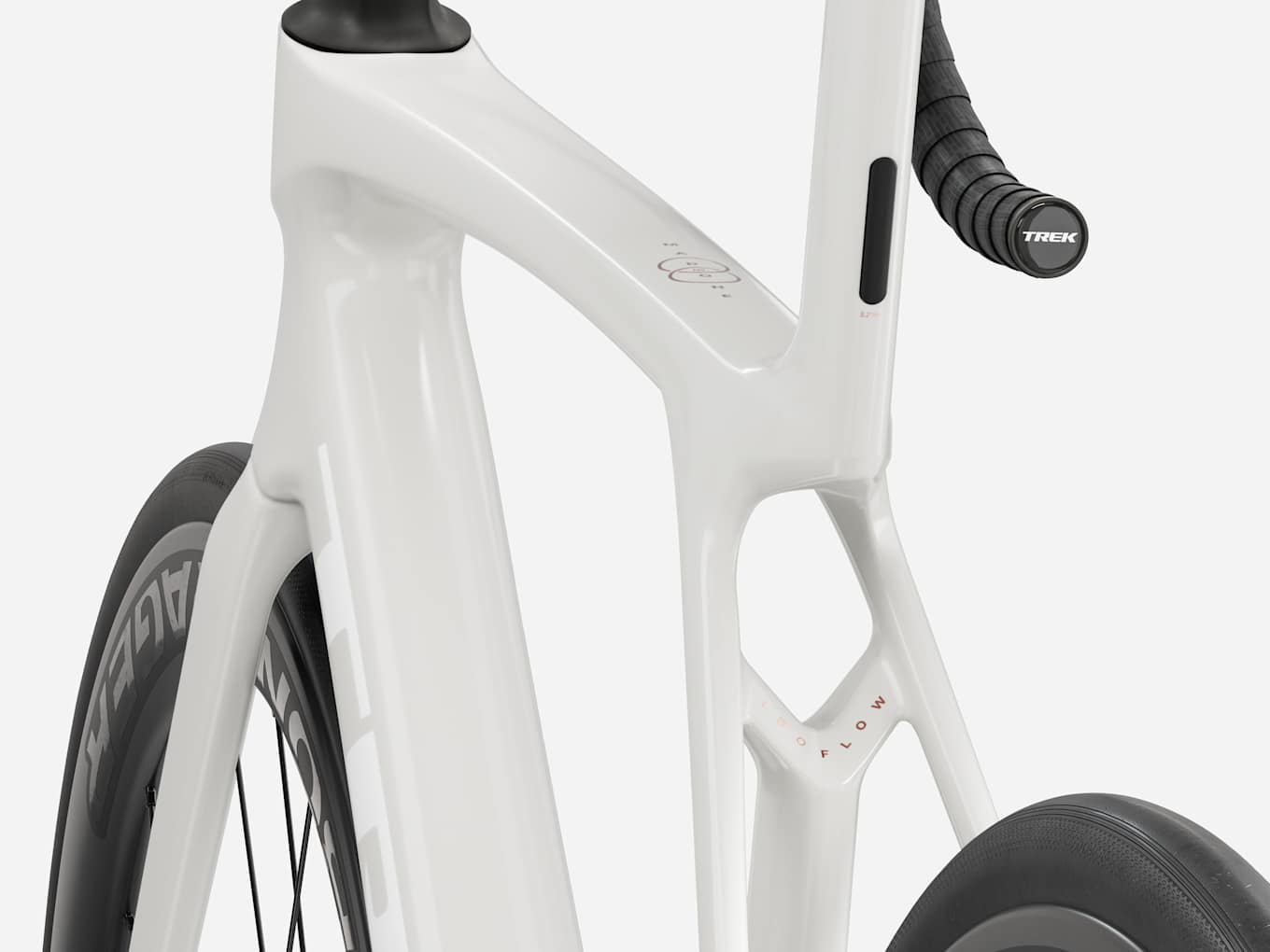

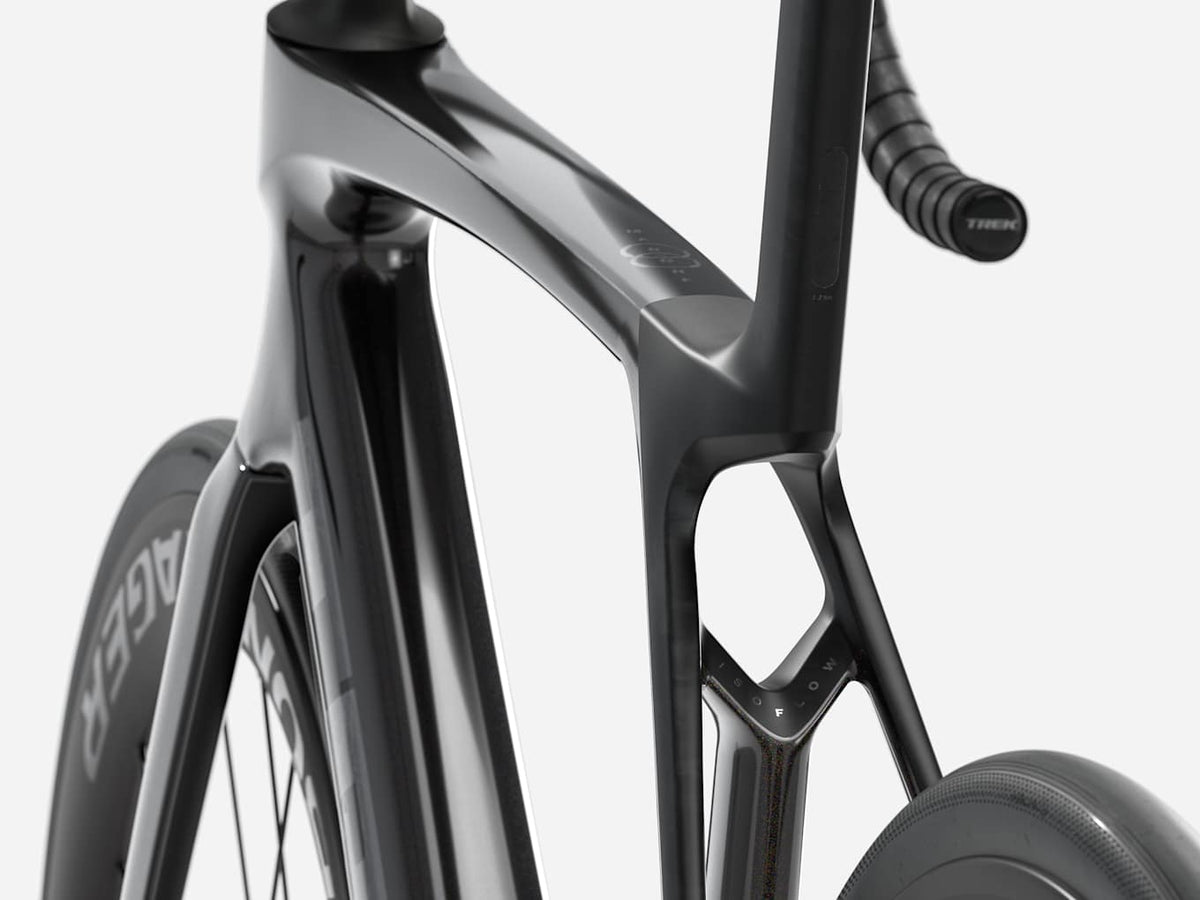

Frame	500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle	XS, S, M, ML, L, XL
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle	XS, S, M, ML, L, XL

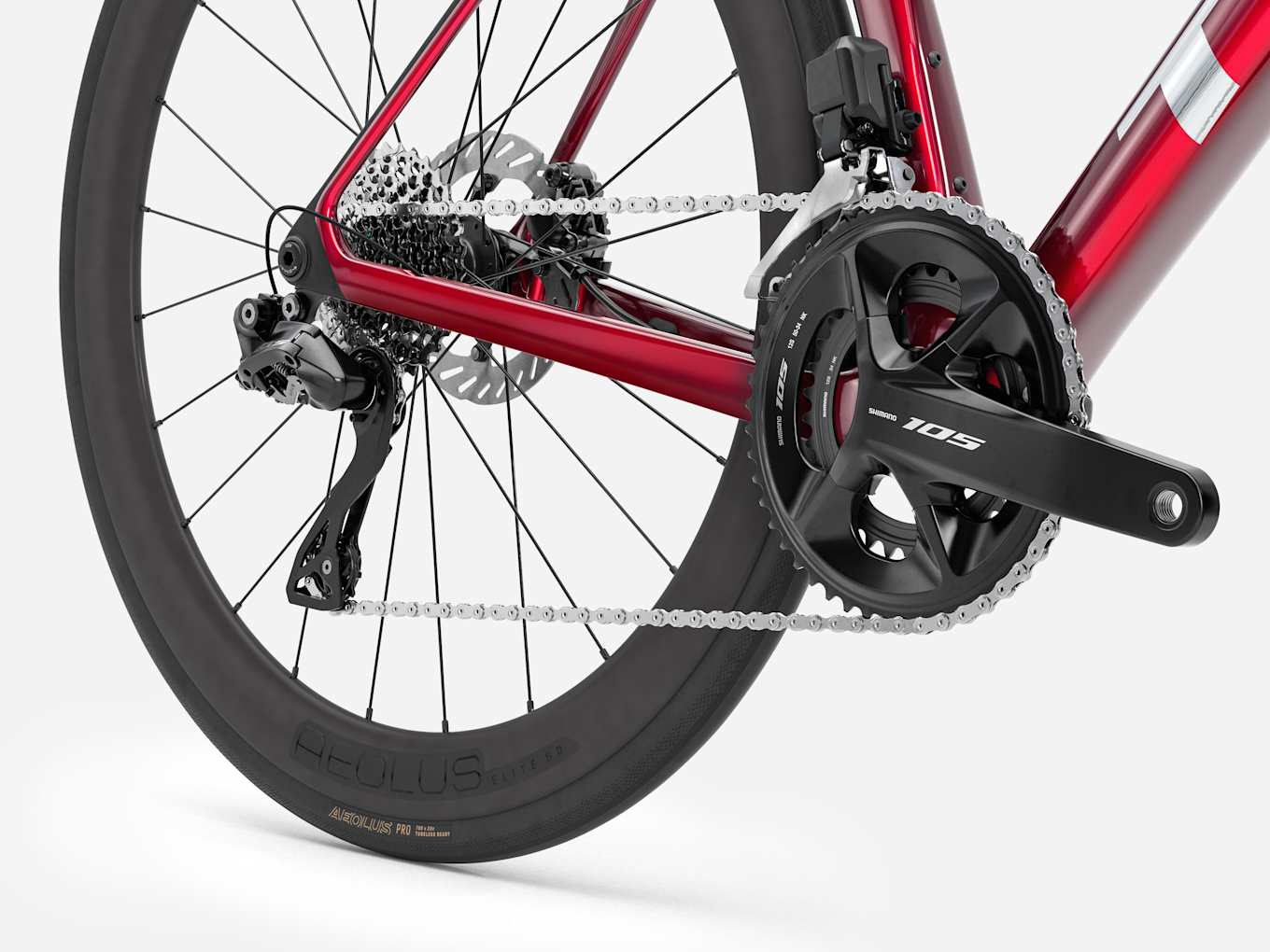

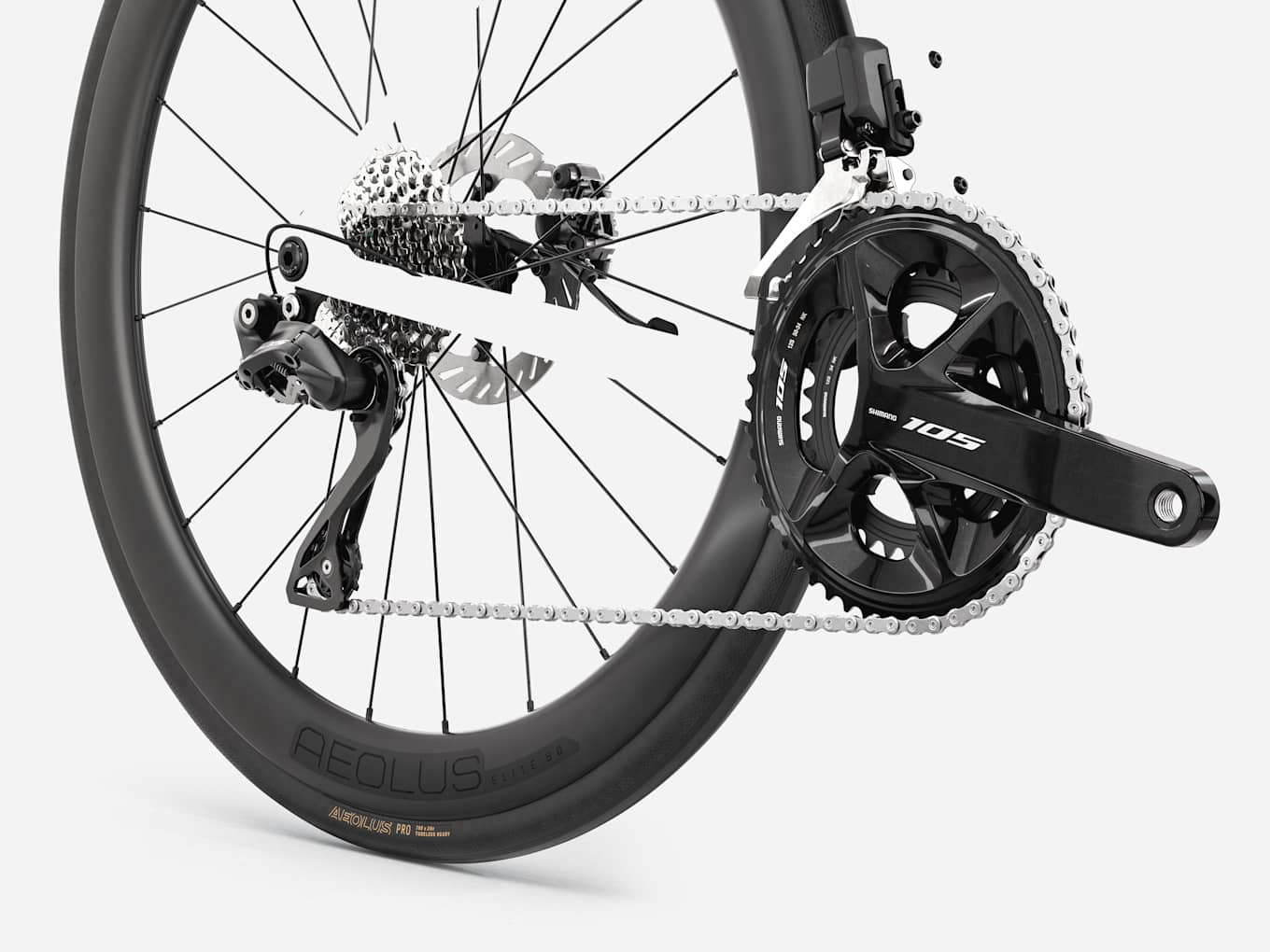

Crank	Shimano 105 R7100, 50/34, 165 mm length	XS, S
Crank	Shimano 105 R7100, 50/34, 170 mm length	M, ML
Crank	Shimano 105 R7100, 50/34, 172.5 mm length	L, XL
Stem	Trek RCS Pro, -7-degree, 80 mm length	XS
Stem	Trek RCS Pro, -7-degree, 90 mm length	S, M
Stem	Trek RCS Pro, -7-degree, 100 mm length	ML, L
Stem	Trek RCS Pro, -7-degree, 110 mm length	XL

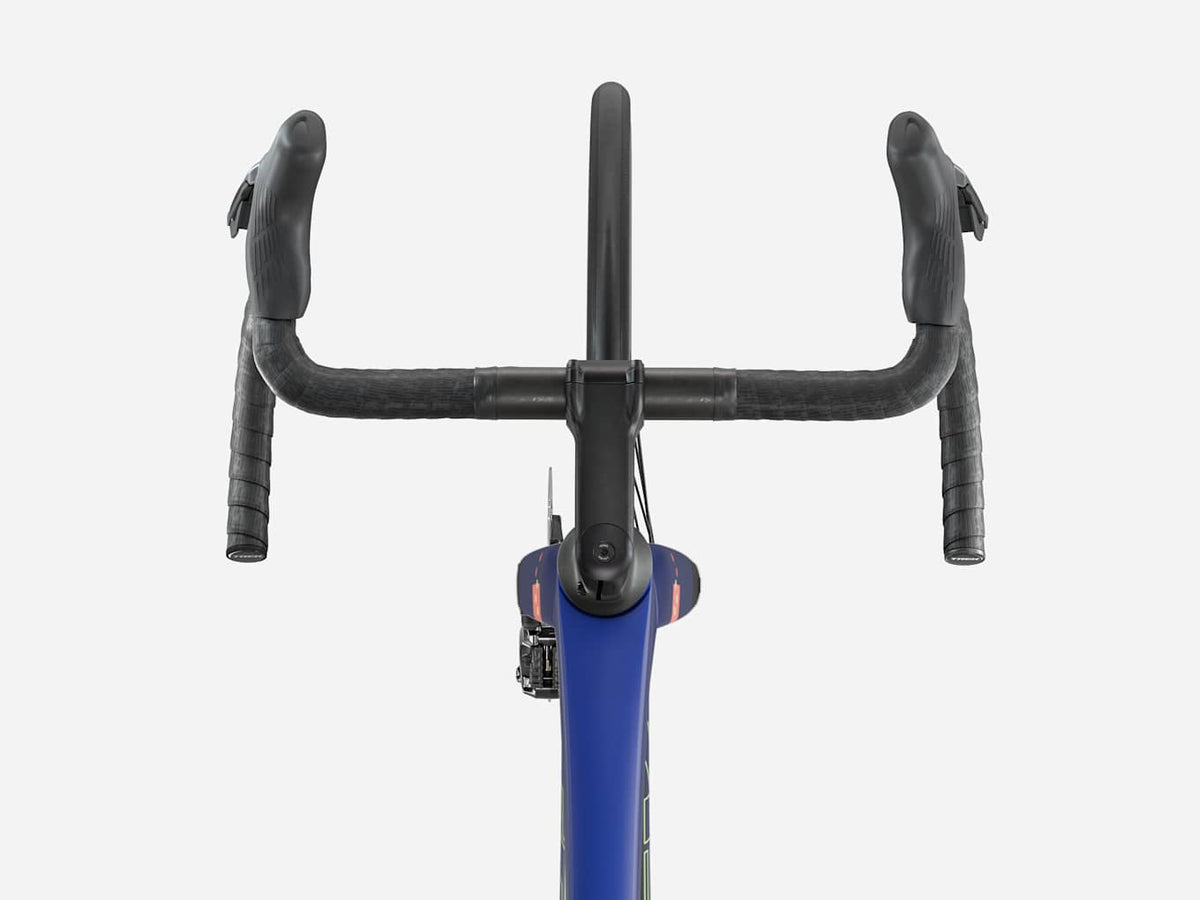

Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width	XS
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width	S, M
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width	ML, L
Handlebar	Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width	XL
Saddle	Bontrager Aeolus Elite, austenite rails, 145 mm width	XS, S, M, ML, L, XL
Rear derailleur	Shimano 105 R7150 Di2, 36T max cog	XS, S, M, ML, L, XL
Cassette	Shimano 105 7101, 11-34, 12-speed	XS, S, M, ML, L, XL
Bottom bracket	Praxis, T47 threaded, internal bearing	XS, S, M, ML, L, XL
Battery	Shimano BT-DN300	XS, S, M, ML, L, XL
Valve	Bontrager XXX TLR valve, 67 mm	XS, S, M, ML, L, XL
Shifter	Shimano 105 R7170 Di2, 12-speed	XS, S, M, ML, L, XL
Brake rotor	Shimano CL700, CentreLock, 160 mm	XS, S, M, ML, L, XL
Brake	Shimano 105 hydraulic disc, flat mount	XS, S, M, ML, L, XL
Skewer rear	Bontrager Switch chamfered thru axle, removable lever	XS, S, M, ML, L, XL
Wheel rear	Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle	XS, S, M, ML, L, XL
Tyre	Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm	XS, S, M, ML, L, XL
Seatpost	Madone aero carbon seat post, 0 mm offset, short length	XS, S, M, ML, L, XL
Tyre part	Bontrager TLR sealant, 180 ml/6 oz	XS, S, M, ML, L, XL
Spacer	Trek Road Integrated Stem Spacers	XS, S, M, ML, L, XL
Wheel front	Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle	XS, S, M, ML, L, XL
Handlebar tape	Trek EcoTack	XS, S, M, ML, L, XL
Front derailleur	Shimano 105 R7150 Di2, braze-on, down swing	XS, S, M, ML, L, XL
Skewer front	Bontrager Switch chamfered thru axle	XS, S, M, ML, L, XL
Rim strip	Bontrager TLR	XS, S, M, ML, L, XL

Size	Rider height	Inseam
XS (47cm)	4'8" - 5'2" / 143 - 158 cm	26" - 29" / 67 - 74 cm
S (50cm)	5'2" - 5'4" / 158 - 162 cm	29" - 30" / 74 - 76 cm
M (52-54cm)	5'4" - 5'8" / 162 - 173 cm	30" - 32" / 76 - 81 cm
ML (56cm)	5'8" - 5'10" / 173 - 179 cm	32" - 33" / 81 - 84 cm
L (58cm)	5'10" - 6'2" / 179 - 188 cm	33" - 35" / 84 - 88 cm
XL (60-62cm)	6'2" - 7'0" / 188 - 213 cm	35" - 39" / 88 - 100 cm

Measurement	XS	S	M	ML	L	XL
Wheel size	700c	700c	700c	700c	700c	700c
A Seat tube	40.4	44.0	47.6	51.2	54.8	60.9
B Seat tube angle	73.8°	73.8°	73.6°	73.4°	73.4°	73.4°
C Head tube length	10.0	12.1	13.6	15.0	17.2	20.1
D Head tube angle	71.6°	72.2°	72.9°	73.5°	73.8°	73.9°
E Top tube effective	51.7	53.2	54.5	55.7	56.8	58.4
G BB drop	7.2	7.2	7.0	7.0	6.8	6.8
H Chainstay	41.0	41.0	41.0	41.0	41.1	41.2
I Fork offset	5.0	4.5	4.5	4.0	4.0	4.0
J Trail	6.1	6.2	5.8	5.9	5.7	5.7
K Wheelbase	97.1	97.6	98.1	98.0	99.0	100.7
L Standover	70.4	73.4	76.2	79.0	82.0	86.3
M Reach	37.0	37.8	38.4	38.9	39.4	40.2
N Stack	50.7	53.0	54.6	56.2	58.2	61.0
Front center	57.2	57.7	58.2	58.1	58.9	60.4
Saddle rail height min short	54.9	58.5	62.1	65.7	69.3	75.4
Saddle rail height max short	61.2	64.8	68.4	72.0	75.6	81.7
Saddle rail height min tall	59.2	62.8	66.4	70.0	73.6	79.7
Saddle rail height max tall	65.4	69.0	72.6	76.2	79.8	85.9
