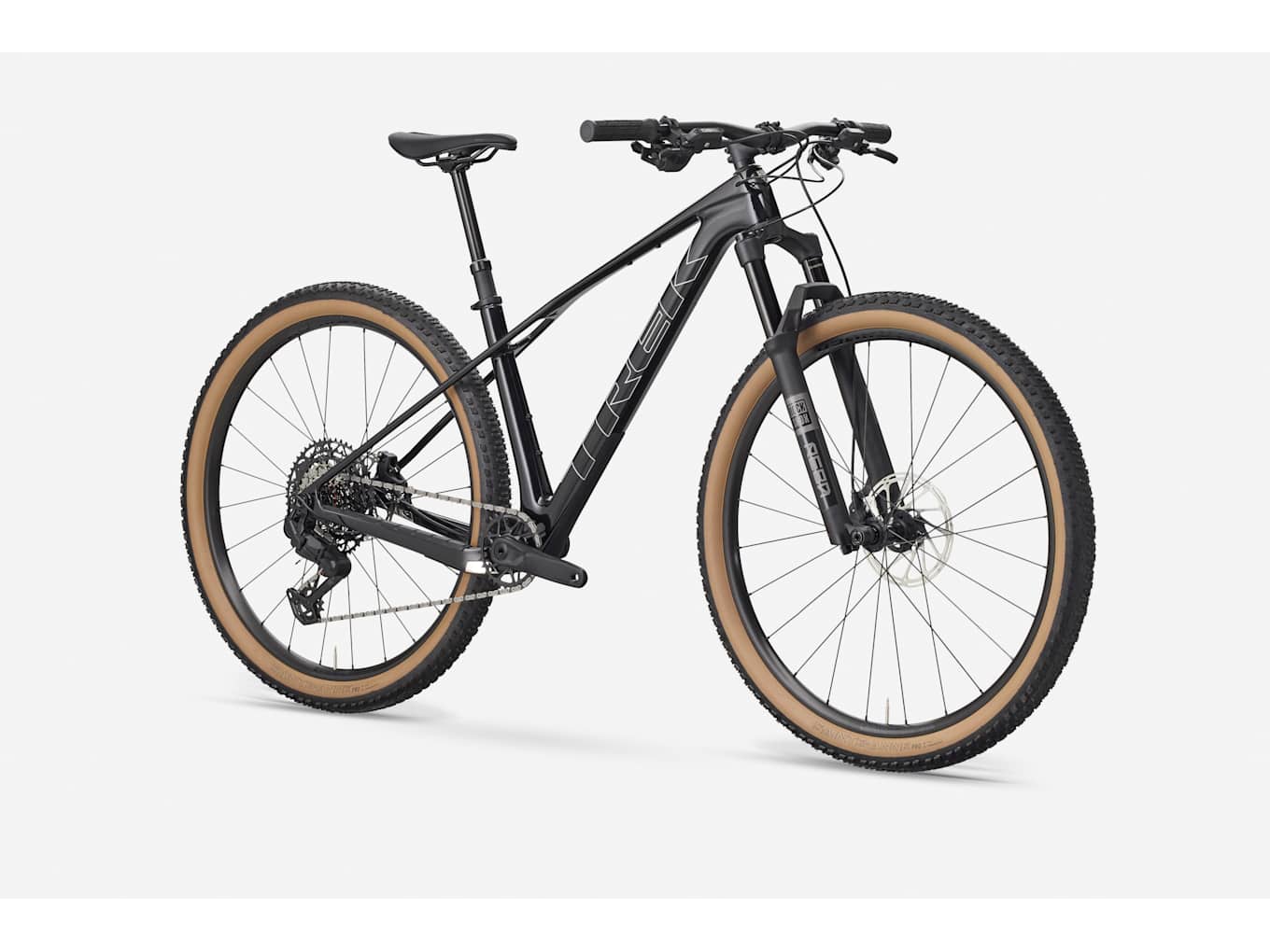

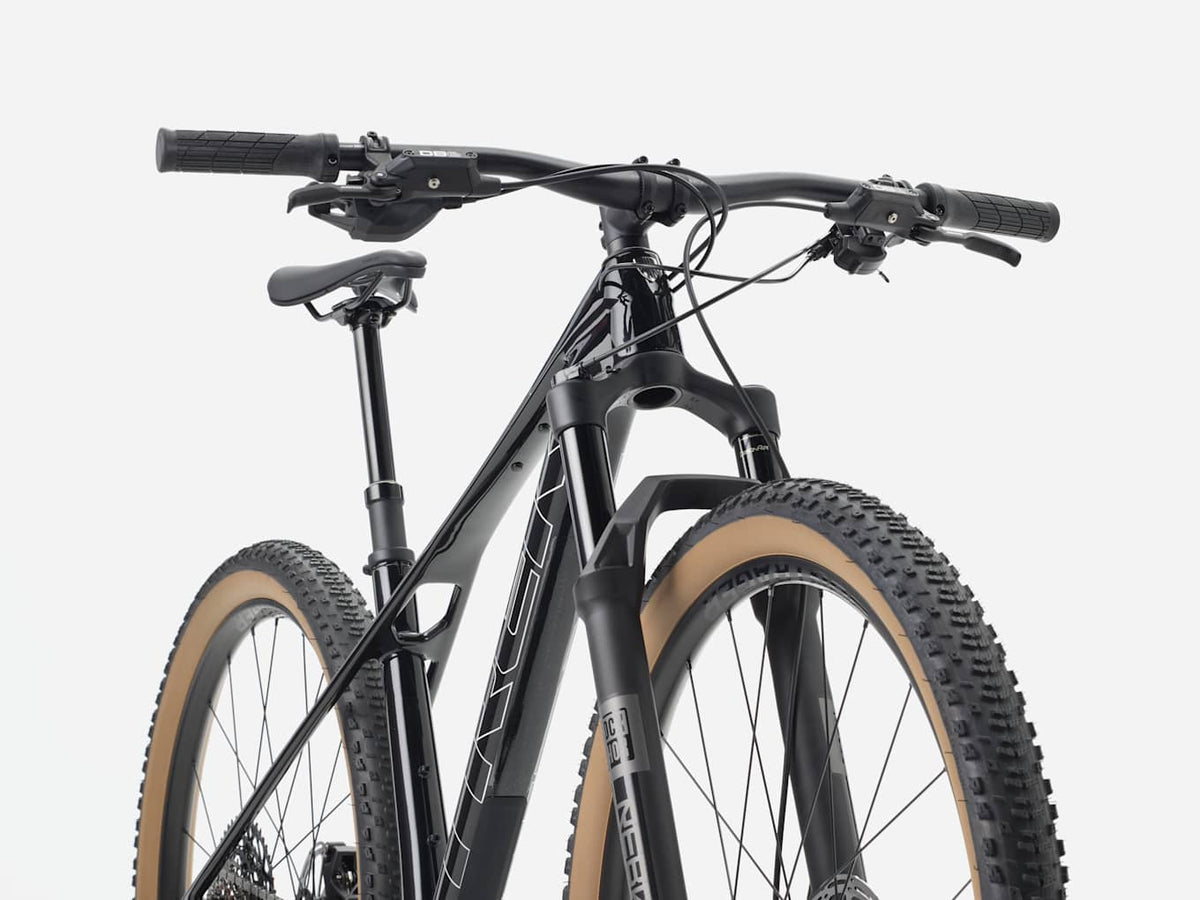

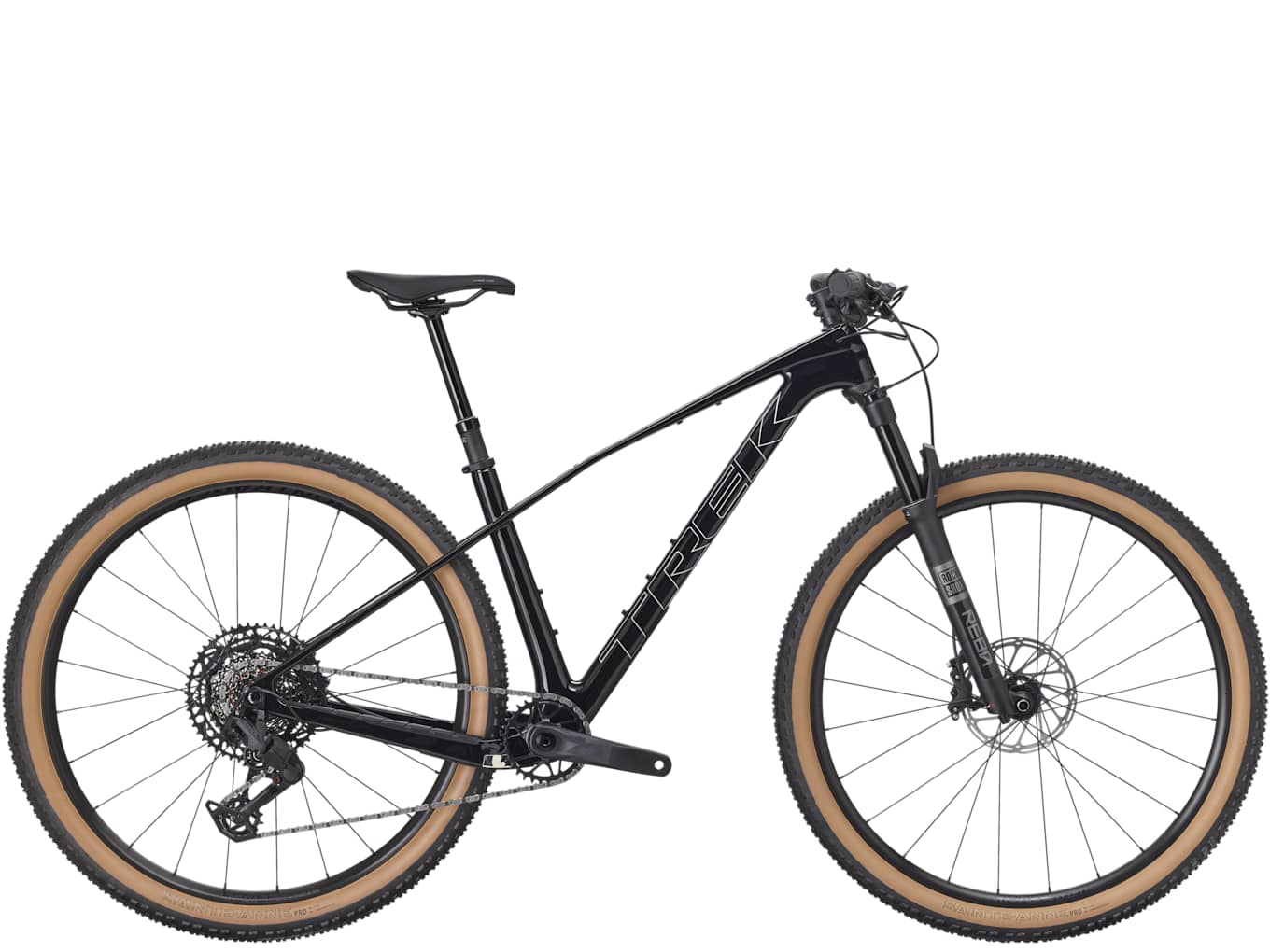

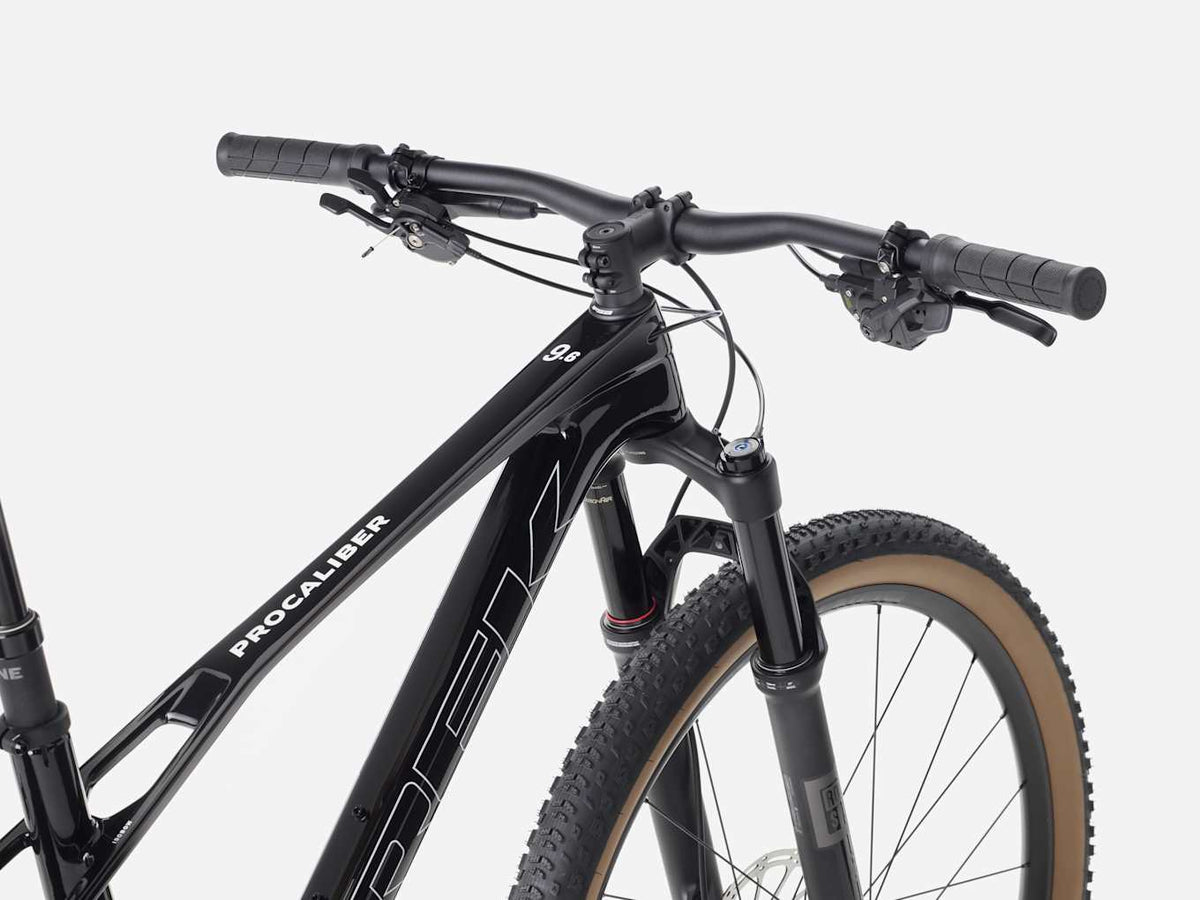

Trek Procaliber 9.6 Gen 3

Name: Trek Procaliber 9.6 Gen 3
Brand: Trek
SKU: 5337326
Price: 247199.0 INR
Availability: InStock

Trek Procaliber 9.6 Gen 3 is a mountain bike tuned for cross-country trails, efficient climbing and confident singletrack handling. The platform is built around an OCLV Mountain Carbon frame paired...

Size: S

Recommended rider height: 5'1" - 5'5" / 155 - 165 cm

S M ML L XL

Color: Dark Star

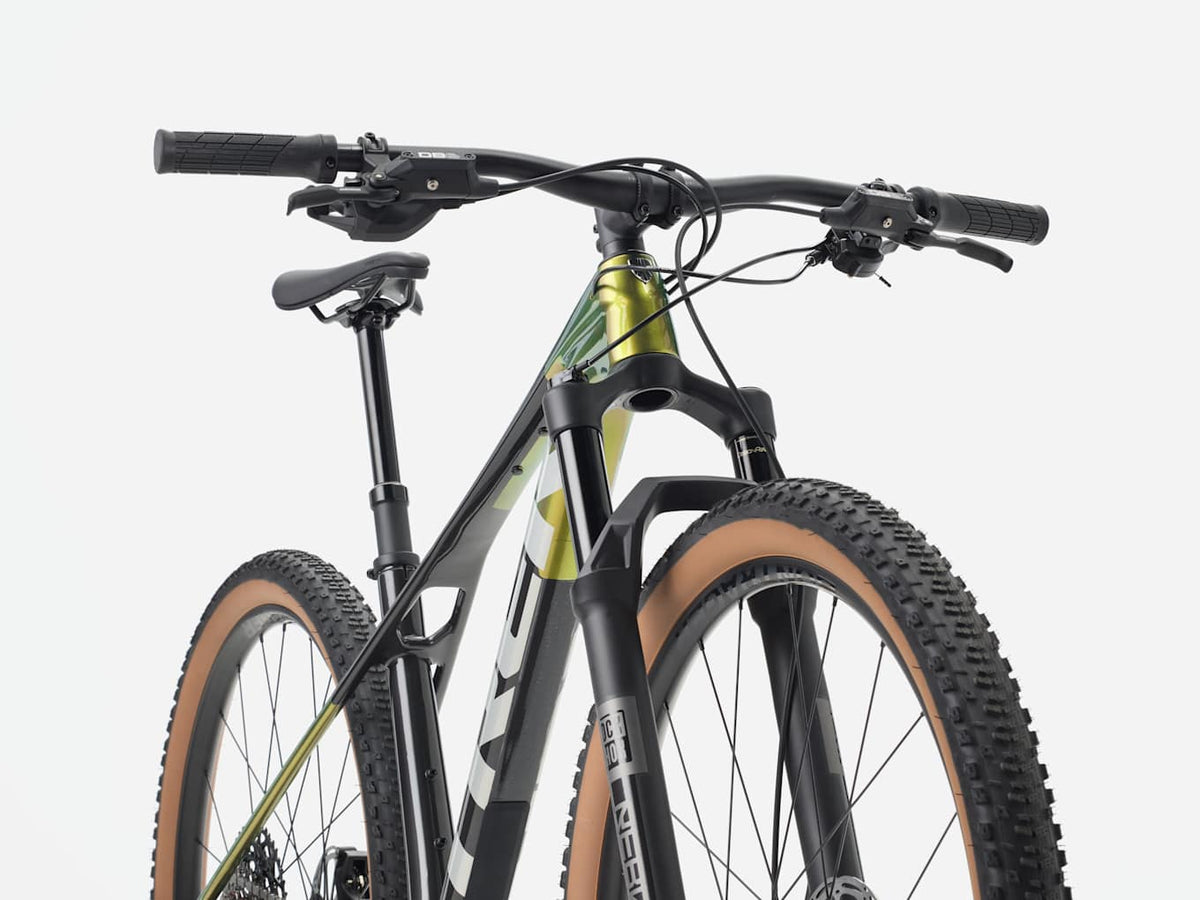

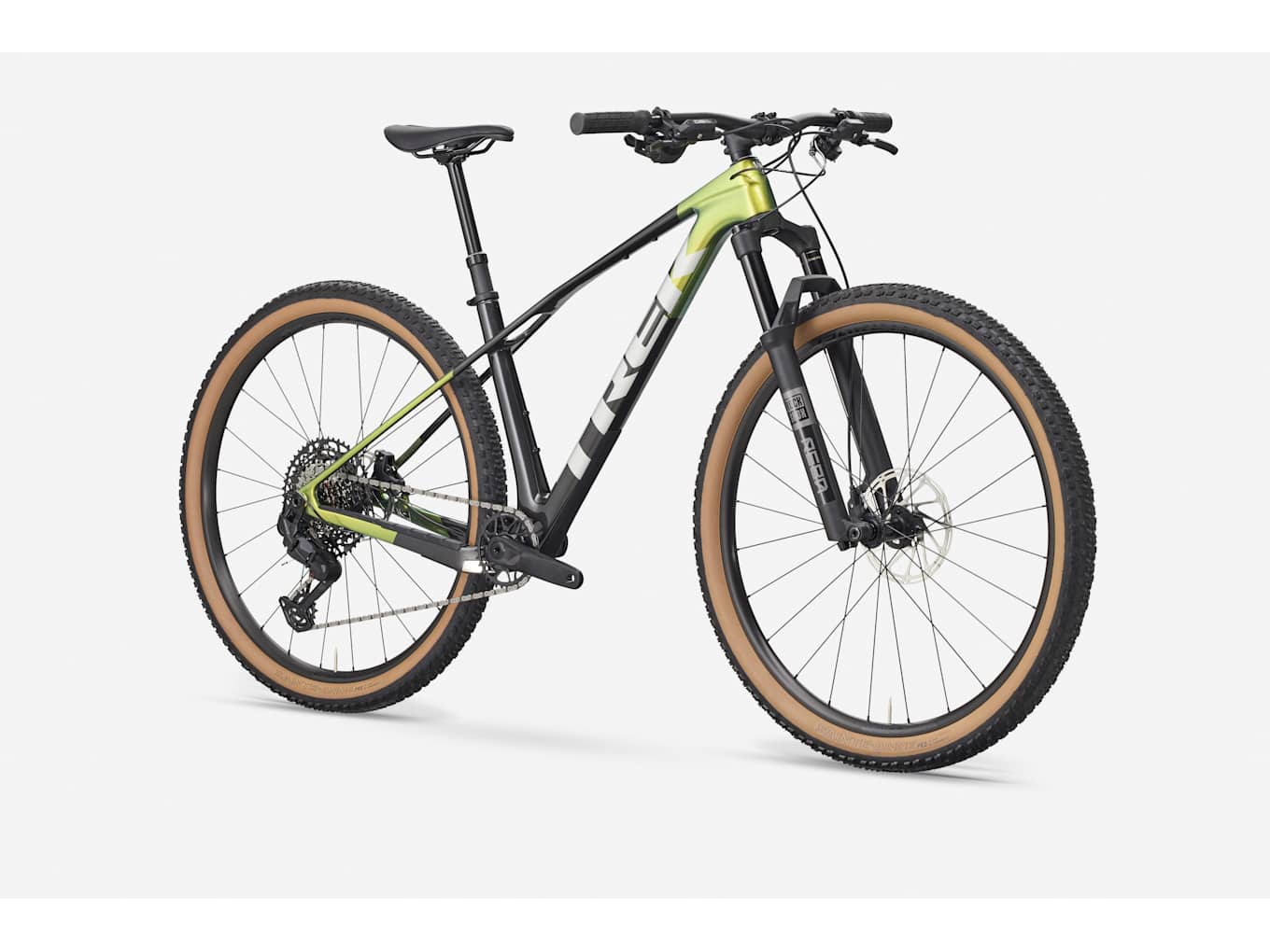

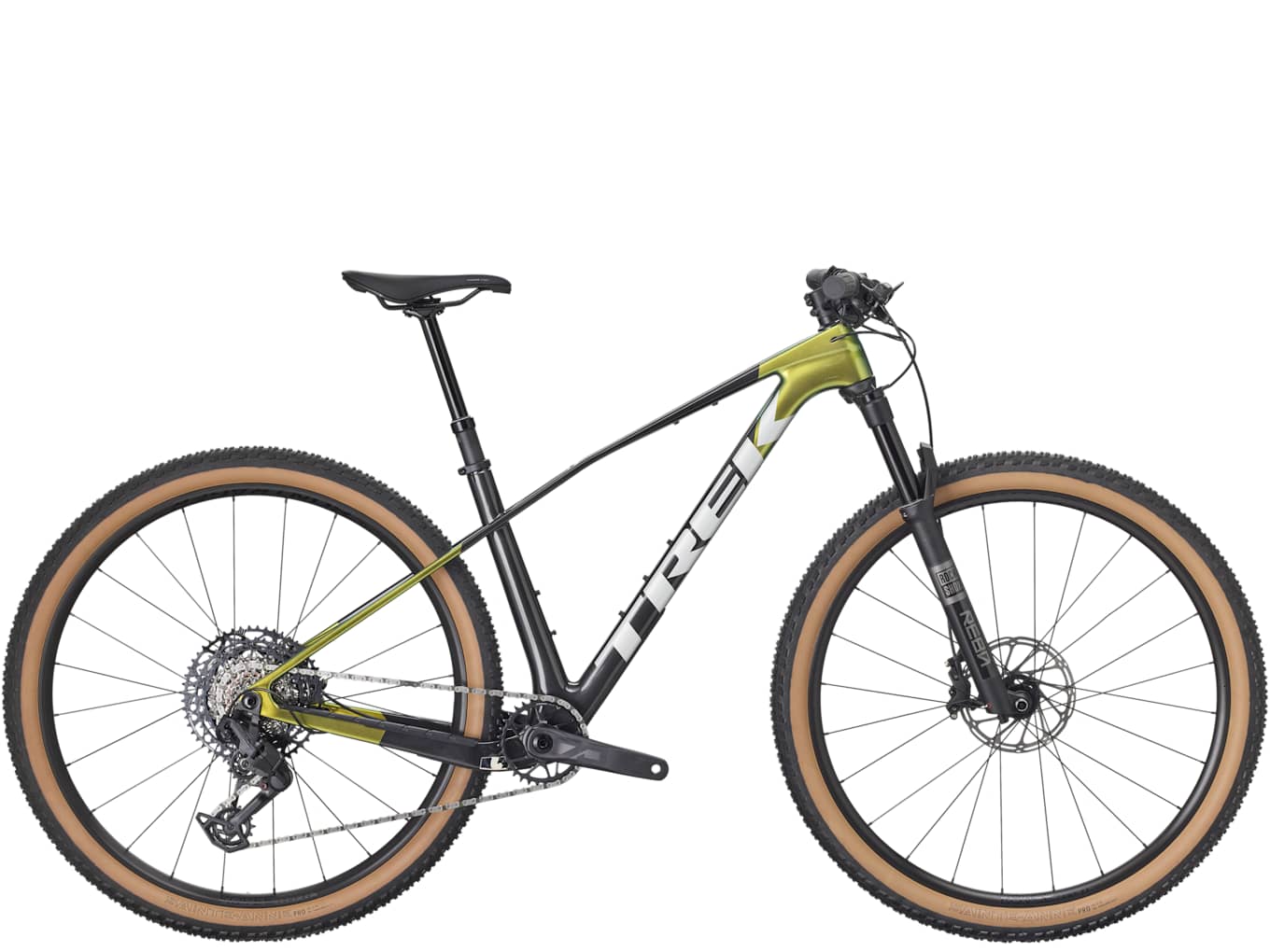

Dark Star Chameleon Green Crystal White Fury Red

Hurry up! Only 0 item(s) items left in stock

Regular price Rs. 247,199.00 INR

Quantity

Add to wishlist

Compare

I agree with Terms & Conditions

Sku: 5337326
Available: Instock
Collections: Bikes, Cross Country Mountain Bikes, Mountain Bikes, New Arrivals, Trek
Type: Mountain Bike

Estimate delivery times: 3-5 days International.

Use code 'WELCOME15' for discount 15% on your first order.

Free shipping and returns: On all orders over $150.

Guarantee Safe Checkout:

Pairs well with

Trek Procaliber 9.6 Gen 3

Quantity

Description
Key Specifications
Detailed Specifications
Sizing
Geometry

Trek Procaliber 9.6 Gen 3 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.

The main details to look at are Frame: OCLV Mountain Carbon, Fork: RockShox Reba RL, 120 mm, and Wheels: Bontrager Kovee Comp. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.

Key features

Good for: rides where you want a dependable mountain bike
Brand: Trek
Category: Mountain Bikes

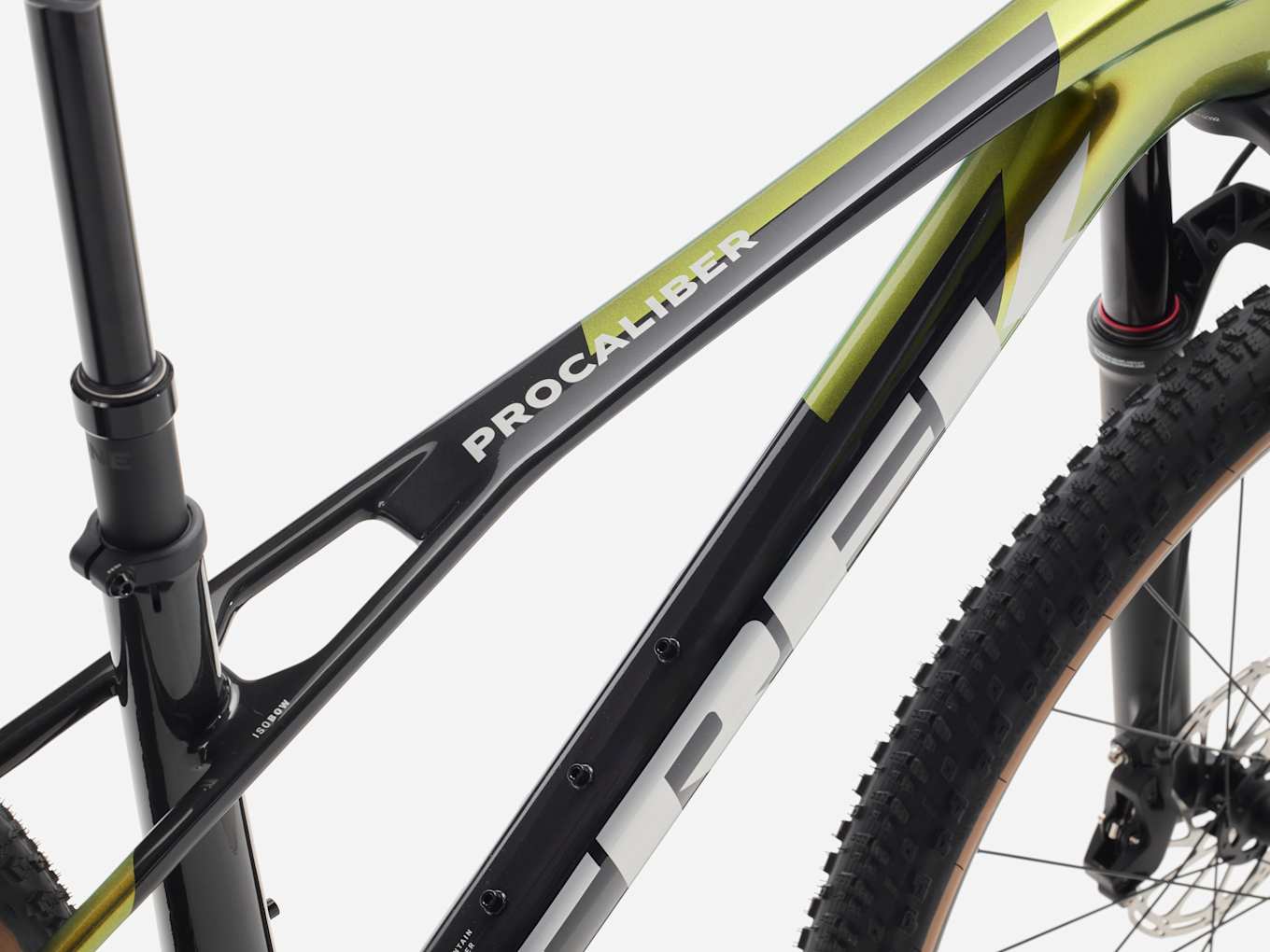

Frame: OCLV Mountain Carbon
Fork: RockShox Reba RL, 120 mm
Wheels: Bontrager Kovee Comp
Tyres: Bontrager Sainte-Anne Pro XR

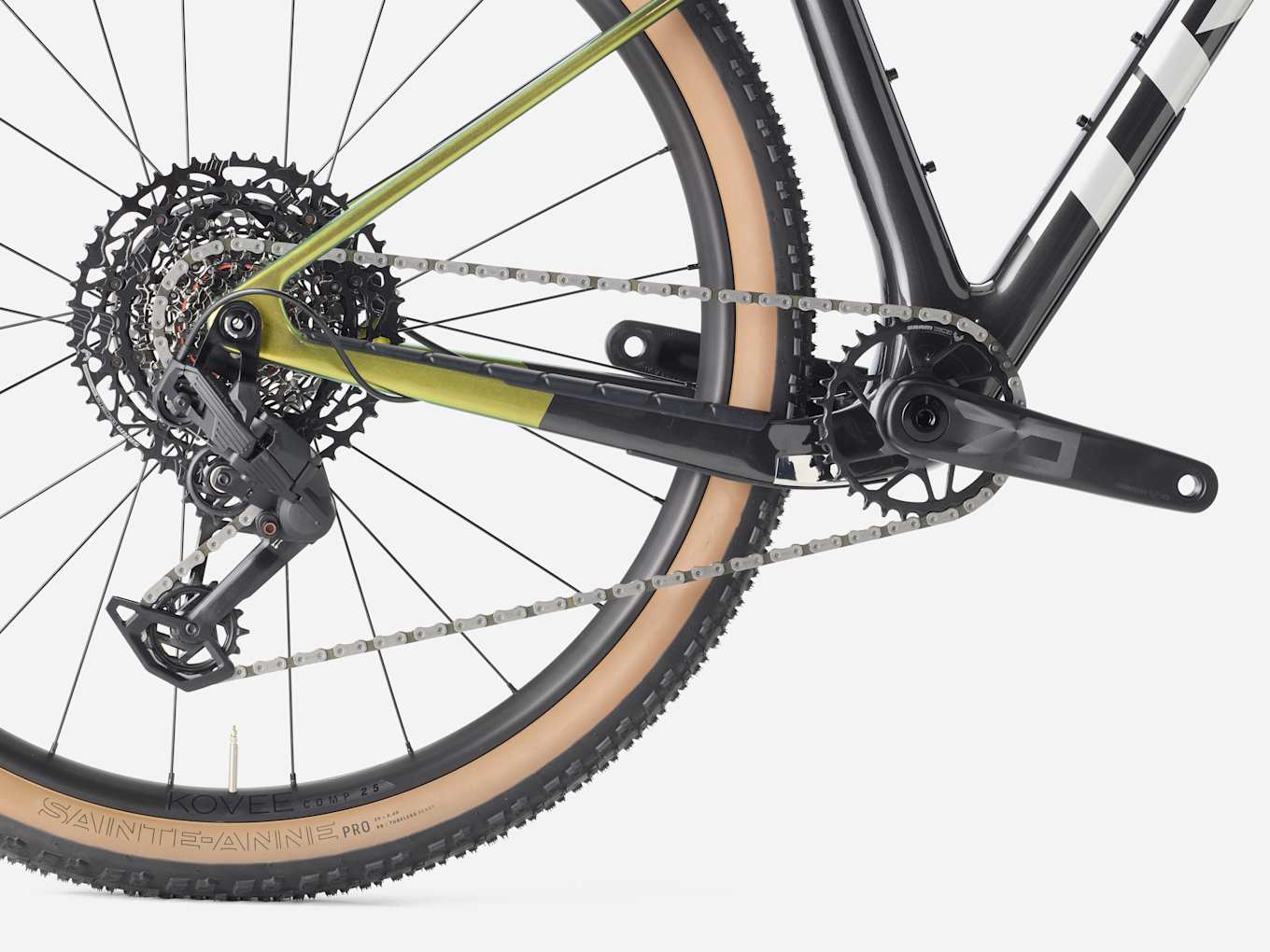

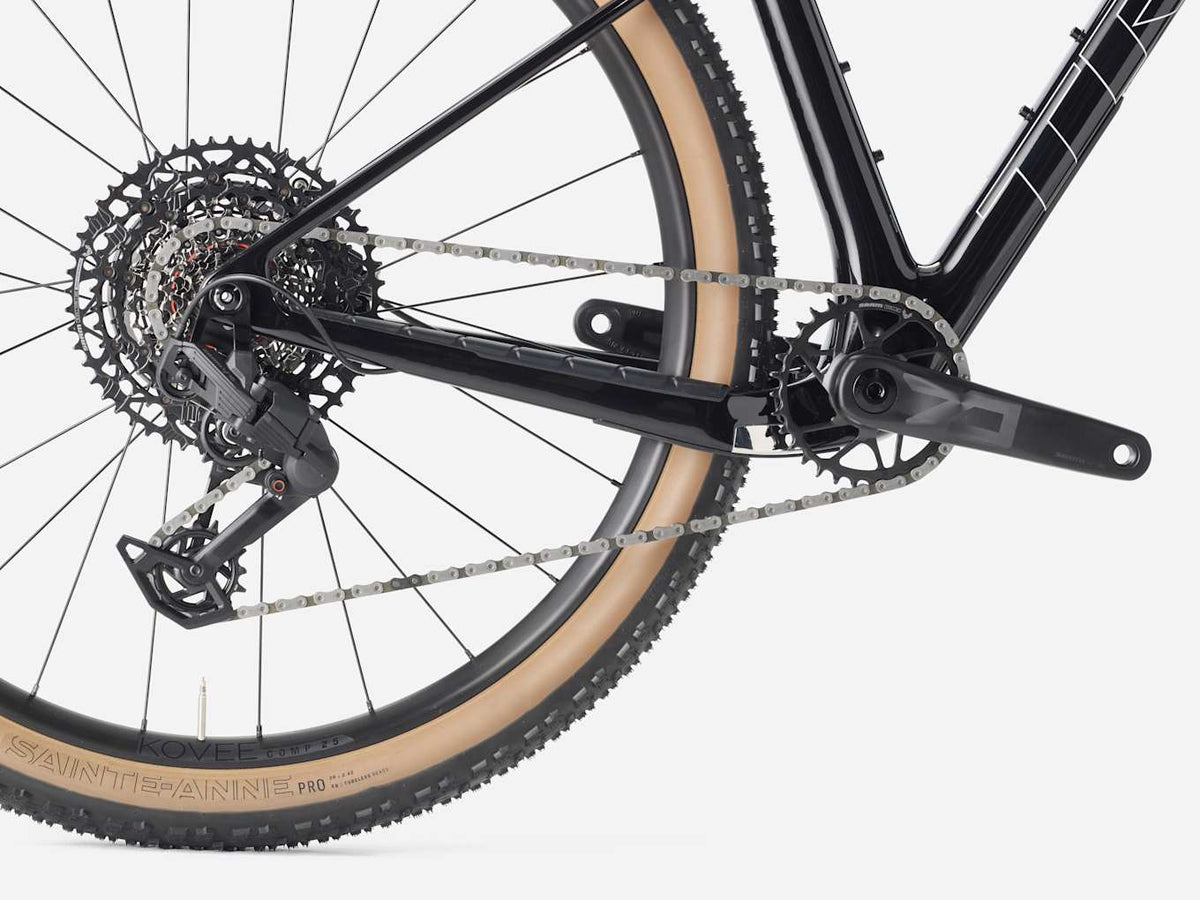

Drivetrain: SRAM Eagle 70 T-Type, 12-speed
Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.

Frame	OCLV Mountain Carbon
Fork	RockShox Reba RL, 120 mm
Wheels	Bontrager Kovee Comp
Tyres	Bontrager Sainte-Anne Pro XR
Drivetrain	SRAM Eagle 70 T-Type, 12-speed
Brakeset	SRAM DB 6

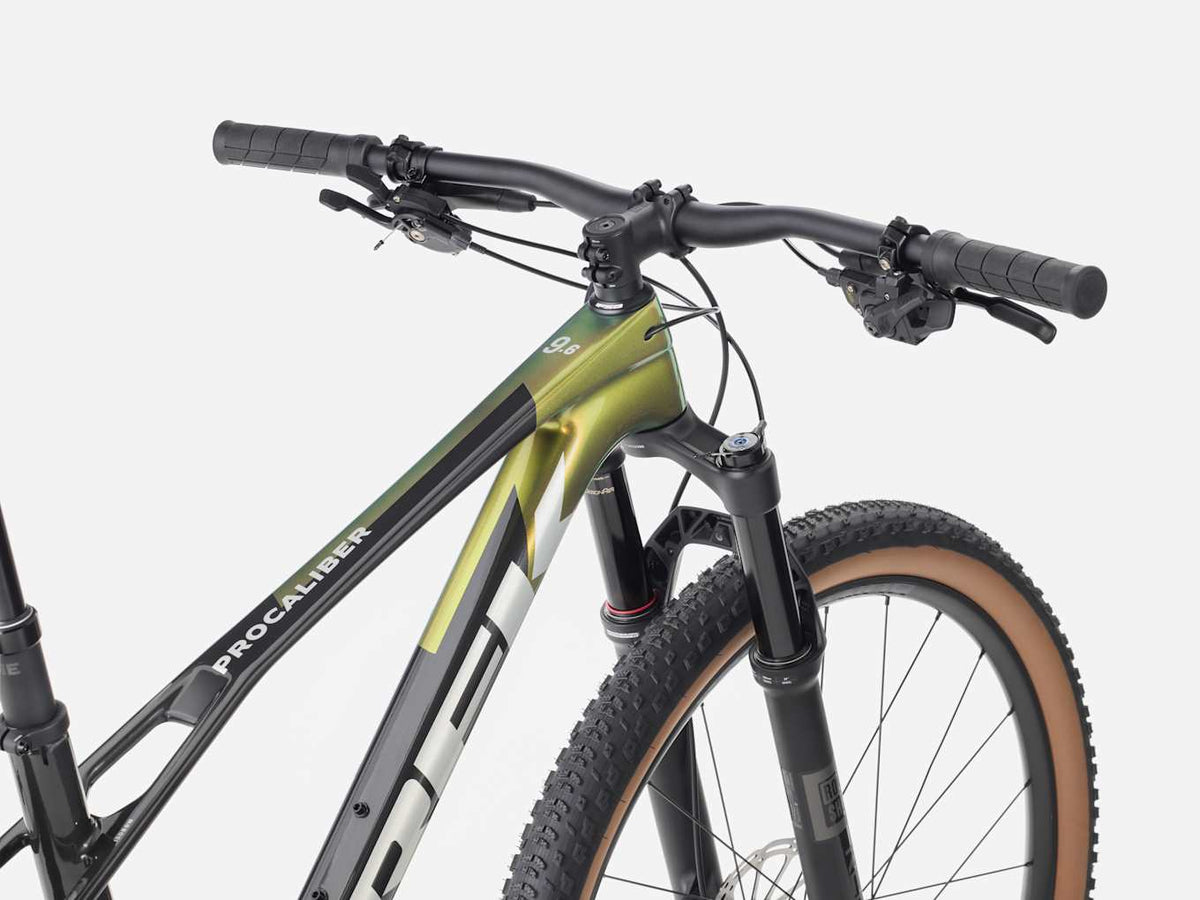

Handlebar	Bontrager Rhythm Comp, alloy
Weight	M - 11.83 kg / 26.09 lbs (with TLR sealant, no tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Component	Specification	Frame size(s)
Chain	SRAM Eagle 70, T-Type, 12-speed	S, M, ML, L
Head set	FSA IS-2, 1-1/8" top, 1.5" bottom	S, M, ML, L

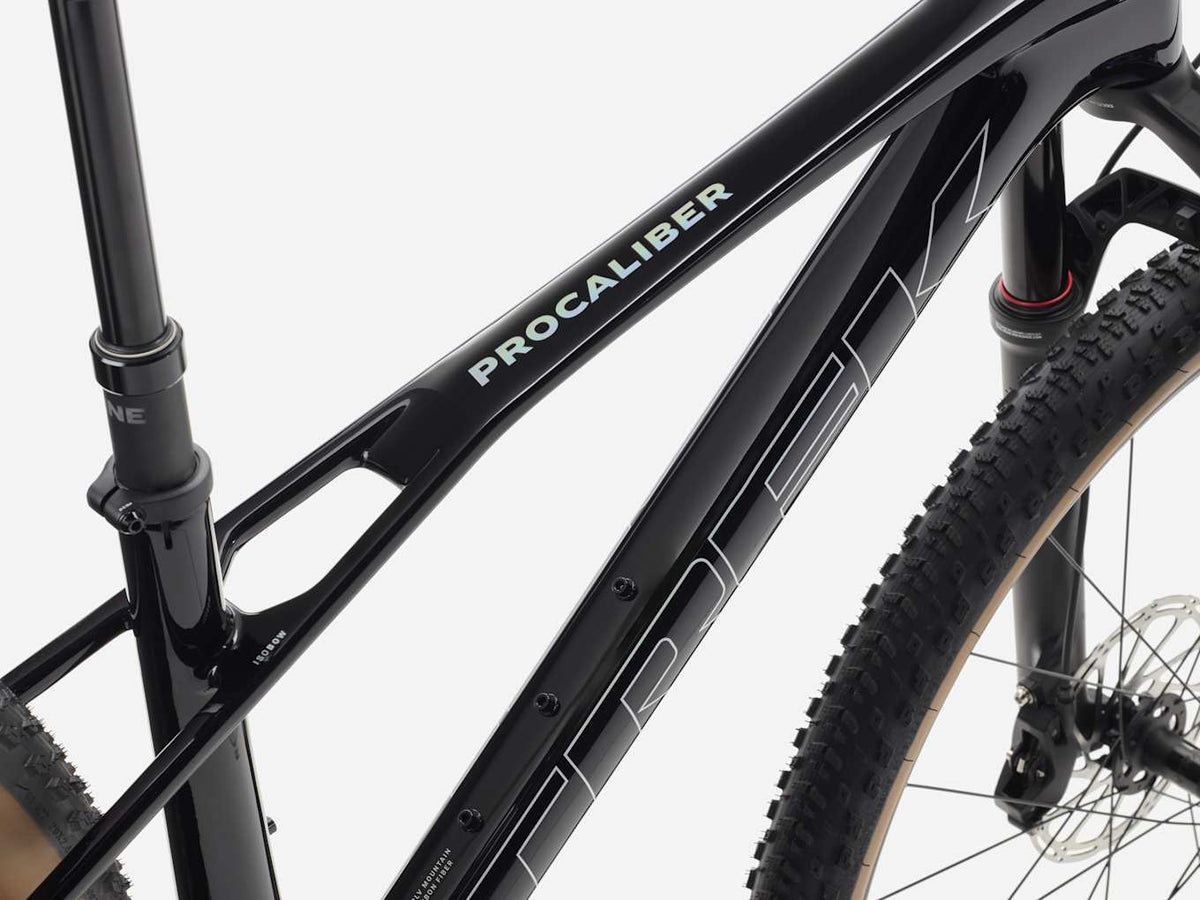

Frame	OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148	S, M, ML, L
Fork	RockShox Reba RL, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel	S, M, ML, L
Headset part (see also: Bearing)	1-1/8'' threadless, sealed cartridge bearings	S, M, ML, L
Crank	Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 170 mm length	S, M, ML
Crank	Sram Eagle 70, T-Type, DUB, 32T, 55 mm chainline, 175 mm length	L
Stem	Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length	S
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length	M, ML
Stem	Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length	L
Handlebar	Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width	S
Handlebar	Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width	M, ML, L
Saddle	Verse Short Comp, steel rails, 145 mm width	S, M, ML, L
Rear derailleur	SRAM Eagle 70, T-Type	S, M, ML, L
Cassette	SRAM Eagle XS-1270, T-Type,10-52, 12-speed	S, M, ML, L
Bottom bracket	SRAM DUB, 92 mm, PressFit	S, M, ML, L
Seat collar	Bolt-on, 36.4 mm	S, M, ML, L
Valve	Bontrager TLR valve, 50mm	S, M, ML, L
Brake rotor	SRAM CentreLine, 6-bolt, round-edge, 180 mm	S, M, ML, L
Brake rotor	SRAM CenterLine, 6-bolt, round-edge, 160 mm	S, M, ML, L
Brake rotor	SRAM CenterLine 2.0, 6-bolt, 180 mm	S, M, ML, L
Shifter	SRAM Eagle 70, 12-speed	S, M, ML, L
Brake	SRAM DB 6 4-piston hydraulic disc	S, M, ML, L
Grips	Trek Line Comp, nylon lock-on	S, M, ML, L
Tool	Bontrager Switch thru axle, removable lever	S, M, ML, L
Skewer rear	Bontrager Switch thru axle, removable lever	S, M, ML, L
Wheel rear	Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"	S, M, ML, L
Tyre	Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"	S, M, ML, L
Seatpost	Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length	S
Seatpost	Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length	M, ML, L
Tyre part	Bontrager TLR sealant, 180 ml/6 oz	S, M, ML, L
Wheel front	Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"	S, M, ML, L
Suspension part	Bontrager Drop Lock remote	S, M, ML, L
Rim strip	Bontrager TLR	S, M, ML, L

Size	Rider height	Inseam
S	5'1" - 5'5" / 155 - 165 cm	29" - 31" / 74 - 78 cm
M	5'5" - 5'10" / 165 - 177 cm	31" - 33" / 79 - 83 cm
ML	5'8" - 5'11" / 173 - 180 cm	32" - 34" / 81 - 86 cm
L	5'10" - 6'2" / 177 - 188 cm	33" - 35" / 84 - 89 cm
XL	6'2" - 6'5" / 188 - 195 cm	35" - 36" / 89 - 91 cm

Trek Procaliber 9.6 Gen 3 geometry diagram

Measurement	S	M	ML	L
Wheel size	29"	29"	29"	29"
A Seat tube	39.0	42.0	44.0	46.0
B Seat tube angle	71.0°	71.5°	72.0°	72.5°
Effective seat tube angle	74.3°	74.3°	74.3°	74.3°
C Head tube length	9.0	9.0	9.0	9.0
D Head tube angle	67.0°	67.0°	67.0°	67.0°
E Top tube effective	57.7	59.8	61.3	62.8
F BB height	30.9	30.9	30.9	30.9
G BB drop	6.4	6.4	6.4	6.4
H Chainstay	43.0	43.0	43.5	43.5
I Fork offset	4.3	4.3	4.3	4.3
K Wheelbase	111.0	113.5	115.5	117.1
L Standover	74.7	74.9	75.8	76.3
M Reach	40.5	43.0	44.5	46.0
N Stack	61.4	61.4	61.4	61.4
