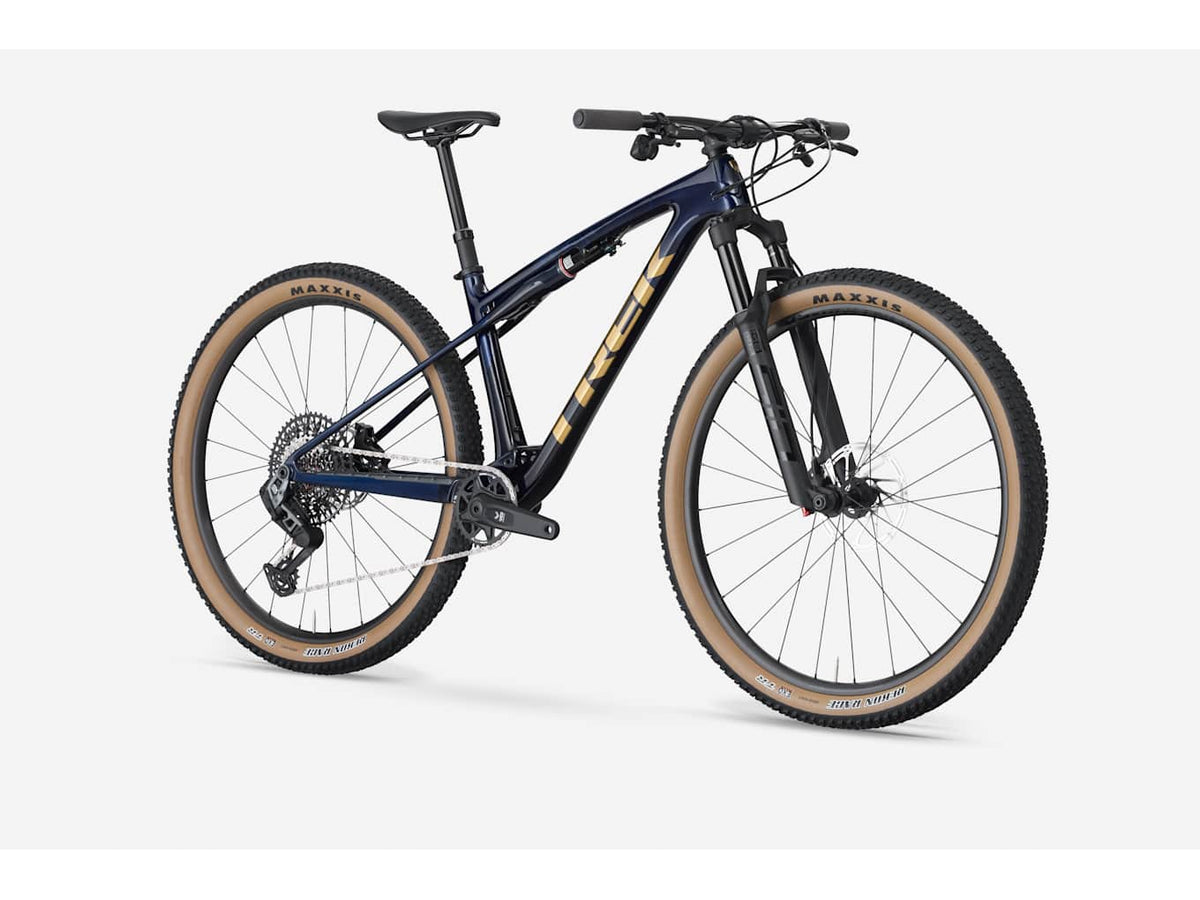

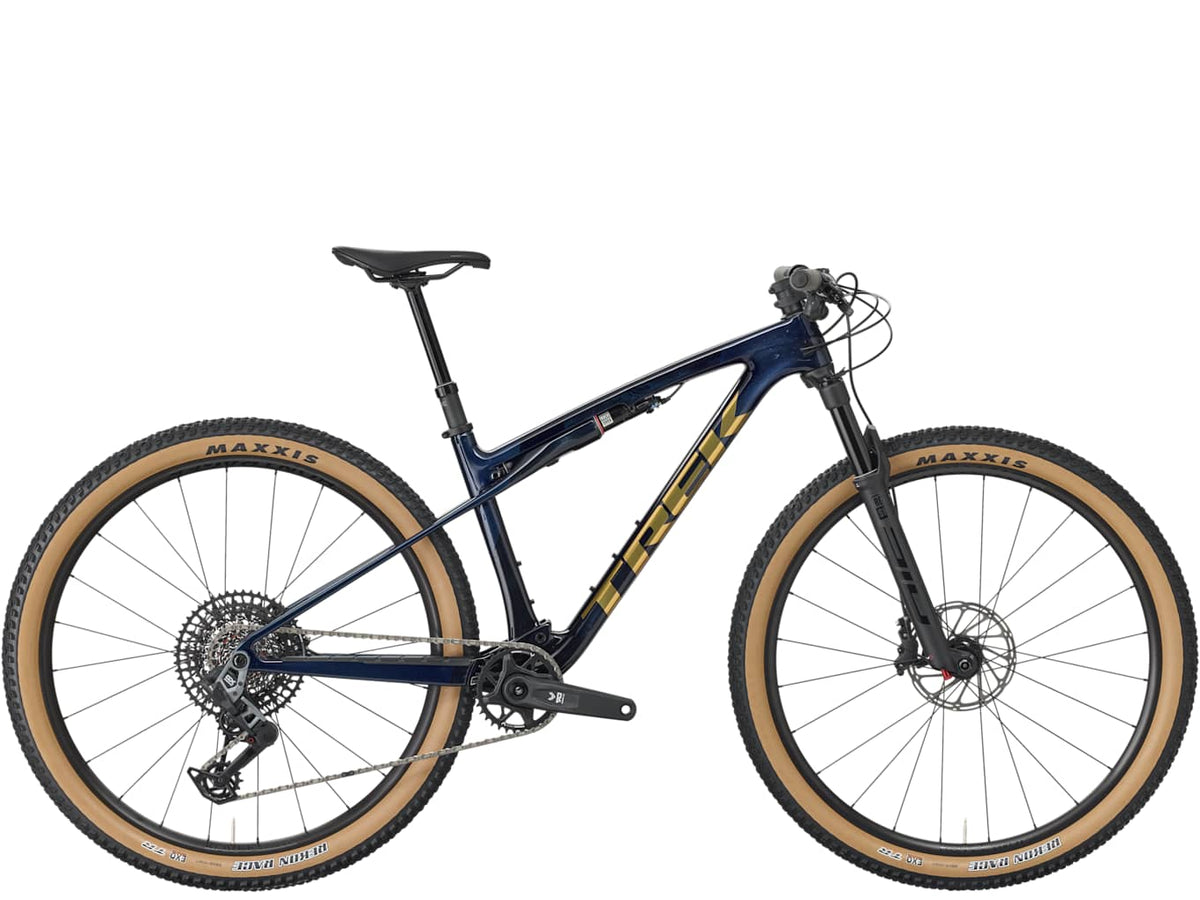

Trek Supercaliber SL 9.7 GX AXS Gen 2
Trek Supercaliber SL 9.7 GX AXS Gen 2 is a mountain bike tuned for cross-country trails, efficient climbing and confident singletrack handling. The platform is built around a SL OCLV Mountain Carbo...
Hurry up! Only 0 item(s) items left in stock
Regular price
Rs. 545,199.00 INR
Couldn't load pickup availability
- Sku: 5336246
- Available: Instock
- Collections: Bikes, Cross Country Mountain Bikes, Mountain Bikes, New Arrivals, Trek
- Type: Mountain Bike
Estimate delivery times: 3-5 days International.
Use code 'WELCOME15' for discount 15% on your first order.
Free shipping and returns: On all orders over $150.
Guarantee Safe Checkout:
Pairs well with
Trek Supercaliber SL 9.7 GX AXS Gen 2 is made for rides where you want a dependable mountain bike. It gives you a ready bike setup, so you can compare the frame, parts and size before you buy.
The main details to look at are Frame: SL OCLV Mountain Carbon, 80 mm, Fork: RockShox SID, 110 mm, and Wheels: Bontrager Kovee Comp 25. These points help you quickly decide if this is the right choice for your bike, your fit, or the way you ride.
Key features
- Good for: rides where you want a dependable mountain bike
- Brand: Trek
- Category: Mountain Bikes
- Frame: SL OCLV Mountain Carbon, 80 mm
- Fork: RockShox SID, 110 mm
- Wheels: Bontrager Kovee Comp 25
- Tyres: Maxxis Rekon Race, 2.4
- Drivetrain: SRAM GX AXS, 12-speed
- Check before buying: Check the frame size, wheel size and parts list to make sure it matches your height and riding style.
| Frame | SL OCLV Mountain Carbon, 80 mm |
|---|---|
| Fork | RockShox SID, 110 mm |
| Wheels | Bontrager Kovee Comp 25 |
| Tyres | Maxxis Rekon Race, 2.4˝ |
| Drivetrain | SRAM GX AXS, 12-speed |
| Brakeset | SRAM Motive Bronze |
| Handlebar | Bontrager Line Pro OCLV Carbon |
| Weight | M - 12.18 kg / 26.86 lbs (with TLR sealant, no tubes) |
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Component | Specification | Frame size(s) |
|---|---|---|
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper | S, M, ML |
| Chain | SRAM GX Eagle, T-Type, 12-speed | S, M, ML |
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom | S, M, ML |
| Fork | RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel | S, M, ML |
| Headset part (see also: Bearing) | 1-1/8'' threadless, sealed cartridge bearings | S, M, ML |
| Crank | Sram Eagle 90, T-Type, DUB, 34T, 55 mm chainline, 170 mm length | S, M, ML |
| Stem | Bontrager Elite, 35 mm, 13-degree, 60 mm length | S, M |
| Stem | Bontrager Elite, 35 mm, 13-degree, 70 mm length | ML |
| Handlebar | Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width | S |
| Handlebar | Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width | M, ML |
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width | S, M, ML |
| Fork part | RockShox TwistLoc Ultimate | S, M, ML |
| Rear derailleur | SRAM GX Eagle AXS, T-Type | S, M, ML |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed | S, M, ML |
| Bottom bracket | SRAM DUB, 92 mm, PressFit | S, M, ML |
| Seatpost part | Bontrager Line Dropper stealth remote, alloy | S, M, ML |
| Battery | SRAM AXS battery pack (with charger) | S, M, ML |
| Seat collar | Bolt-on, 36.4 mm | S, M, ML |
| Valve | Bontrager TLR valve, 50mm | S, M, ML |
| Brake rotor | SRAM CentreLine, 6-bolt, round-edge, 180 mm | S, M, ML |
| Brake rotor | SRAM CenterLine, 6-bolt, round-edge, 160 mm | S, M, ML |
| Shifter | SRAM AXS pod | S, M, ML |
| Brake | SRAM Motive Bronze Stealth 4-Piston hydraulic disc | S, M, ML |
| Tool | Bontrager Switch thru axle, removable lever | S, M, ML |
| Skewer rear | Bontrager Switch thru axle, removable lever | S, M, ML |
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel | S, M, ML |
| Wheel rear | Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29" | S, M, ML |
| Tyre | Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.40" | S, M, ML |
| Seatpost | Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length | S |
| Seatpost | Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length | M, ML |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz | S, M, ML |
| Wheel front | Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" | S, M, ML |
| Rim strip | Bontrager TLR | S, M, ML |
| Size | Rider height | Inseam |
|---|---|---|
| S | 5'1" - 5'5" / 155 - 165 cm | 29" - 31" / 74 - 78 cm |
| M | 5'5" - 5'10" / 165 - 177 cm | 31" - 33" / 79 - 83 cm |
| ML | 5'8" - 5'11" / 173 - 180 cm | 32" - 34" / 81 - 86 cm |
| L | 5'10" - 6'2" / 177 - 188 cm | 33" - 35" / 84 - 89 cm |
| XL | 6'2" - 6'5" / 188 - 195 cm | 35" - 36" / 89 - 91 cm |
| Measurement | S | M | ML |
|---|---|---|---|
| Wheel size | 29" | 29" | 29" |
| A Seat tube | 39.5 | 42.0 | 44.0 |
| B Seat tube angle | 70.5° | 71.0° | 71.0° |
| Effective seat tube angle | 74.5° | 74.5° | 74.5° |
| C Head tube length | 9.0 | 9.0 | 9.0 |
| D Head tube angle | 67.5° | 67.5° | 67.5° |
| E Top tube effective | 57.1 | 59.2 | 60.5 |
| F BB height | 32.7 | 32.7 | 32.7 |
| G BB drop | 4.6 | 4.6 | 4.6 |
| H Chainstay | 43.5 | 43.5 | 43.5 |
| I Fork offset | 4.3 | 4.3 | 4.3 |
| J Trail | 10.9 | 10.9 | 10.9 |
| K Wheelbase | 111.3 | 113.8 | 115.3 |
| L Standover | 76.0 | 77.2 | 77.2 |
| M Reach | 41.0 | 43.5 | 45.0 |
| N Stack | 59.0 | 59.0 | 59.0 |
| Front center | 68.2 | 70.7 | 72.2 |
